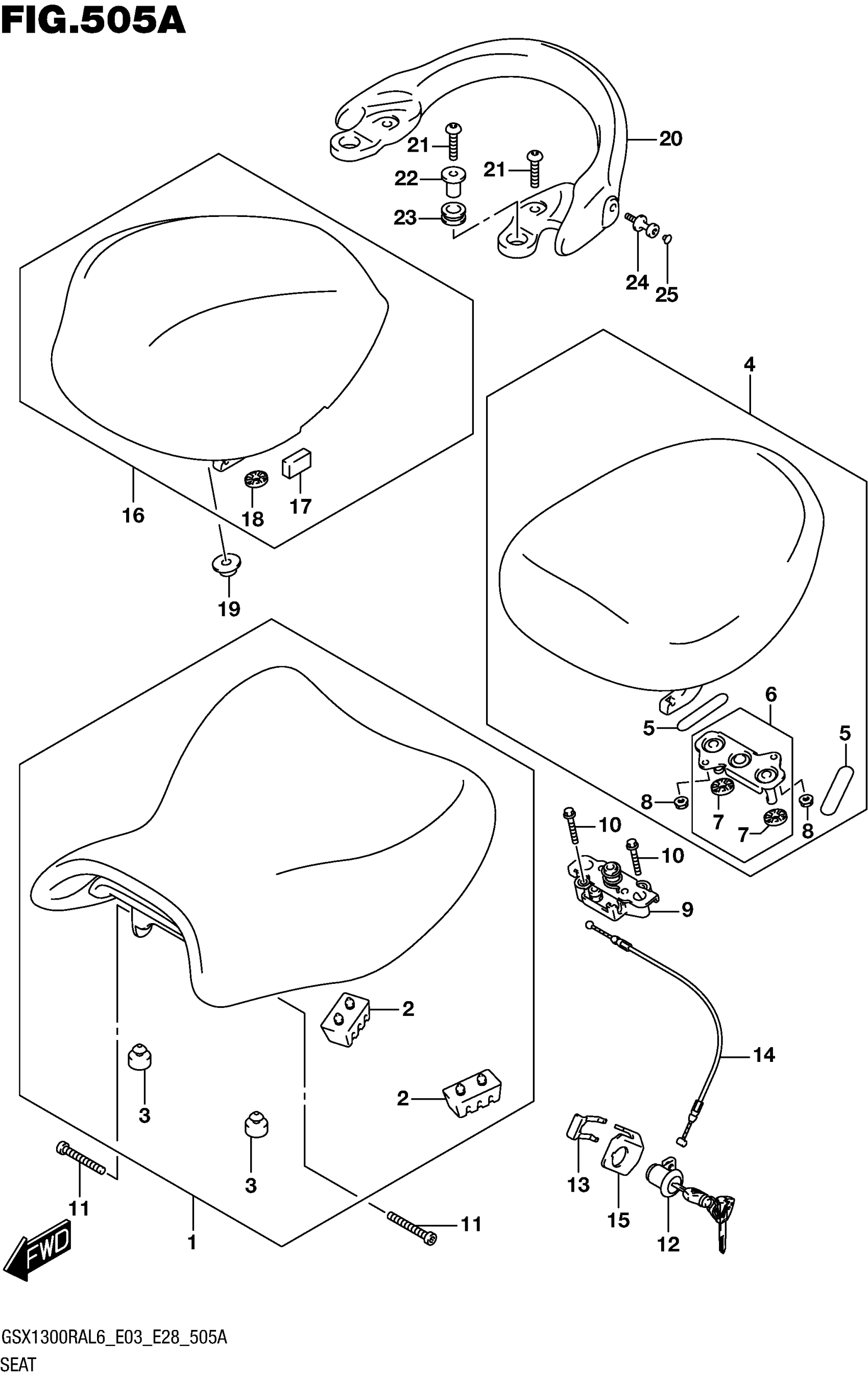

Suzuki GSX1300RAL6 (2016) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-15H01-EJY.

45100-15H03-EJY

$315.58

2

.CUSHION

45149-45330

$3.56

3

.CUSHION

09321-10011

$2.80

4

SEAT ASSY,PILLI This part replaces 45300-15H11-U6H.

45300-15H12-U6H

$237.35

5

.CUSHION

45149-15H10

$5.95

6

.STRIKER, SEAT LOCK

45290-15H00

$58.95

7

..CUSHION

45213-42F00

$6.32

8

.NUT

08316-1006A

$2.19

9

BRACKET, SEAT SUPPORT

45220-15H00

$161.37

10

BOLT

01547-0630A

$2.31

11

BOLT,SEAT FR

45191-15H00

$6.94

12

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$98.21

13

PLATE, SEAT LOCK

45289-11F00

$5.67

14

CABLE, SEAT LOCK

45280-18G01

$19.28

15

GUIDE, CABLE

45288-14F20

$10.25

16-1

BOX, SEAT TAIL (BLACK) | FOR AA3

45550-15H01-YVB

$354.43

16-2

BOX, SEAT TAIL (WHITE) | FOR ARA

45550-15H01-RB5

$309.95

16-3

BOX, SEAT TAIL (RED) | FOR A9Z

45550-15H01-YYG

$313.50

17

.CUSHION

45553-15H00

$10.98

18

.CUSHION

45213-42F00

$6.32

19

.WASHER,FRAME COVER

47190-24F01

$11.20

20-1

HANDLE, PILLION RIDER (BLACK) | FOR AA3

46211-15H01-YVB

$386.42

20-2

HANDLE, PILLION RIDER (WHITE) | FOR ARA

46211-15H01-RB5

Unavailable

20-3

HANDLE, PILLION RIDER (RED) | FOR A9Z

46211-15H01-YYG

$386.42

21

BOLT (8X33)

09106-08137

$5.42

22

WASHER, PILLION RIDER HANDLE

47190-24F11

$13.27

23

CUSHION, PILLION RIDER HANDLE

46217-24F00

$5.35

24

HOOK, HANDLE

46212-24F11

$30.47

25

CAP (OD:10)

09250-05009

$2.10

26

COLOR :

SPECIAL NOTE

Unavailable

26

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable

26

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

Unavailable

26

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

Unavailable
