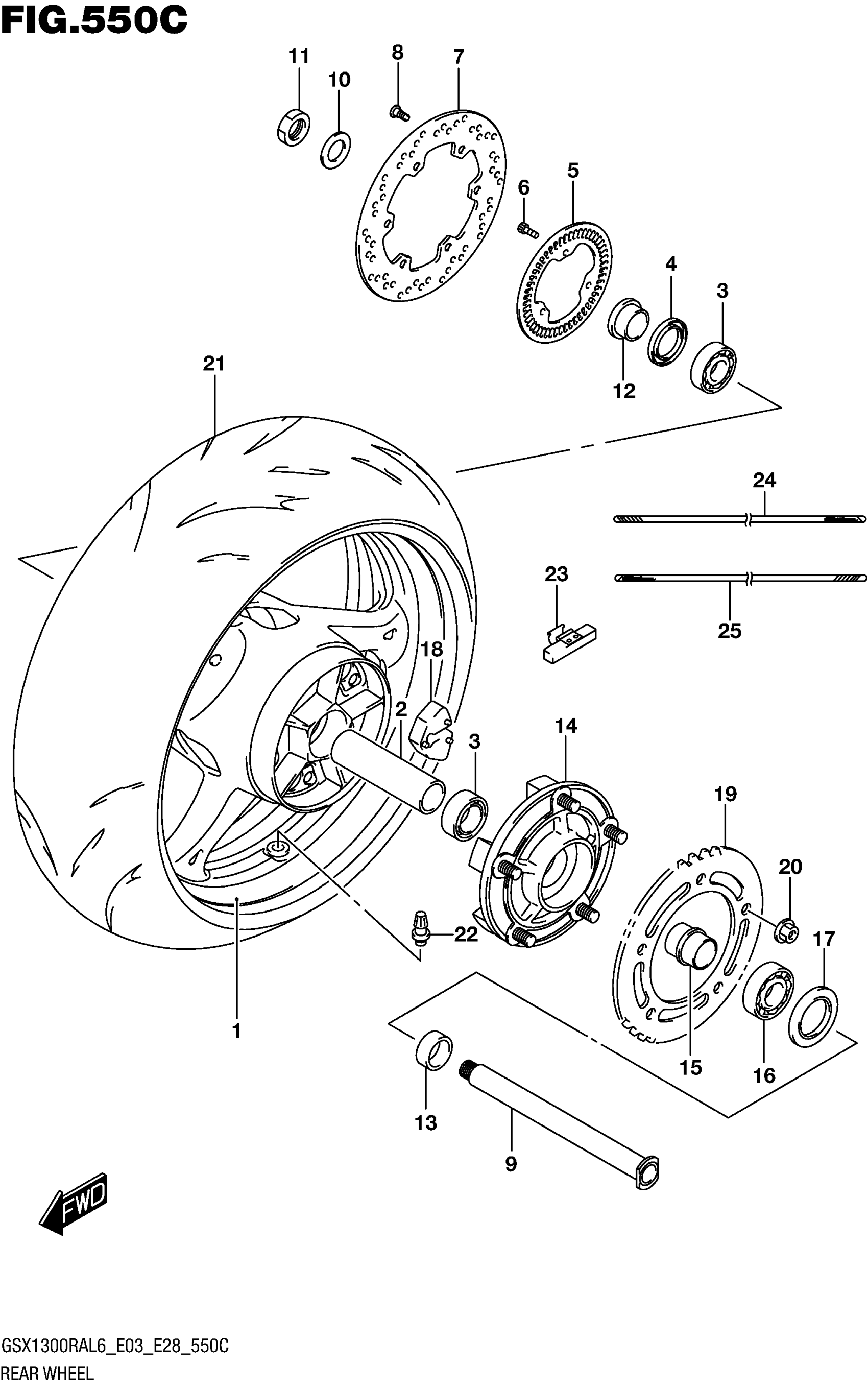

Suzuki GSX1300RAL6 (2016) REAR WHEEL (GSX1300RAL6 E33) Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT6.00) This part replaces 64111-15H10-019.

64111-15H11-019

$1,156.62

1

WHEEL, REAR (17M/CXMT6.00) This part replaces 64111-15H10-019.

64111-15H11-019

$1,156.62

2

SPACER, HUB BEARING

64731-40F10

$59.62

3

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$26.38

4

SEAL,OIL (37X52X8) | RH This part replaces 09284-37001.

09284-37002

$7.85

5

RING, SPEED SENSOR (60T)

64162-23H00

$37.08

6

BOLT

07130-0512A

$2.19

7

DISC, REAR BRAKE

69211-15H00

$283.60

8

BOLT (8X21)

09106-08160

$3.57

9

AXLE,RR

64711-33E20

$155.98

10

WASHER (25.2X42X3.2)

09160-25070

$4.77

11

NUT

09159-25003

$31.85

12

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

13

SPACER, AXLE LH

64751-49G00

$32.43

14

DRUM,RR SPROCKET

64610-35F30

$327.08

15

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

16

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

17

OIL SEAL (39X65X7)

09285-39001

$10.62

18

ABSORBER, HUB SHOCK

64651-35F20

$21.27

19

SPROCKET,RR (NT:43)

64511-15H00

$135.45

20

NUT

08319-3110A

$2.73

21

TIRE COMP,REAR | BRIDGESTONE This part replaces 65110-24F50.

65110-24F71

$539.75

21

TIRE COMP,REAR This part replaces 65110-24F50.

65110-24F71

$539.75

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER, WHEEL NO.1 (10G) | 10G

55411-22H00

$8.60

23-2

BALANCER, WHEEL NO.2 (20G) | 20G

55412-22H00

$10.07

23-3

BALANCER, WHEEL NO.3 (30G) | 30G

55413-22H00

$11.47

24-1

TAPE, WHEEL REAR RH | FOR AA3

68251-15H00-AWZ

Unavailable

24-1

(BLACK/RED

68251-15H00-AWZ

Unavailable

24-2

TAPE, WHEEL REAR RH | FOR ARA,A9Z

68251-15H00-GYR

Unavailable

24-2

(BLACK/SILVER

68251-15H00-GYR

Unavailable

25-1

TAPE, WHEEL REAR LH | FOR AA3

68252-15H00-AWZ

Unavailable

25-1

(BLACK/RED

68252-15H00-AWZ

Unavailable

25-2

TAPE, WHEEL REAR LH | FOR ARA,A9Z

68252-15H00-GYR

$65.23

25-2

(BLACK/SILVER

68252-15H00-GYR

$65.23

26

COLOR :

SPECIAL NOTE

Unavailable

26

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable

26

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

Unavailable

26

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

Unavailable
