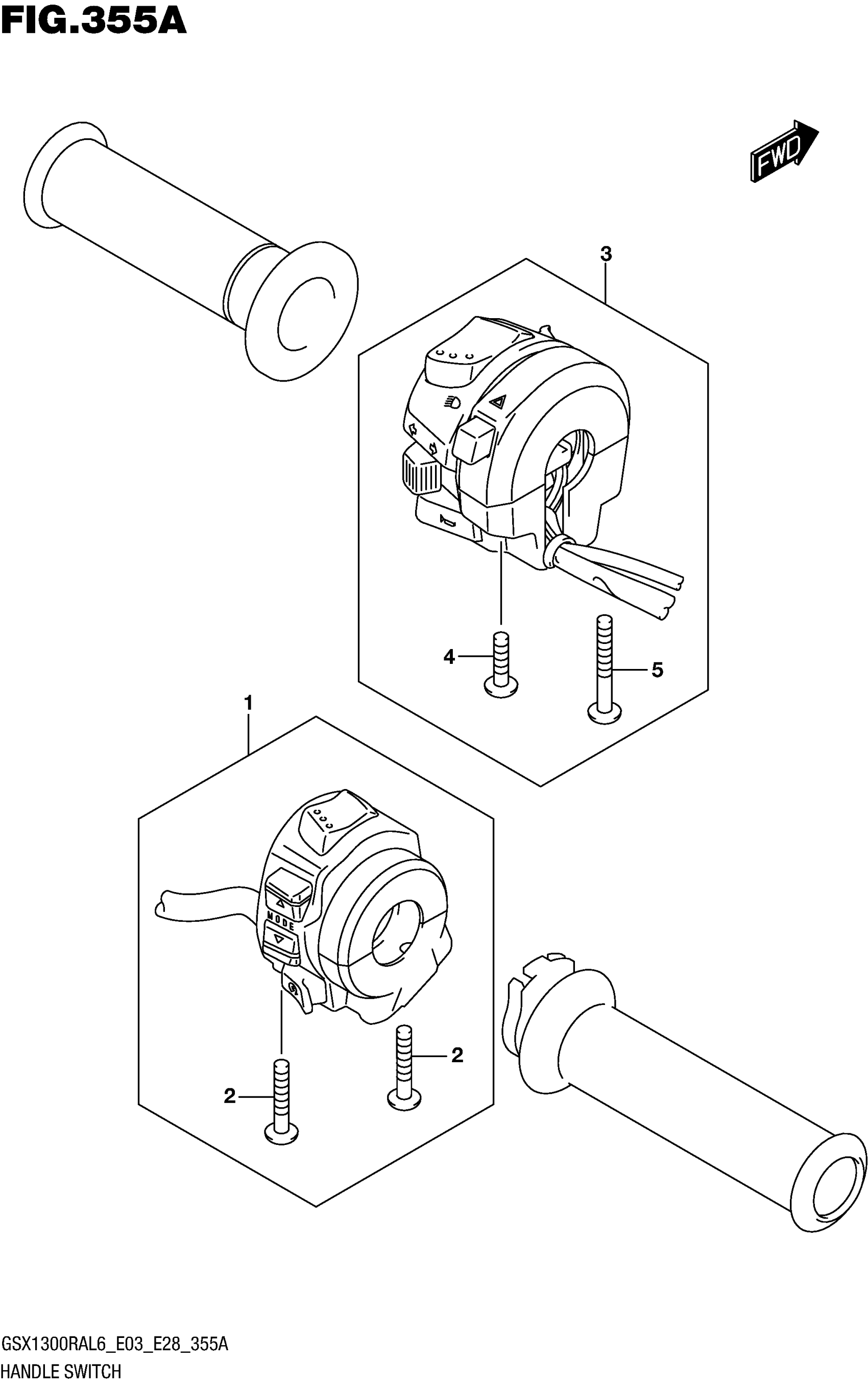

Suzuki GSX1300RAL6 (2016) HANDLE SWITCH (GSX1300RAL6 E03) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE, RH

37200-15H10

$235.47

2

.SCREW

02112-0530B

$1.49

3

SWITCH ASSY, HANDLE, LH This part replaces 37400-18H12.

37400-18H13

$196.85

4

.SCREW

02112-0525B

$1.84

5

.SCREW

02112-0545B

$2.26
