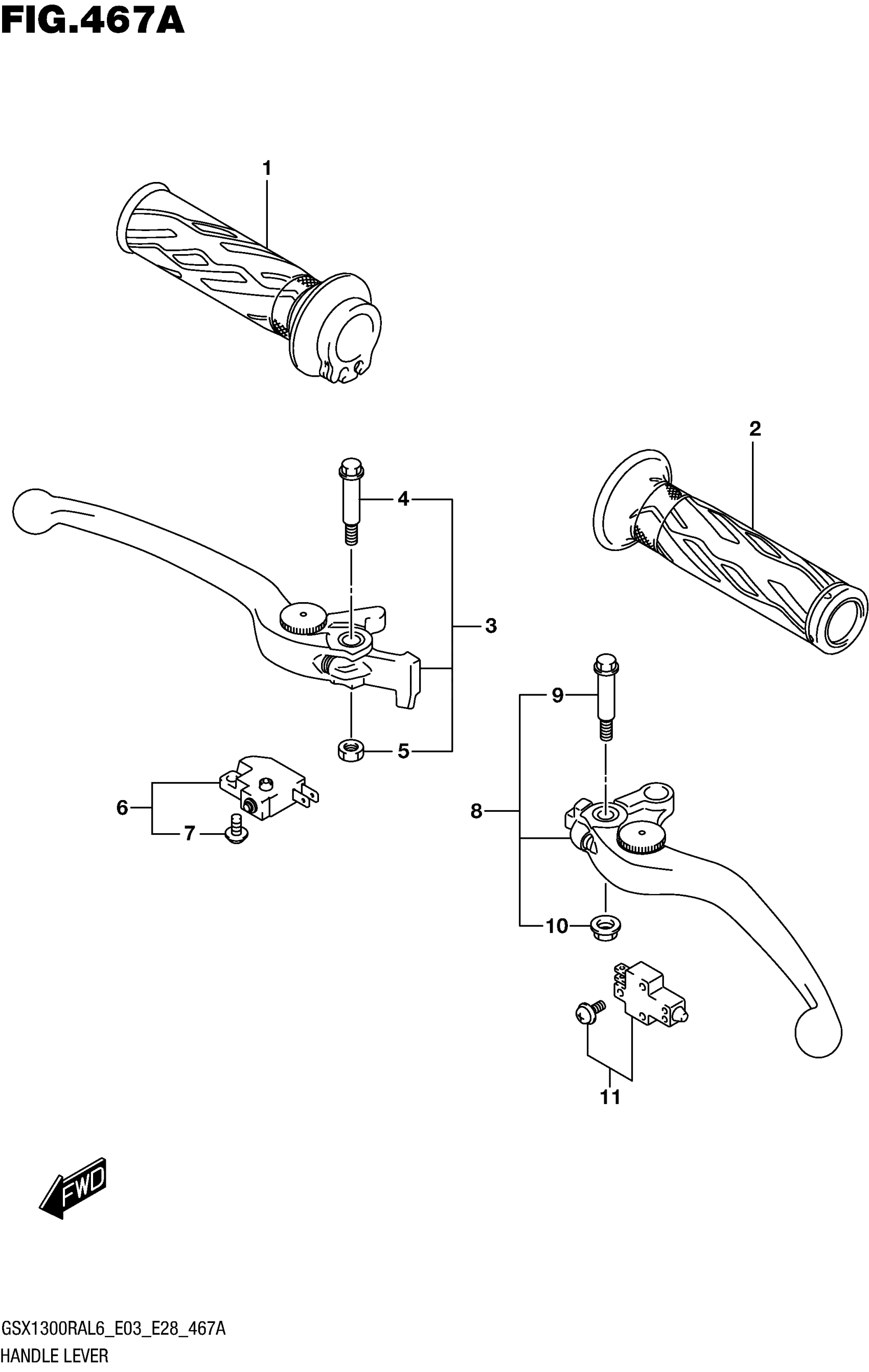

Suzuki GSX1300RAL6 (2016) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

GRIP LH

57211-21H01

$10.18

3

LEVER ASSY,BRAKE

57300-14G40

$102.77

4

.BOLT, LEVER PIVOT

57431-17H02

$6.72

5

.NUT

08319-2106A

$1.89

6

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

7

.SCREW

57465-17C00

$2.37

8

LEVER ASSY, CLUTCH

57500-24F40

$68.12

9

.BOLT, LEVER PIVOT

57431-17H02

$6.72

10

.NUT

08316-1006B

$2.50

11

SWITCH ASSY,CLUTCH

57560-02FA0

$21.58
