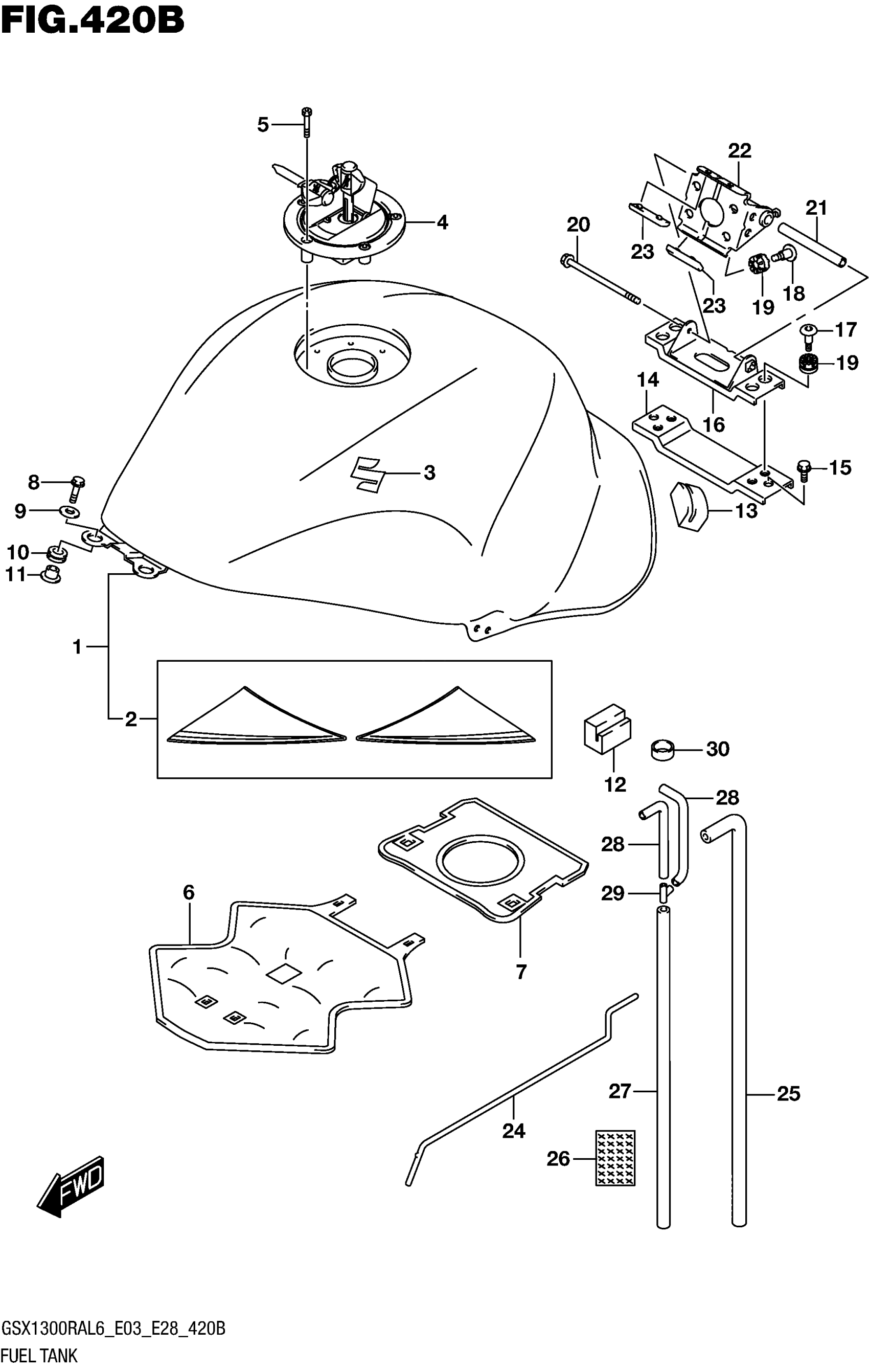

Suzuki GSX1300RAL6 (2016) FUEL TANK (GSX1300RAL6 E28) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL( | FOR AA3 This part replaces 44100-15HF0-6UX.

44100-15HF1-6UX

$1,573.32

1-2

TANK ASSY, FUEL (WHITE) | FOR ARA

44100-15HF0-AQX

Unavailable

1-3

TANK ASSY, FUEL (RED) | FOR A9Z

44100-15HF0-YYG

Unavailable

2-1

.TAPE SET (GRAY/RED) | FOR 6UX

68110-15H40-AWS

Unavailable

2-2

.TAPE SET (SILVER/BLUE) | FOR AQX

68110-15H40-A96

Unavailable

2-3

.TAPE SET (SILVER/GRAY) | FOR YYG

68110-15H40-A97

$79.20

3

EMBLEM, "S"

68111-47HA0

$40.44

4

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

5

BOLT (5X20)

09106-05017

$2.83

6

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

$176.77

7

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$74.08

8

SCREW (6X30)

09139-06204

$5.43

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

11

SPACER

44512-16G00

$7.44

12

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

13

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.12

14

BRACKET, FUEL TANK REAR NO.3

44555-15H00

Unavailable

15

BOLT (8X16)

01550-0816A

$2.32

16

BRACKET, FUEL TANK REAR NO.2

44550-15H01

Unavailable

17

SCREW (6X22)

09139-06191

$4.03

18

SCREW (6X22)

09139-06191

$4.03

19

CUSHION

09320-08071

$3.25

20

BOLT

07120-0695B

$4.32

21

SPACER, FUEL TANK REAR

44561-18G00

$16.96

22

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

23

CUSHION, BRACKET

45149-44G00

Unavailable

24

STAY | OPT

44574-35F00

$15.16

25

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$22.32

26

SHIELD, DRAIN HOSE HEAT

44427-15H00

Unavailable

27

HOSE, BREATHER This part replaces 44424-15H00.

44424-15H01

$20.27

28

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

29

3 WAY

09367-06007

$3.46

30

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

31

COLOR :

SPECIAL NOTE

Unavailable

31

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable

31

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

Unavailable

31

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

Unavailable
