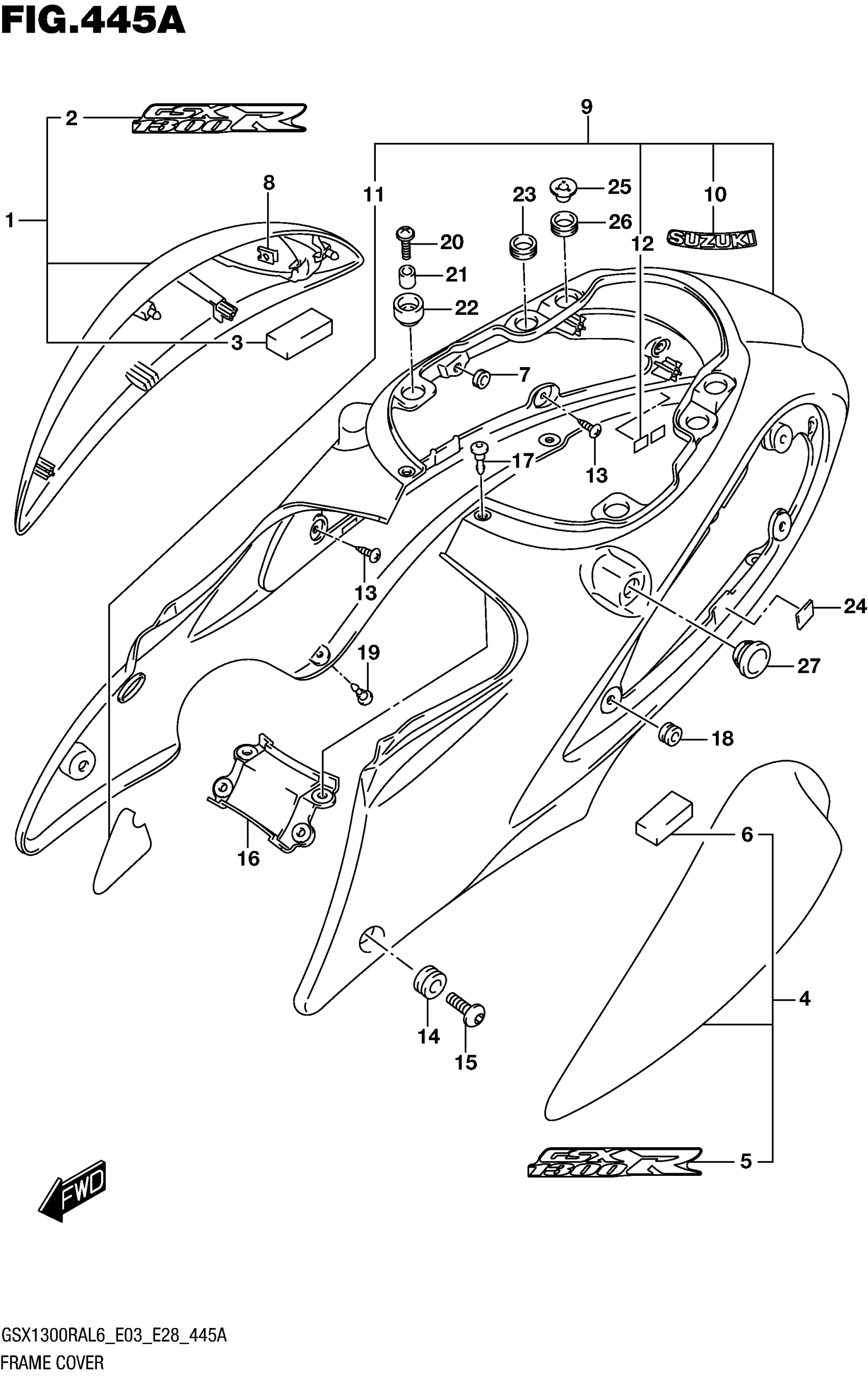

Suzuki GSX1300RAL6 (2016) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK) | FOR AA3

47110-15H30-6UX

$207.23

1-2

COVER, FRAME RH (WHITE) | FOR ARA

47110-15H30-AQX

Unavailable

1-3

COVER, FRAME RH (RED) | FOR A9Z

47110-15H30-YYG

$207.23

2-1

.EMBLEM, FRAME COVER | FOR 6UX

68131-15H10-A98

$13.83

2-1

(GRAY/RED

68131-15H10-A98

$13.83

2-2

.EMBLEM, FRAME COVER (GRAY) | FOR AQX,YYG

68131-15H10-CRT

$13.83

3

.CUSHION

47511-15H00

$3.71

4-1

COVER, FRAME LH (BLACK) | FOR AA3

47210-15H30-6UX

$207.23

4-2

COVER, FRAME LH (WHITE) | FOR ARA

47210-15H30-AQX

Unavailable

4-3

COVER, FRAME LH (RED) | FOR A9Z

47210-15H30-YYG

$207.23

5-1

.EMBLEM, FRAME COVER | FOR 6UX

68131-15H10-A98

$13.83

5-1

(GRAY/RED

68131-15H10-A98

$13.83

5-2

.EMBLEM, FRAME COVER (GRAY) | FOR AQX,YYG

68131-15H10-CRT

$13.83

6

.CUSHION

47511-15H00

$3.71

7

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

8

NUT This part replaces 09148-04034.

09148-04015

$2.36

9-1

COVER,FRAME CTR | FOR AA3 This part replaces 47310-15H20-YVB.

47310-15H21-YVB

$416.47

9-2

COVER, FRAME CENTER (WHITE) | FOR ARA

47310-15H20-RB5

Unavailable

9-3

COVER,FRAME CTR | FOR A9Z This part replaces 47310-15H20-YYG.

47310-15H21-YYG

$445.97

10

EMBLEM,"SUZUKI" This part replaces 68641-19F00-17U.

68641-19F01-17U

$9.15

11

.TAPE, CENTER

47312-15H00

$18.48

12

CUSHION

45516-01H00

$5.32

13

SCREW (5X15)

09136-05062

$2.19

14

CUSHION

09320-09016

$1.97

15

BOLT (6X20)

09139-06190

$4.17

16-1

LID, CENTER (BLACK) | FOR AA3

47411-15H00-YVB

Unavailable

16-2

LID, CENTER (WHITE) | FOR ARA

47411-15H00-RB5

Unavailable

16-3

LID, CENTER (RED) | FOR A9Z

47411-15H00-YYG

$50.25

17

CLIP (BLACK)

09409-06314-5PK

$2.78

18

CUSHION

09320-09016

$1.97

19

CLIP

09409-06329

$2.79

20

SCREW (6X20)

09136-06105

$1.97

21

SPACER (6.5X10X11)

09180-06288

$2.06

22

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.37

23

CUSHION, UPPER CENTER

47191-24F00

$5.17

24

CUSHION, LOWER

33651-37000

$4.48

25

WASHER,FRAME COVER

47190-24F21

$9.94

26

CUSHION, UPPER REAR

47191-24F30

$5.36

27

SPACER, SIDE CENTER

47191-24F20

$7.22

28

COLOR :

SPECIAL NOTE

Unavailable

28

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable

28

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

Unavailable

28

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

Unavailable
