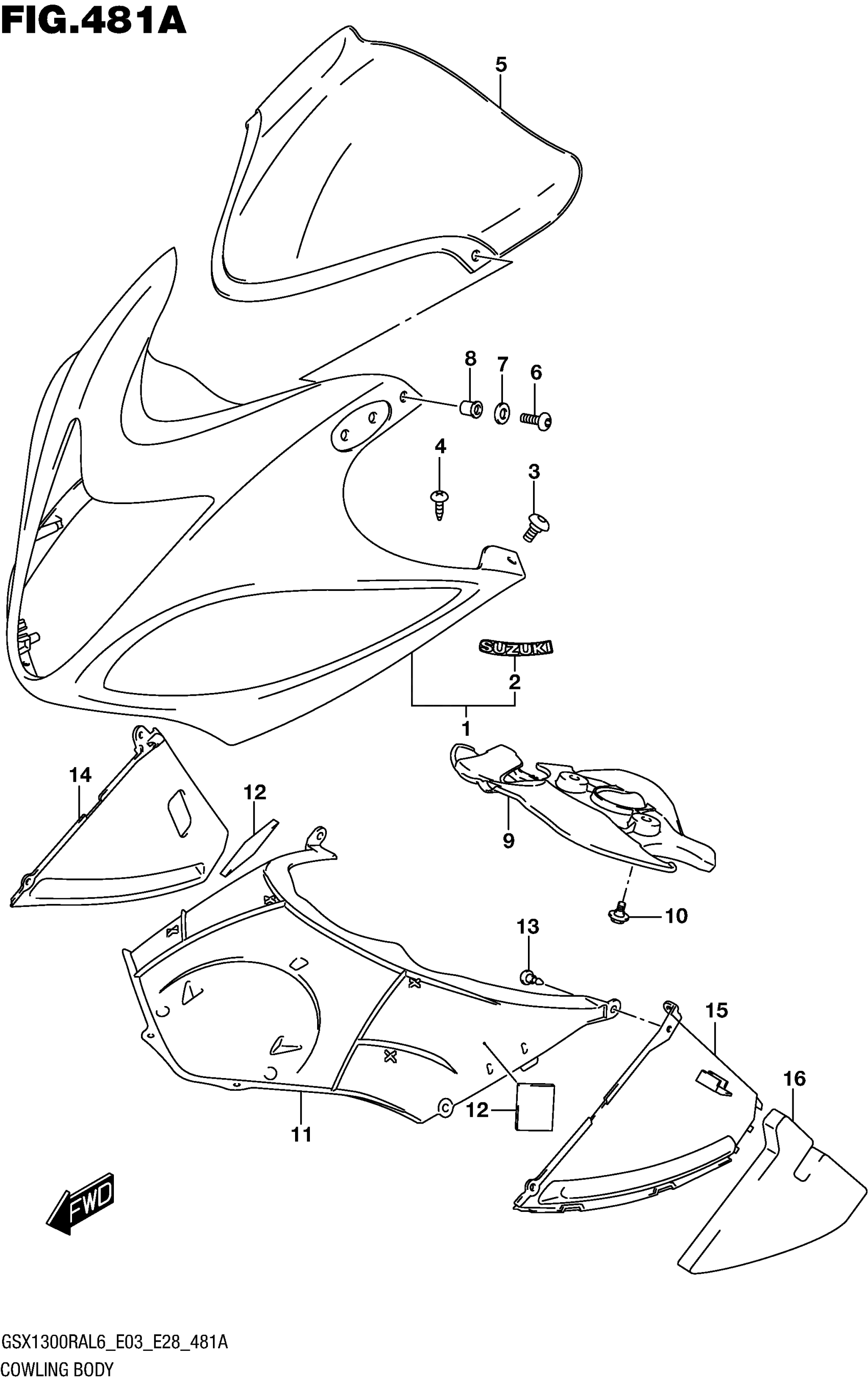

Suzuki GSX1300RAL6 (2016) COWLING BODY Diagram

#

Description
Price

1-1

COWLING ASSY,BO | FOR AA3 This part replaces 94401-15H60-YVB.

94401-15H62-YVB

$590.70

1-2

BODY, COWLING (WHITE) | FOR ARA

94401-15H60-RB5

Unavailable

1-3

COWLING ASSY,BO | FOR A9Z This part replaces 94401-15H60-YYG.

94401-15H62-YYG

$636.87

2

EMBLEM, "SUZUKI This part replaces 68281-24F10-17U.

68281-24F11-17U

$12.80

3

SCREW (5X16)

09139-05077

$3.25

4

SCREW

03541-0516A

$1.49

5

WINDSCREEN

94611-15H00

$292.52

6

SCREW (5X14)

09139-05025

$2.05

7

WASHER

08322-0105B

$2.26

8

NUT

09159-05019

$7.14

9

COVER,LWR BRACKET

94458-15H10

$17.43

10

BOLT (6X12)

09111-06107

$2.60

11

COVER, BODY COWL This part replaces 94419-15H01.

94419-15H02

$30.33

12

CUSHION, COVER

36930-60A10

$2.92

13

CLIP (BLACK)

09409-06314-5PK

$2.78

14

COWL, INNER RH

94461-15H00

$53.78

15

COWL, INNER LH

94462-15H00

$55.62

16

CUSHION, LH

94463-15H00

$41.27

17

COLOR :

SPECIAL NOTE

Unavailable

17

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

Unavailable

17

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

Unavailable

17

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

Unavailable
