2016 Suzuki GSX1300RAL6 AIR Intake Pipe Diagram

← All diagrams

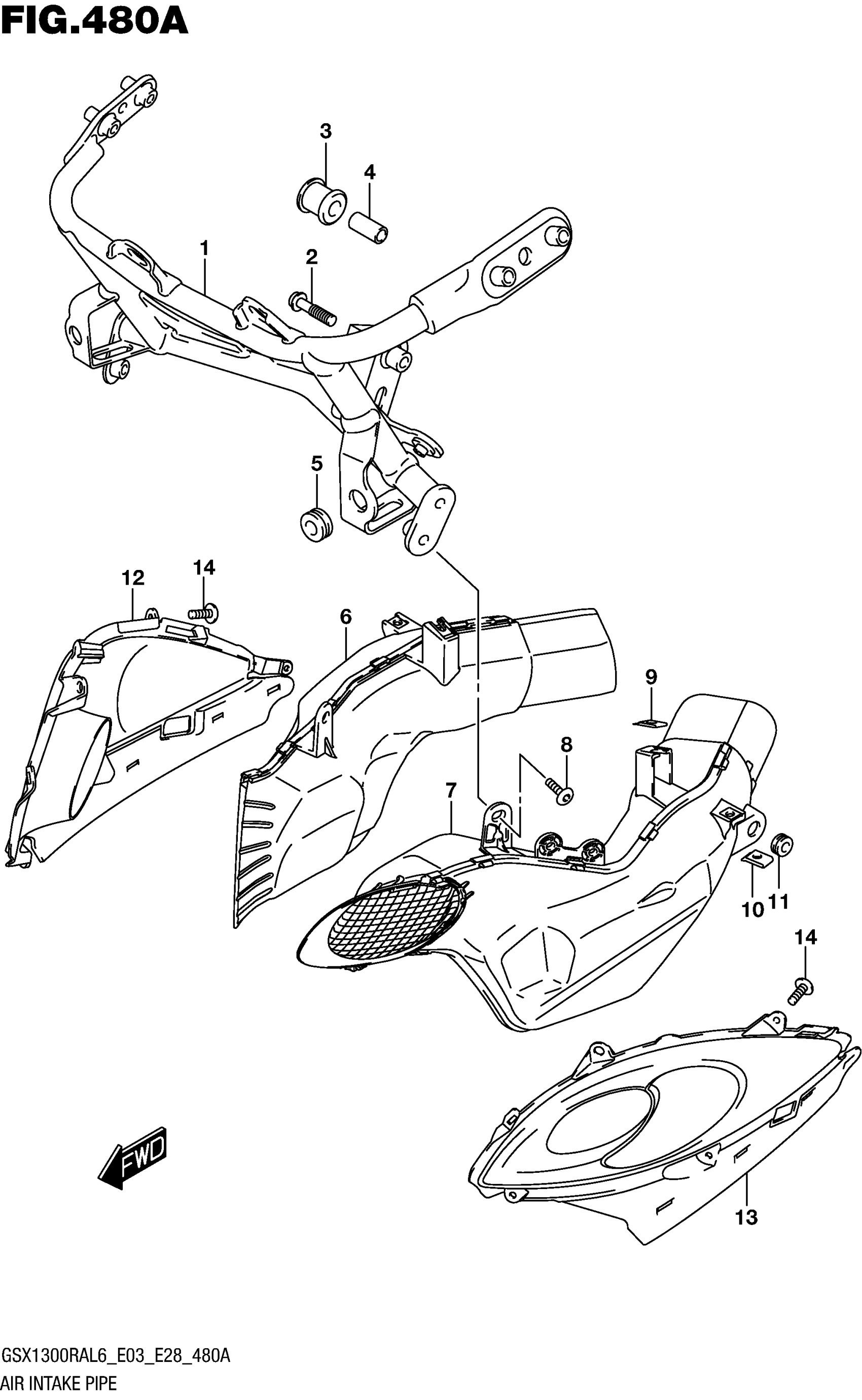

Find the part on the AIR Intake Pipe diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX1300RAL6 AIR Intake Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$484.68

In stock

2

BOLT (8X40)

09103-08367

2

$4.12

In stock

3

CUSHION, UPPER

94541-41C00

1

$5.32

In stock

4

1

$4.14

In stock

5

CUSHION

09320-08028

2
Out of stock

6

PIPE, INTAKE RH

94420-15H01

1

$156.30

In stock

7

PIPE, INTAKE LH

94430-15H01

1

$156.30

In stock

8

SCREW

94423-15H00

2

$6.57

In stock

9

NUT COWL

94484-24F00

2
Out of stock

10

NUT

09148-05038

2
Out of stock

11

CUSHION

09320-08028

2
Out of stock

12-1

1

$281.53

In stock

12-2

COVER, INTAKE RH (WHITE) | FOR ARA

94671-15H00-RB5

—
Out of stock

12-3

1

$281.53

In stock

13-1

1

$278.92

In stock

13-2

COVER, INTAKE LH (WHITE) | FOR ARA

94681-15H00-RB5

—
Out of stock

13-3

1

$278.92

In stock

14

SCREW

03541-0516A

8
Out of stock

15

COLOR :

SPECIAL NOTE

—
Out of stock

15

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

—
Out of stock

15

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

—
Out of stock

15

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

—
Out of stock
