2016 Suzuki GSX1300RAL6 AIR Cleaner Diagram

← All diagrams

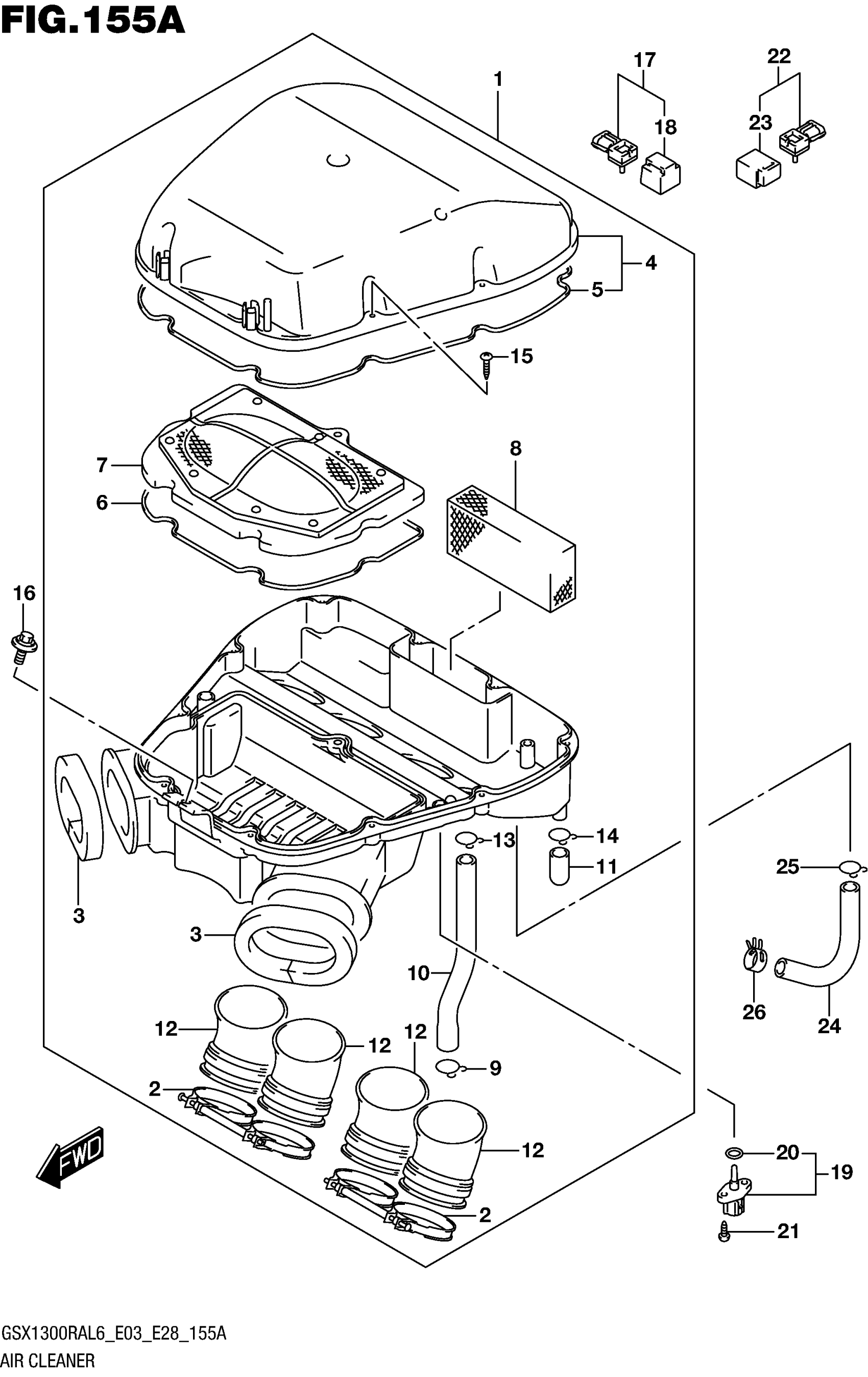

Find the part on the AIR Cleaner diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX1300RAL6 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-15H02

—
Out of stock

2

.CLAMP

13170-15H10

2

$27.78

In stock

3

.CUSHION, DUCT

13736-15H01

2

$10.09

In stock

4

.CAP, AIR CLEANER

13740-15H00

1
Out of stock

5

..GASKET, CAP

13746-15H00

1

$13.35

In stock

6

.GASKET, CASE

13756-15H00

1

$9.70

In stock

7

.FILTER ASSY

13780-15H00

1

$44.33

In stock

8

.FILTER, BREATHER

13788-15H00

1

$5.15

In stock

9

.CLIP

09401-16401

1

$3.10

In stock

10

1

$11.80

In stock

11

.PLUG

13859-41B10

1

$7.56

In stock

12

4

$27.37

In stock

13

.CLIP

09401-14101

1
Out of stock

14

.CLIP

09401-14101

1
Out of stock

15

.SCREW

03541-0525A

11

$2.16

In stock

16

BOLT (6X16)

09116-06130

1

$2.61

In stock

17

SENSOR,BOOST

15630-29G40

1

$342.38

In stock

18

.COVER

15625-29G40

1
Out of stock

19

1

$51.91

In stock

20

.O RING

13655-14G10

1

$11.18

In stock

21

SCREW

03511-0516A

2

$2.03

In stock

22

SENSOR, AIR PRESSURE

15630-29G30

1

$342.38

In stock

23

.COVER

15625-29G30

1
Out of stock

24

HOSE, ISC VALVE

13697-15H00

1
Out of stock

25

CLIP

09401-15101

1
Out of stock

26

CLIP

09401-16403

1
Out of stock
