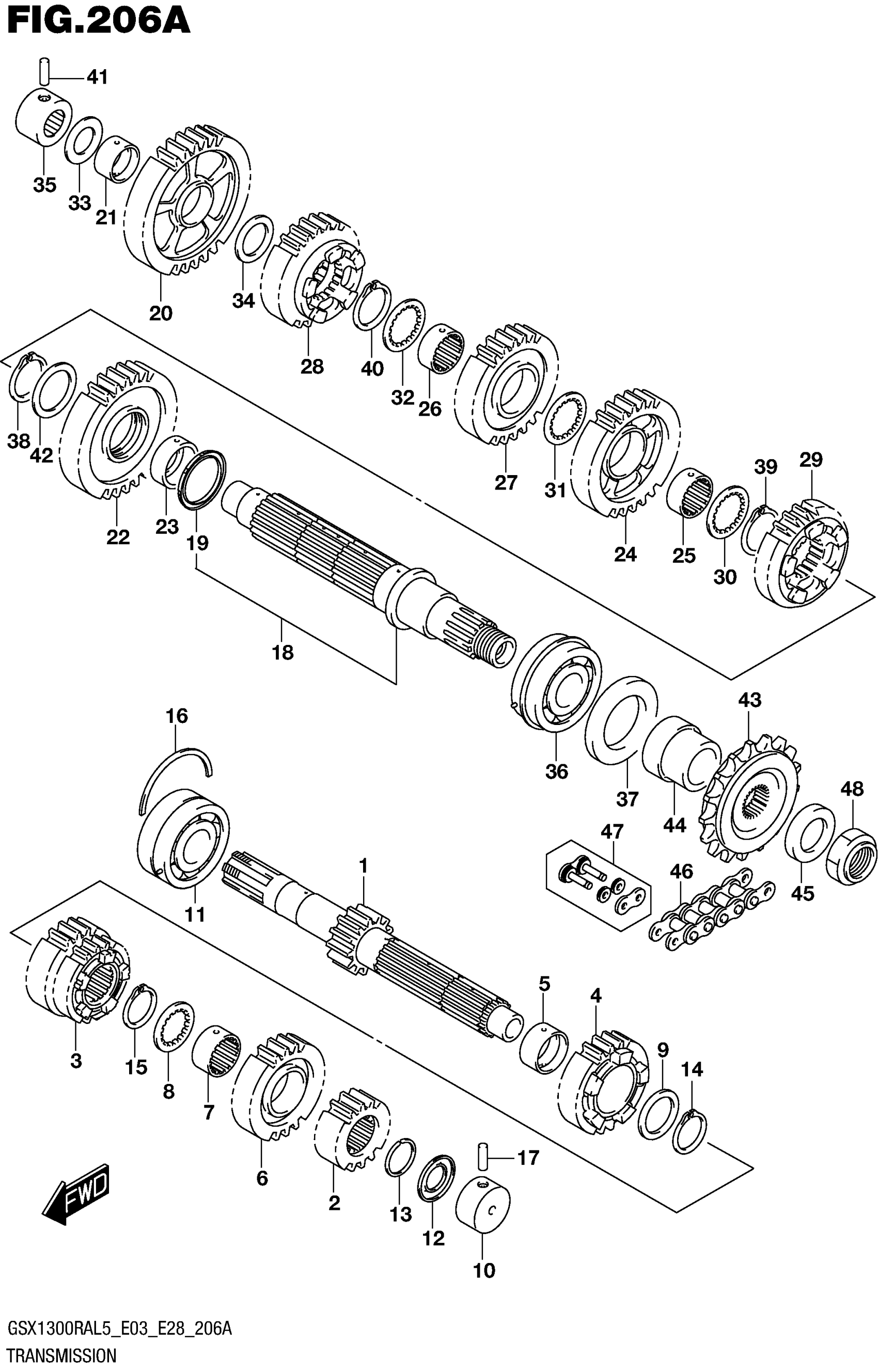

Suzuki GSX1300RAL5 (2015) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24120-24F00

$332.65

2

GEAR,2ND DRIVE (NT:16)

24221-15H00

$130.87

3

GEAR, 3RD & 4TH DRIVE (NT:19/21)

24231-15H00

$197.02

4

GEAR,5TH DRIVE (NT:22)

24251-15H01

$188.73

5

BUSH, 5TH DRIVE GEAR

24252-24F10

$35.47

6

GEAR, 6TH DRIVE (NT:23)

24261-15H00

$188.73

7

BUSH, 6TH DRIVE GEAR

24262-24F10

$35.47

8

LOCK WASHER

09167-27003

$6.80

9

SHIM (27X36X2.5)

09181-27014

$6.32

10

BEARING (20X34X17.5) | LH

09263-20085

$76.72

11

BEARING (25X62X25.4) | RH

09267-25012

$156.13

12

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP

09380-27004

$3.70

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27006

$2.73

16

C RING | RH

09390-62012

$7.31

17

PIN | LH

04221-07209

$2.30

18

SHAFT, DRIVE

24130-15H00

$303.38

19

RING, DRIVE SHAFT FRICTION

24136-48G01

$39.68

20

GEAR, 1ST DRIVEN (NT:34)

24311-15H00

$192.75

21

BUSH, 1ST DRIVEN GEAR

24312-24F10

$35.47

22

GEAR,2ND DRIVEN (NT:31)

24321-15H00

$192.75

23

BUSH, 2ND DRIVEN GEAR

24322-48G00

$32.12

24

GEAR,3RD DRIVEN (NT:29)

24331-15H00

$192.75

25

BUSH, 3RD DRIVEN GEAR

24332-24F10

$34.15

26

BUSH, 4TH DRIVEN GEAR

24332-24F10

$34.15

27

GEAR,4TH DRIVEN (NT:27)

24341-15H00

$192.75

28

GEAR, 5TH DRIVEN (NT:25)

24351-15H01

$197.58

29

GEAR,6TH DRIVEN (NT:24)

24361-15H00

$197.58

30

LOCK WASHER

09167-30008

$6.12

31

LOCK WASHER

09167-30008

$6.12

32

LOCK WASHER

09167-30008

$6.12

33

SHIM (20X34X1)

09181-20251

$2.79

34

SHIM (24X34X1)

09181-24005

$3.55

35

BEARING (20X34X20) | RH

09263-20040

$55.20

36

BEARING (30X62X23.8) | LH

09267-30011

$167.22

37

OIL SEAL (42X62X7)

09283-42018

$36.39

38

CIRCLIP

09380-30009

$3.49

39

CIRCLIP

09380-30009

$3.49

40

CIRCLIP

09380-30009

$3.49

41

PIN

04221-07209

$2.30

42

WASHER

08211-30405

$4.17

43

SPROCKET, ENGINE (NT:18)

27510-15H00

$148.73

44

SPACER,ENGINE SPROCKET NO.1

27531-15H00

$37.33

45

SPACER,ENGINE SPROCKET NO.2 (

27532-15H00

$15.95

46

CHAIN ASSY, DRIVE (RK GB50GSVZ4) | L:118->114

27600-24F60-118

$600.32

47

JOINT SET, DRIVEN | OPT

27620-24F60

$21.10

48

NUT

09159-22008

$30.18
