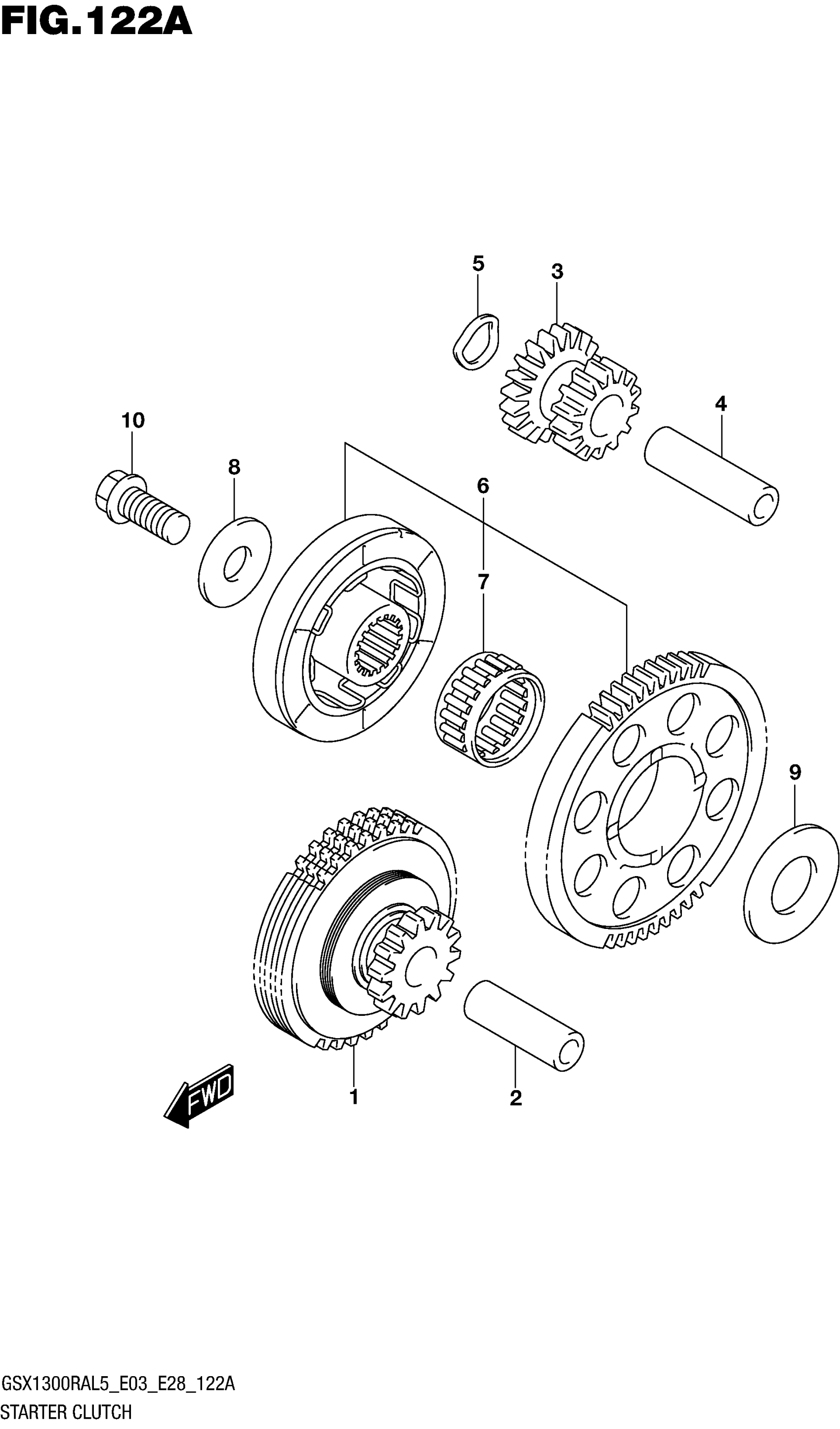

Suzuki GSX1300RAL5 (2015) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE GEAR NO.1

12600-24F00

$107.37

2

PIN, STARTER IDLE GEAR NO.1

12615-24F00

$9.61

3

GEAR, STARTER IDLE NO.2 (NT:14/17)

12612-24F00

$60.75

4

PIN

12151-05200

$11.44

5

WASHER

09164-14008

$2.01

6

CLUTCH, STARTER ONE WAY (NT:44)

12600-24861

$432.40

7

BEARING (28X34X16.8)

09263-28031

$43.98

8

WASHER

08211-10285

$3.19

9

WASHER

08211-20403

$3.95

10

BOLT (10X23)

09103-10189

$3.70
