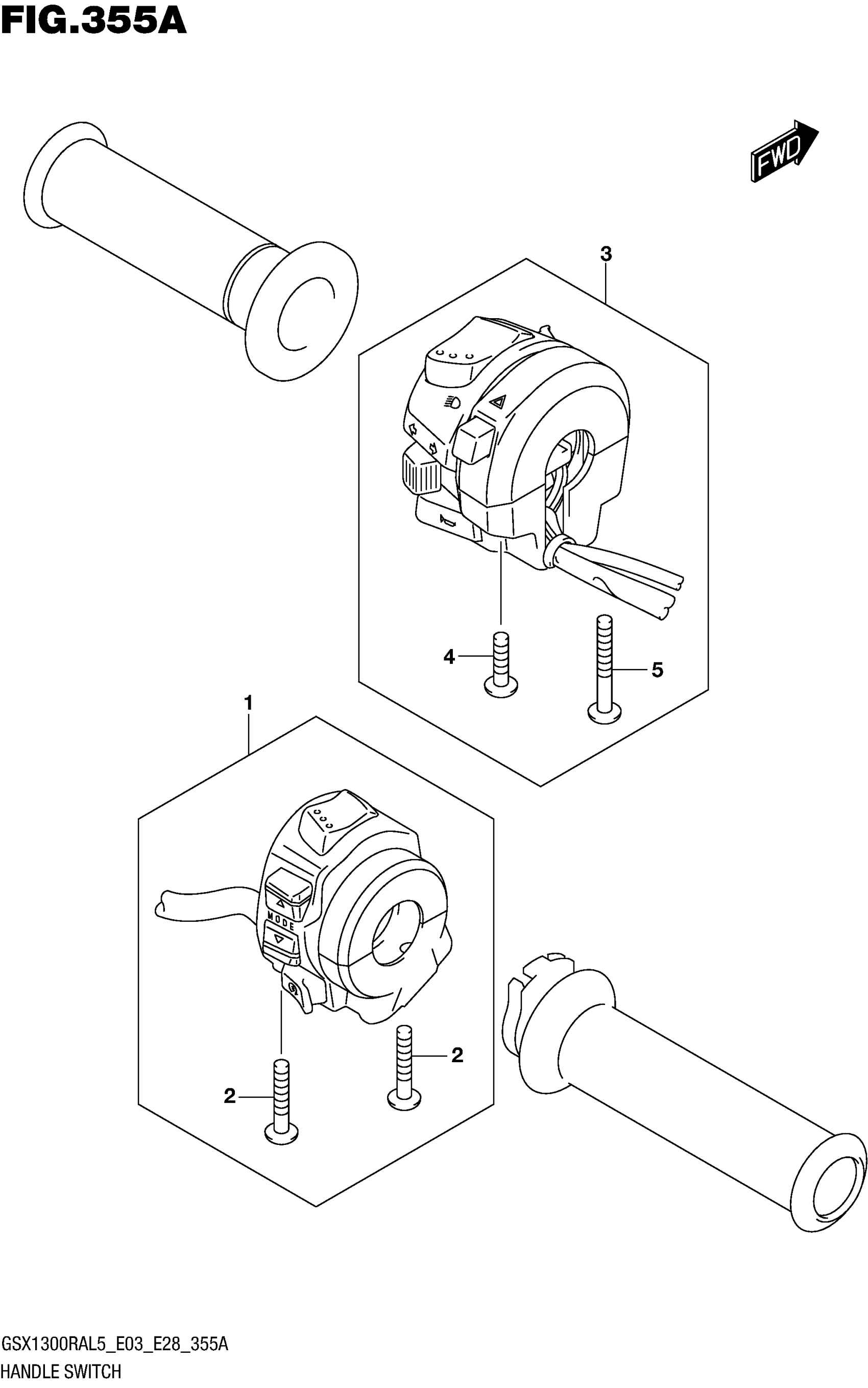

Suzuki GSX1300RAL5 (2015) HANDLE SWITCH (GSX1300RAL5 E03) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE, RH

37200-15H10

$262.03

2

SCREW

02112-0530B

$1.45

3

SWITCH ASSY, HANDLE, LH This part replaces 37400-18H12.

37400-18H13

$219.07

4

SCREW

02112-0525B

$1.86

5

SCREW

02112-0545B

$2.24
