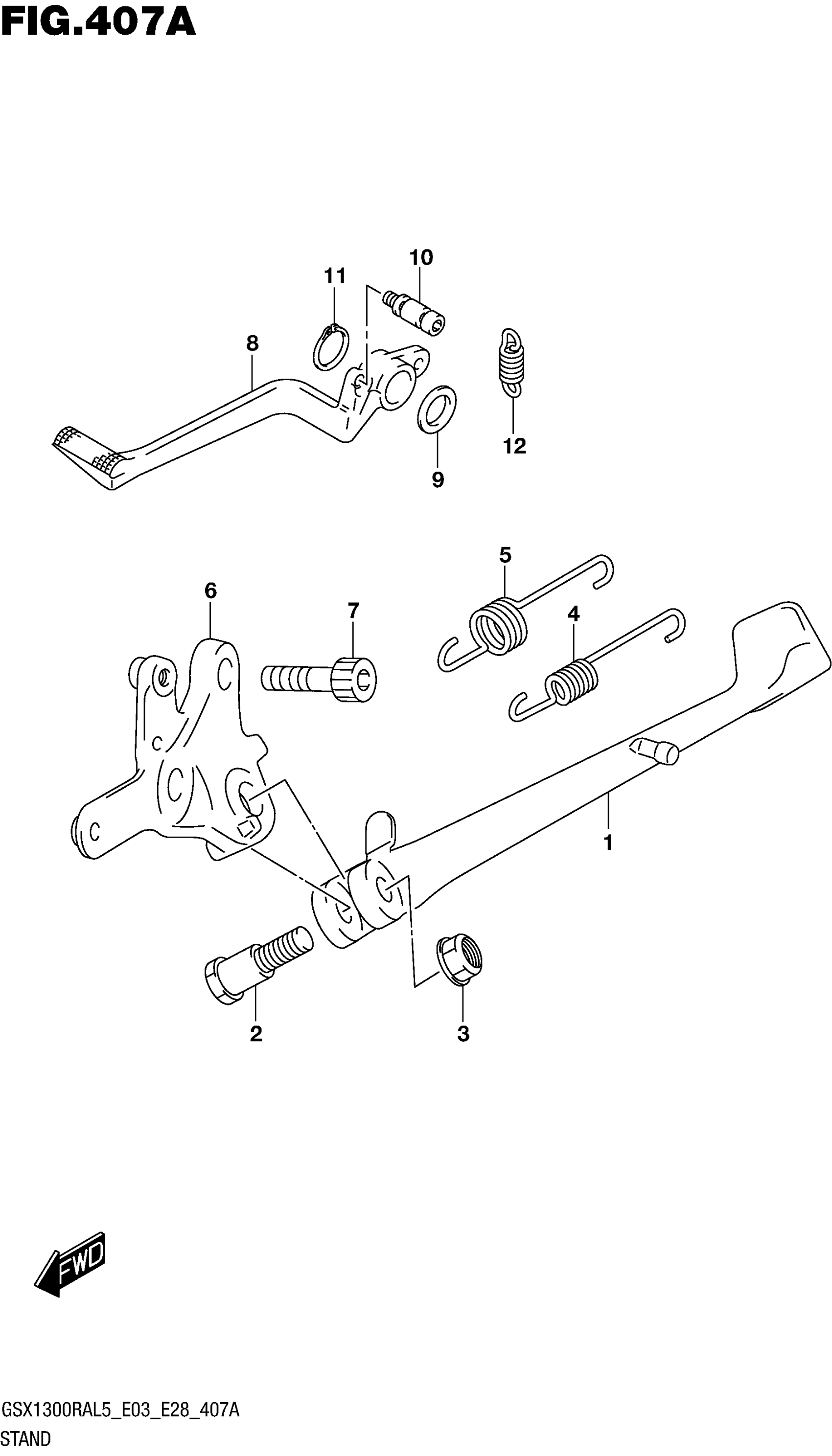

Suzuki GSX1300RAL5 (2015) STAND (GSX1300RAL5 E03) Diagram

#

Description
Price

1

STAND,PROP

42310-24F00

$164.77

2

BOLT (10X21)

09111-10059

$6.95

3

NUT

09159-10103

$3.10

4

SPRING

09443-14068

$5.57

5

SPRING

09443-19015

$6.02

6

BRACKET,PROP STAND

42330-24F01

$157.58

7

BOLT (12X35)

09106-12003

$5.10

8

PEDAL, BRAKE

43111-24F01

$160.07

9

WASHER (18X24X1)

09160-18022

$2.92

10

HOOK,RETURN SPRING

43561-24F00

$15.63

11

CLIP

08331-3118A

$2.13

12

SPRING

09443-13032

$5.42
