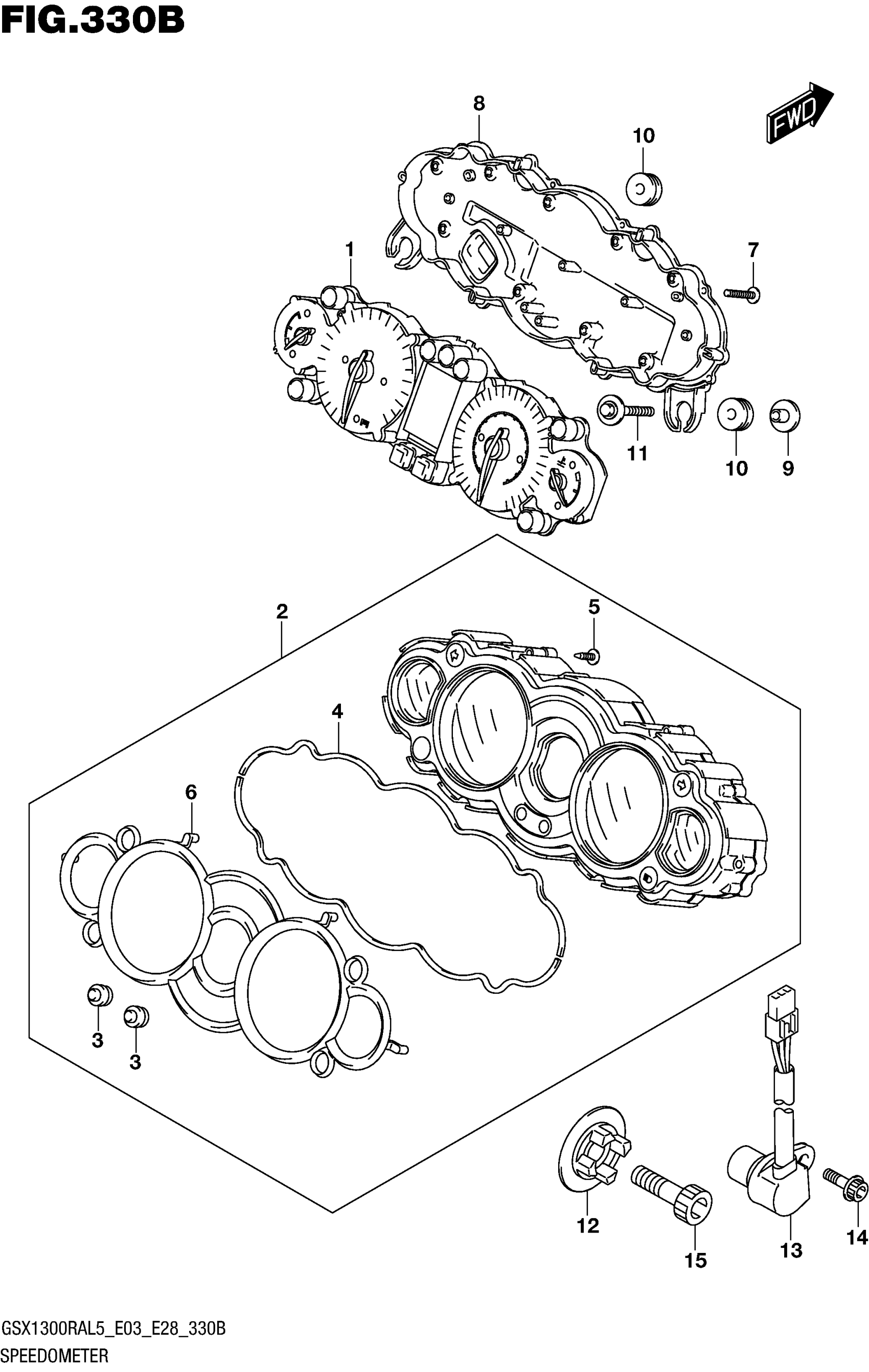

Find the part on the Speedometer diagram for your 2015 Suzuki GSX1300RAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki GSX1300RAL5 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COMBINATION METER

34120-15H20

—
Out of stock

2

UPPER CASE ASSY

34150-15H00

1
Out of stock

3

SWITCH RUBBER

34124-39G00

2
Out of stock

4

PACKING

34153-15H00

2
Out of stock

5

SCREW (2.3X8)

34183-31F10

6
Out of stock

6

RING

34193-15H00

1
Out of stock

7

SCREW (3X16)

09132-03008

20
Out of stock

8

LOWER CASE ASSY

34111-15H01

1
Out of stock

9

WASHER, SPEEDOMETER

34187-24F00

2
Out of stock

10

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

4
Out of stock

11

BOLT (6X25)

09116-06186

2
Out of stock

12

ROTOR, SPEED

34981-47H01

1
Out of stock

13

SENSOR, SPEED

34990-35F00

1
Out of stock

14

BOLT

07120-0512B

1
Out of stock

15

BOLT

07130-0825B

1
Out of stock
