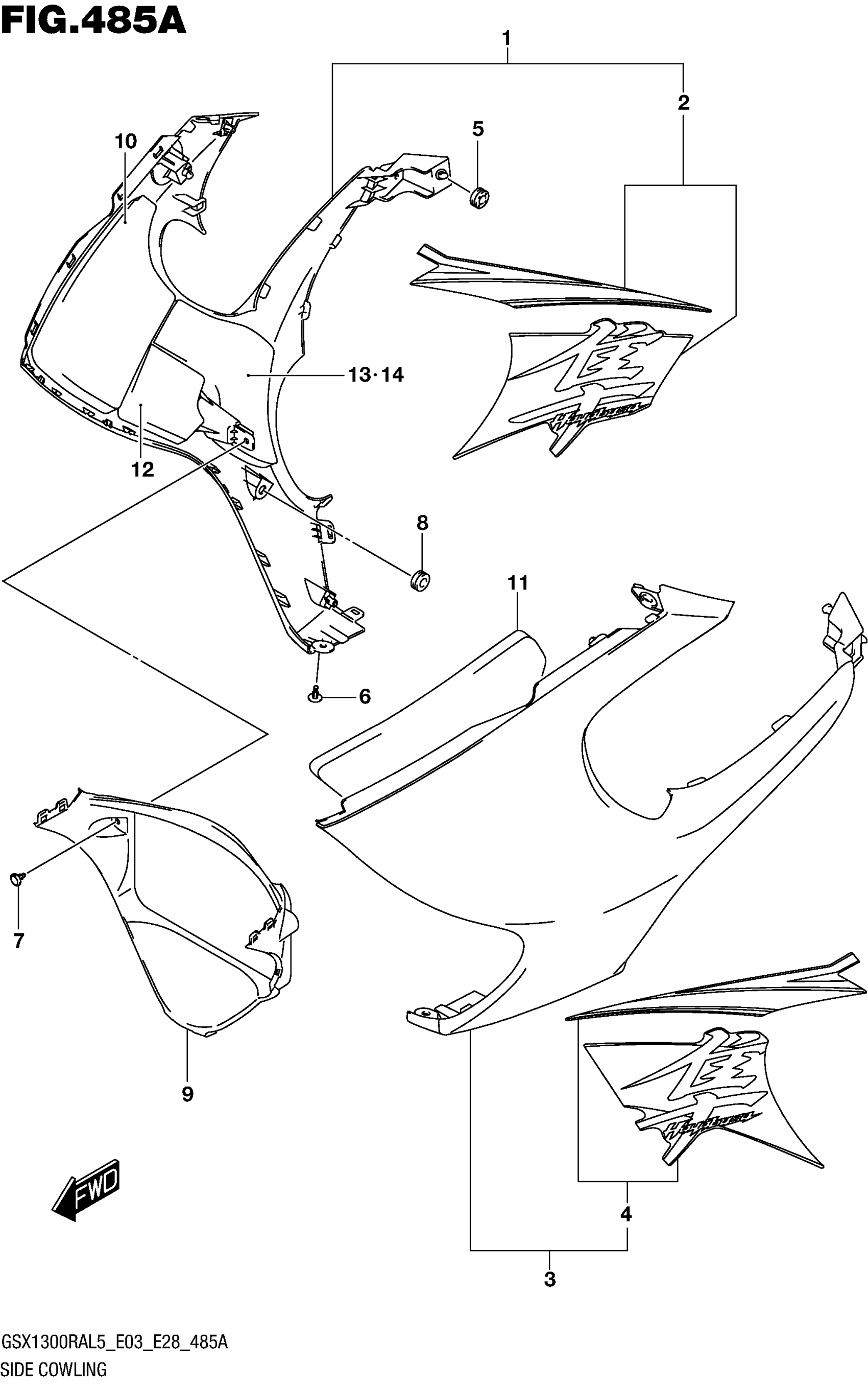

Suzuki GSX1300RAL5 (2015) SIDE COWLING Diagram

#

Description
Price

1

COWLING, SIDE RH (GRAY) | FOR AA3

94450-15H70-YLF

$1,212.31

1

COWLING, SIDE RH (SILVER) | FOR ARA

94450-15H70-YMD

$1,258.47

1

COWLING, SIDE RH (SILVER) | FOR ASU

94450-15H70-5JX

$1,280.04

2

TAPE SET, SIDE COWLING RH | FOR YLF

68680-15H20-A34

$185.48

2

TAPE SET, SIDE COWLING RH | FOR YMD

68680-15H20-A35

$185.48

2

TAPE SET, SIDE COWLING RH | FOR 5JX

68680-15H20-A37

$185.48

3

COWLING, SIDE LH (GRAY) | FOR AA3

94460-15H70-YLF

$1,258.47

3

COWLING, SIDE LH (SILVER) | FOR ARA

94460-15H70-YMD

Unavailable

3

COWLING, SIDE LH (SILVER) | FOR ASU

94460-15H70-5JX

$1,123.04

4

TAPE SET, SIDE COWLING LH | FOR YLF

68690-15H20-A34

$185.48

4

TAPE SET, SIDE COWLING LH | FOR YMD

68690-15H20-A35

$185.48

4

TAPE SET, SIDE COWLING LH | FOR 5JX

68690-15H20-A37

$185.48

5

CUSHION

09320-08028

$3.04

6

CLIP

94479-35F00

$5.62

7

CLIP

94479-35F00

$5.62

8

CUSHION

09321-10018

$5.45

9

COWLING, UNDER CENTER

94498-15H00

$66.03

10

CUSHION, SIDE UPPER RH This part replaces 94476-15H00.

94476-15H01

$40.25

11

CUSHION, SIDE UPPER LH This part replaces 94486-15H00.

94486-15H01

$34.06

12

CUSHION, SIDE LOWER

94476-15H10

$12.30

13

SHIELD, SIDE RH

94474-15H00

$63.38

14

SHIELD, SIDE LH

94484-15H00

$65.20
