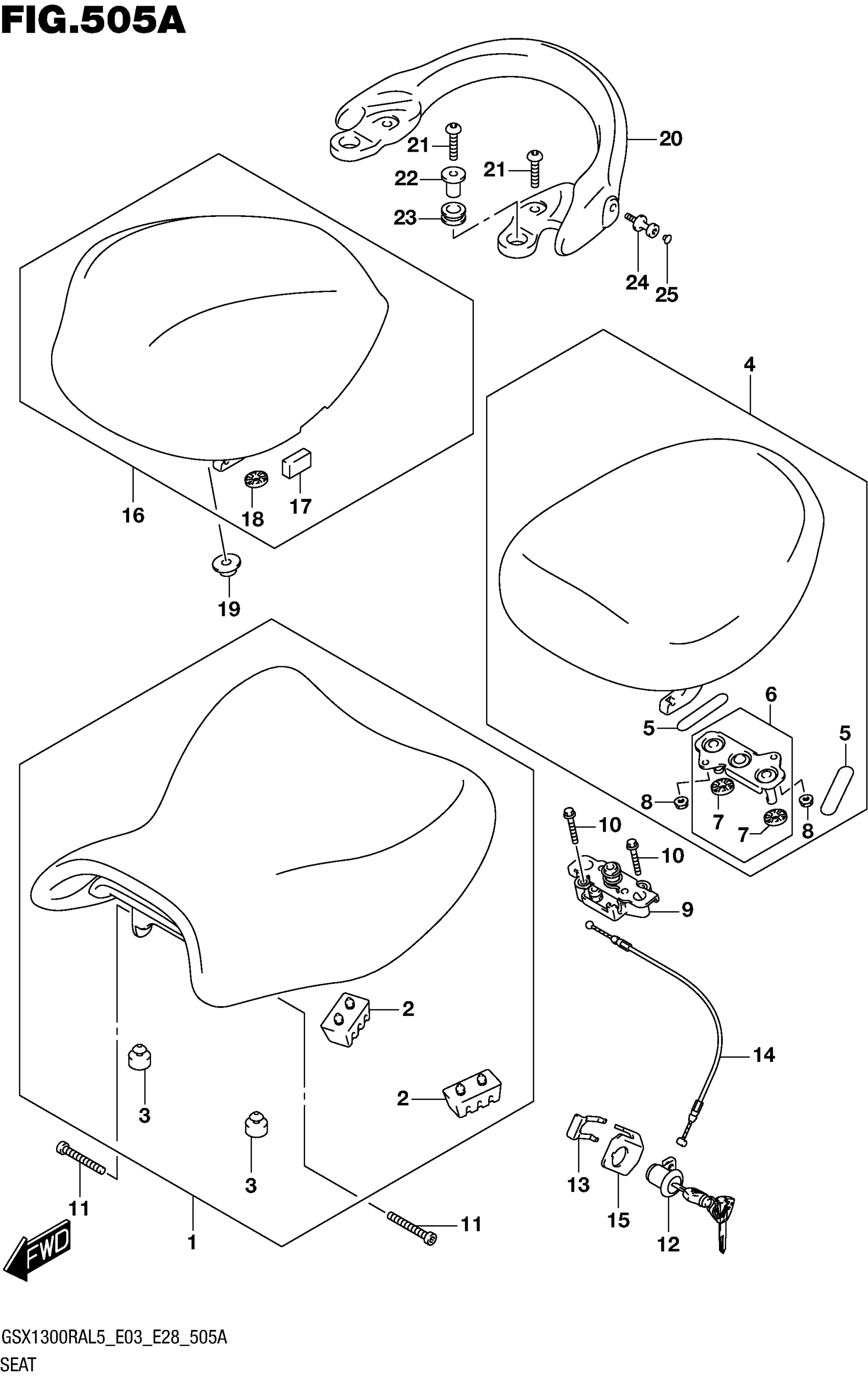

Suzuki GSX1300RAL5 (2015) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-15H01-EJY.

45100-15H03-EJY

$283.60

2

CUSHION

45149-45330

$3.89

3

CUSHION

09321-10011

$2.91

4

SEAT ASSY,PILLI This part replaces 45300-15H11-U6H.

45300-15H12-U6H

$213.28

5

CUSHION

45149-15H10

$5.28

6

STRIKER, SEAT LOCK

45290-15H00

$52.23

7

CUSHION

45213-42F00

$5.60

8

NUT

08316-1006A

$2.19

9

BRACKET, SEAT SUPPORT

45220-15H00

$143.67

10

BOLT

01547-0630A

$2.32

11

BOLT,SEAT FR

45191-15H00

$7.69

12

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

13

PLATE, SEAT LOCK

45289-11F00

$6.20

14

CABLE, SEAT LOCK

45280-18G01

$20.47

15

GUIDE, CABLE

45288-14F20

$9.07

16

BOX, SEAT TAIL (WHITE) | FOR AA3

45550-15H01-RB5

$278.53

16

BOX, SEAT TAIL (BLUE) | FOR ARA

45550-15H01-YKY

$236.27

16

BOX, SEAT TAIL (BLACK) | FOR ASU

45550-15H01-YVB

$318.50

17

CUSHION

45553-15H00

$9.73

18

CUSHION

45213-42F00

$5.60

19

.WASHER,FRAME COVER

47190-24F01

$9.92

20

HANDLE, PILLION RIDER (WHITE) | FOR AA3

46211-15H00-RB5

Unavailable

20

HANDLE, PILLION RIDER (BLUE) | FOR ARA This part replaces 46211-15H00-YKY.

46211-15H01-YKY

$327.53

20

HANDLE, PILLION RIDER (BLACK) | FOR ASU This part replaces 46211-15H00-YVB.

46211-15H01-YVB

$347.25

21

BOLT (8X33)

09106-08137

$5.92

22

WASHER, PILLION RIDER HANDLE

47190-24F11

$12.10

23

CUSHION, PILLION RIDER HANDLE

46217-24F00

$5.84

24

HOOK, HANDLE

46212-24F11

$32.36

25

CAP (OD:10)

09250-05009

$2.19
