Description

Price

1

RADIATOR ASSY, WATER

17710-15H10

$1,140.68

2

CAP

17730-08J00

$42.50

3

BOLT (6X25)

09118-06097

$2.50

4

SPACER (6.5X10X12)

09180-06290

$2.35

5

CUSHION

09320-10051

$2.99

6

BRACKET, RADIATOR LOWER

17750-24F00

$10.95

7

BOLT

01550-0612A

$1.97

8

FAN ASSY, RADIATOR RH

17810-15H00

Unavailable

9

FAN ASSY, RADIATOR LH

17820-15H00

$544.88

10

BOLT, FAN ASSY

17711-08J00

$4.73

11

NUT, FAN ASSY

17712-40F00

$4.68

12

SHIELD, HEAT

17771-15H00

$36.88

13

TAPE, REAR FENDER

63131-10F00

$14.02

14

CUSHION, RESERVOIR TANK

94476-17H00

$5.82

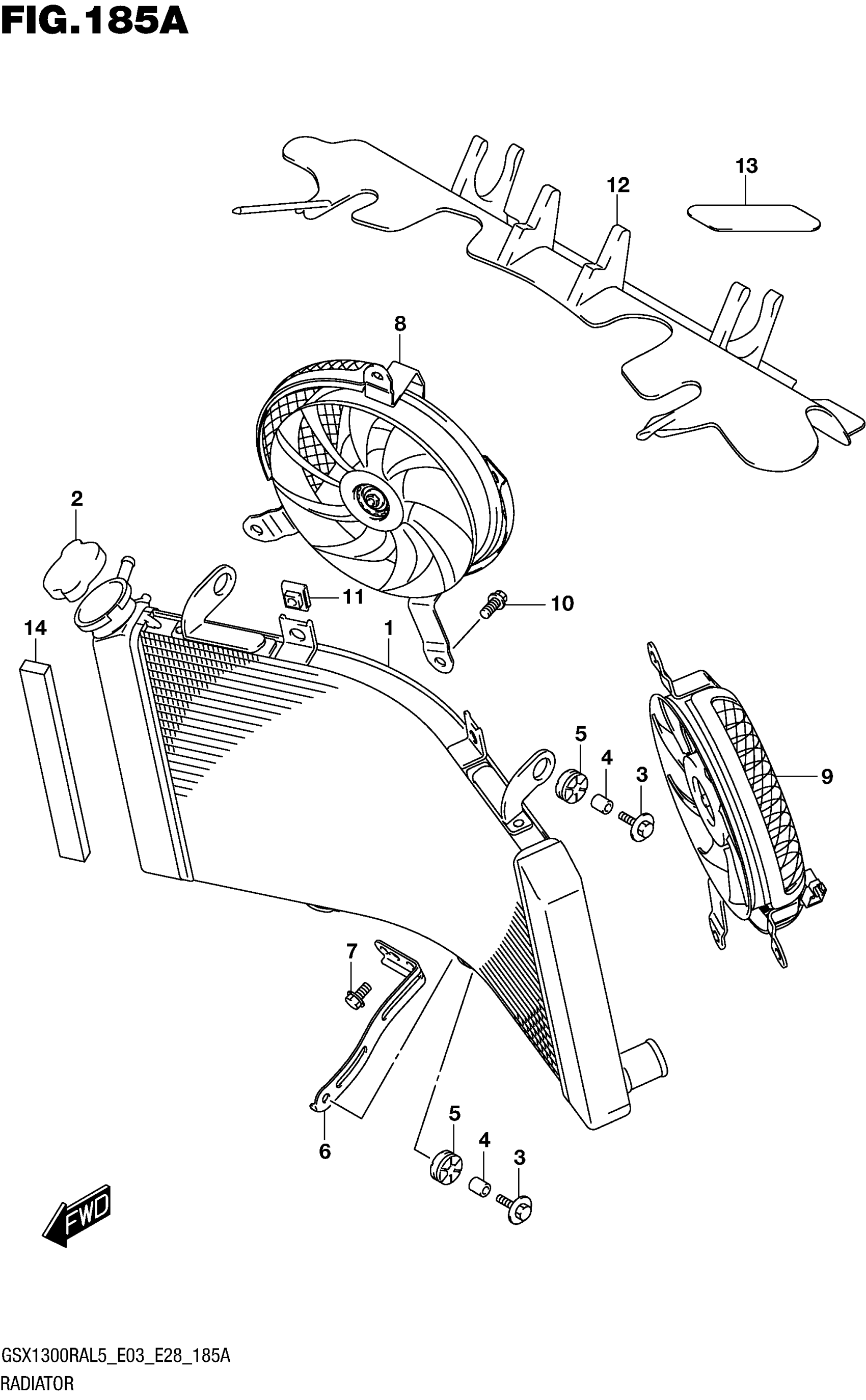

Suzuki GSX1300RAL5 (2015) RADIATOR Diagram
