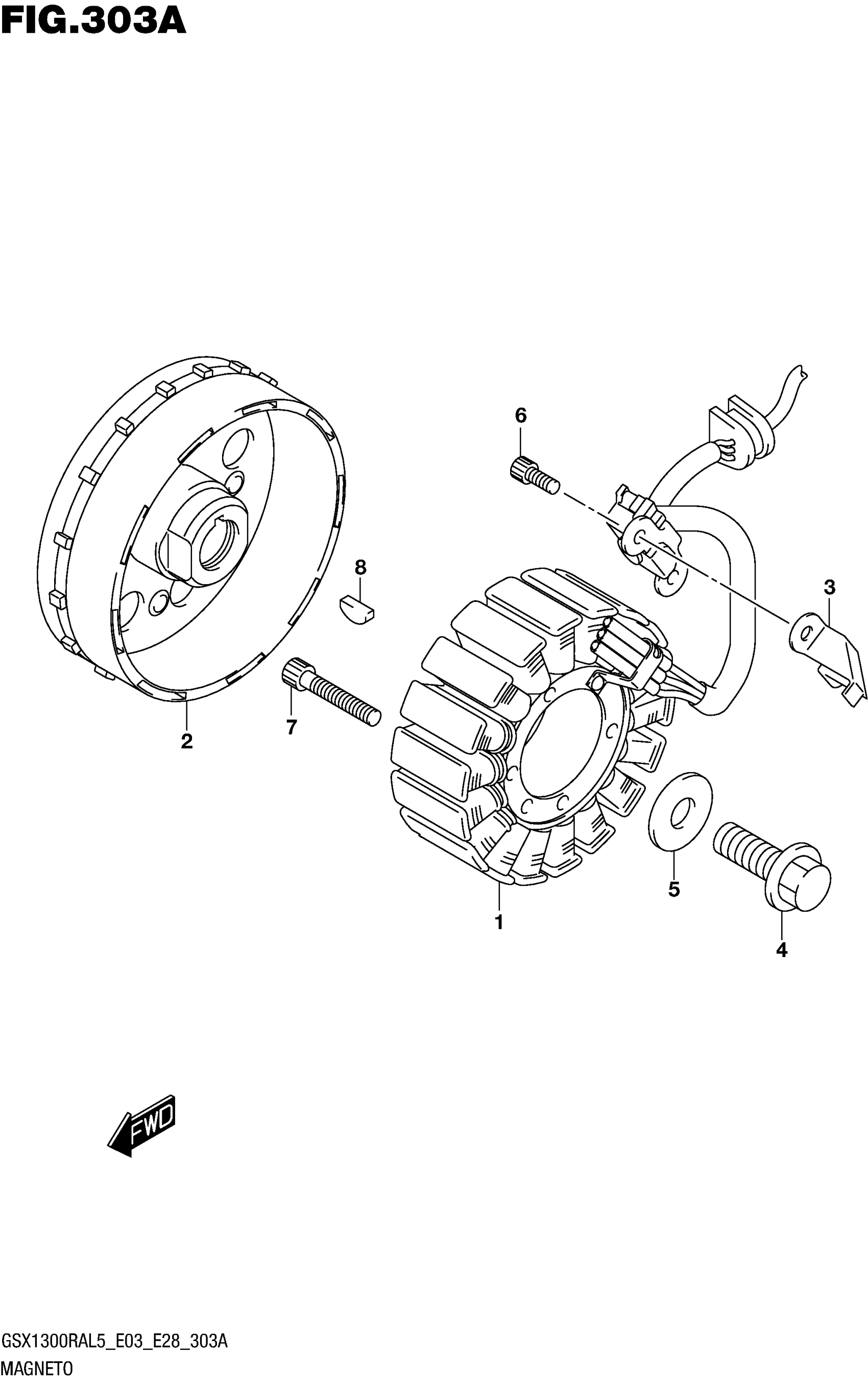

Suzuki GSX1300RAL5 (2015) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY, MAGNETO This part replaces 32101-24F20.

32101-24F30

$395.39

2

ROTOR ASSY, MAGNETO

32102-24F20

$943.15

3

CLAMP, MAGNETO LEAD

32371-24F00

$7.12

4

BOLT (12X30)

09103-12028

$6.14

5

WASHER (12X30X3.0)

09160-12036

$4.28

6

BOLT

07130-0512A

$2.19

7

BOLT

07130-0635A

$2.90

8

KEY

09420-04008

$3.08
