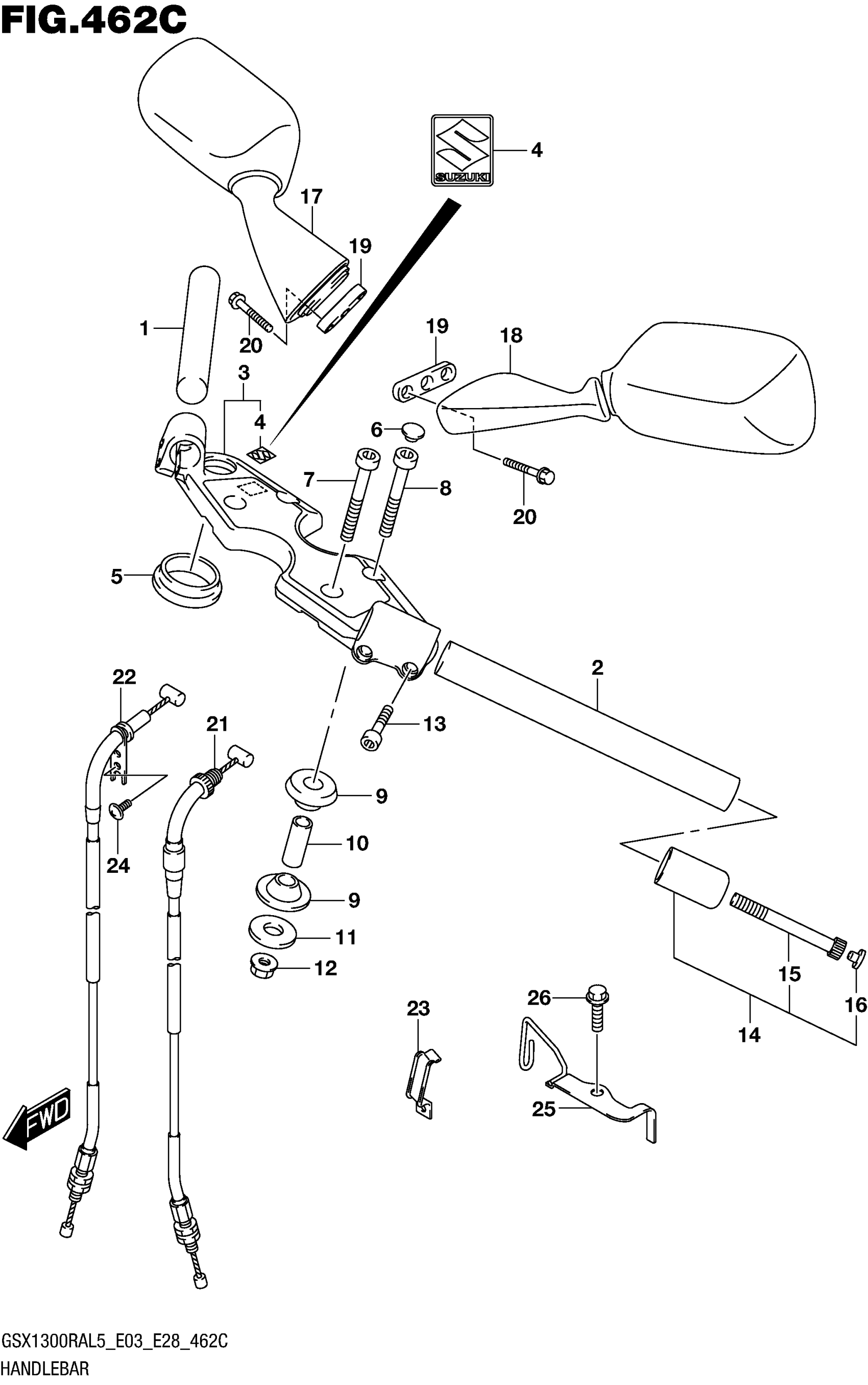

Suzuki GSX1300RAL5 (2015) HANDLEBAR (GSX1300RAL5 E33) Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-15H00

$86.13

2

HANDLEBAR, LH

56151-15H00

$86.13

3

HOLDER, HANDLE

56210-15H10

$602.22

4

EMBLEM, "S"

68281-47HA0

$7.77

5

CUSHION,HANDLE HOLDER

56247-24F00

$11.37

6

CAP, BOLT

56246-24F00

$7.51

7

BOLT

07130-1065B

$5.55

8

BOLT

07130-1060A

$5.08

9

CUSHION,UPR BRKT This part replaces 56240-01D00.

56240-01D01

$28.17

10

SPACER

56243-01D00

$9.42

11

WASHER (10.5X30X3.2)

09160-10094

$3.16

12

NUT

08319-3110A

$2.73

13

BOLT (6X25)

09106-06090

$3.16

14

BALANCER SET, HANDLEBAR

56200-15830

$57.71

15

BOLT

07130-0660B

$4.68

16

CAP (OD:10)

09250-05009

$2.19

17

MIRROR ASSY, REAR VIEW RH

56500-24F20

$257.48

18

MIRROR ASSY, REAR VIEW LH

56600-24F20

$239.77

19

CUSHION

94576-24F00

$6.52

20

BOLT

01547-0630B

$2.73

21

CABLE ASSY,THRO This part replaces 58300-15H20.

58300-15H21

$54.92

22

CABLE ASSY,THRO This part replaces 58300-15H30.

58300-15H31

$53.23

23

GUIDE,CABLE

58623-24F10

$7.85

24

SCREW (5X10)

09125-05042

$1.96

25

GUIDE, CABLE

58620-15H00

$21.58

26

BOLT

01547-0612A

$2.03
