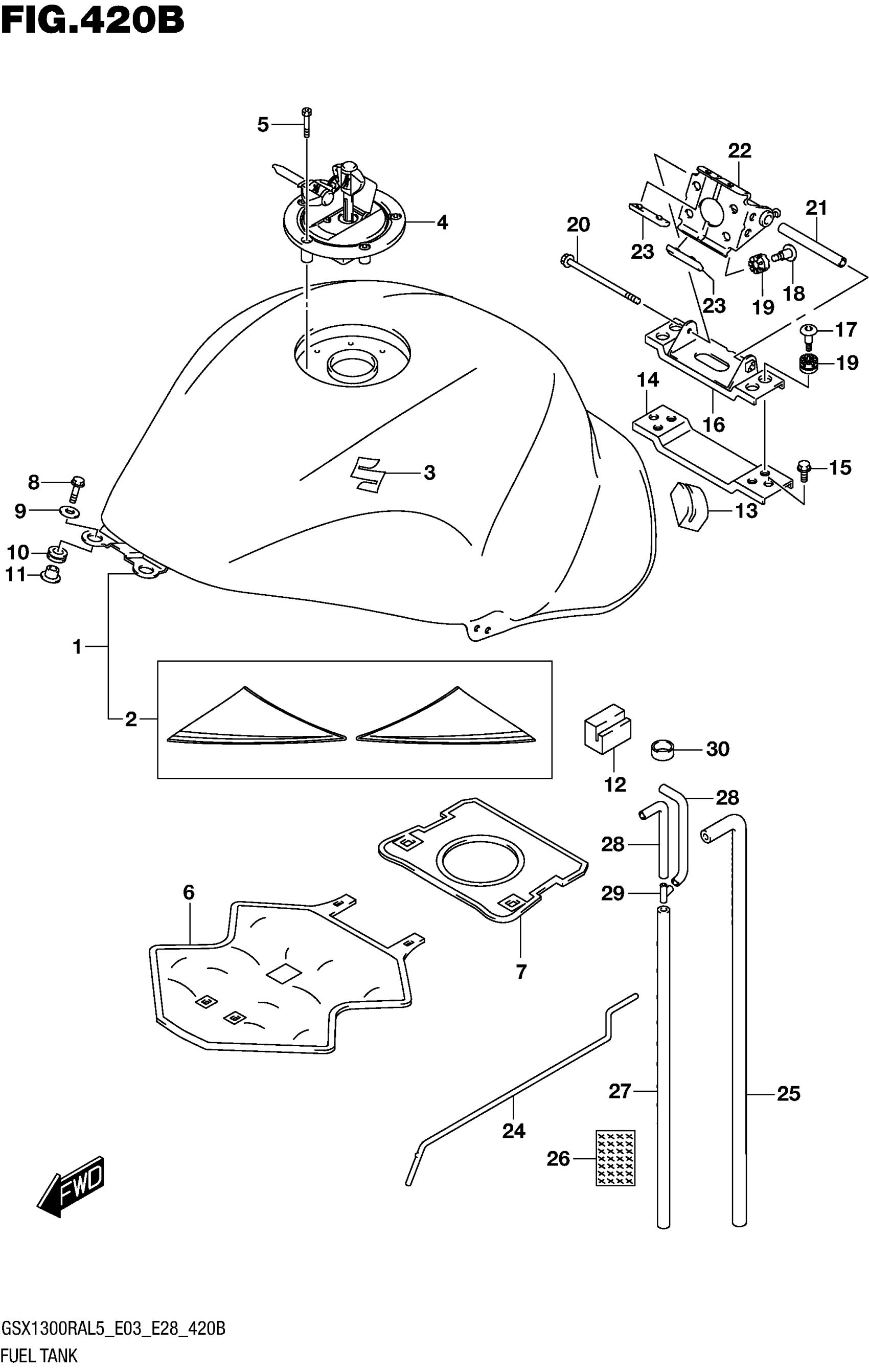

Suzuki GSX1300RAL5 (2015) FUEL TANK (GSX1300RAL5 E28) Diagram

#

Description
Price

1

TANK ASSY,FUEL( | FOR AA3 This part replaces 44100-15HF0-YVB.

44100-15HF1-YVB

$1,596.28

1

TANK ASSY, FUEL (WHITE) | FOR ARA

44100-15HF0-RB5

Unavailable

1

TANK ASSY, FUEL (BLUE) | FOR ASU

44100-15HF0-YKY

Unavailable

2

TAPE SET (GRAY/GOLD) | FOR YVB

68110-15H40-A3Z

$98.53

2

TAPE SET (SILVER/RED) | FOR RB5

68110-15H40-A31

Unavailable

2

TAPE SET (SILVER/RED) | FOR YKY

68110-15H40-A32

$98.53

3

EMBLEM, "S"

68111-47HA0

$37.02

4

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$108.21

5

BOLT (5X20)

09106-05017

$2.80

6

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

$198.55

7

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$83.62

8

SCREW (6X25)

09139-06029

$4.84

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

11

SPACER

44512-16G00

$6.80

12

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.38

13

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.78

14

BRACKET, FUEL TANK REAR NO.3

44555-15H00

Unavailable

15

BOLT (8X16)

01550-0816A

$2.31

16

BRACKET, FUEL TANK REAR NO.2

44550-15H01

Unavailable

17

SCREW (6X22)

09139-06191

$3.69

18

SCREW (6X22)

09139-06191

$3.69

19

CUSHION

09320-08071

$3.05

20

BOLT

07120-0695B

$3.95

21

SPACER, FUEL TANK REAR

44561-18G00

$15.52

22

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

23

CUSHION, BRACKET

45149-44G00

Unavailable

24

STAY | OPT

44574-35F00

$13.89

25

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$25.20

26

SHIELD, DRAIN HOSE HEAT

44427-15H00

Unavailable

27

HOSE, BREATHER This part replaces 44424-15H00.

44424-15H01

$22.88

28

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

29

3 WAY

09367-06007

$3.17

30

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable
