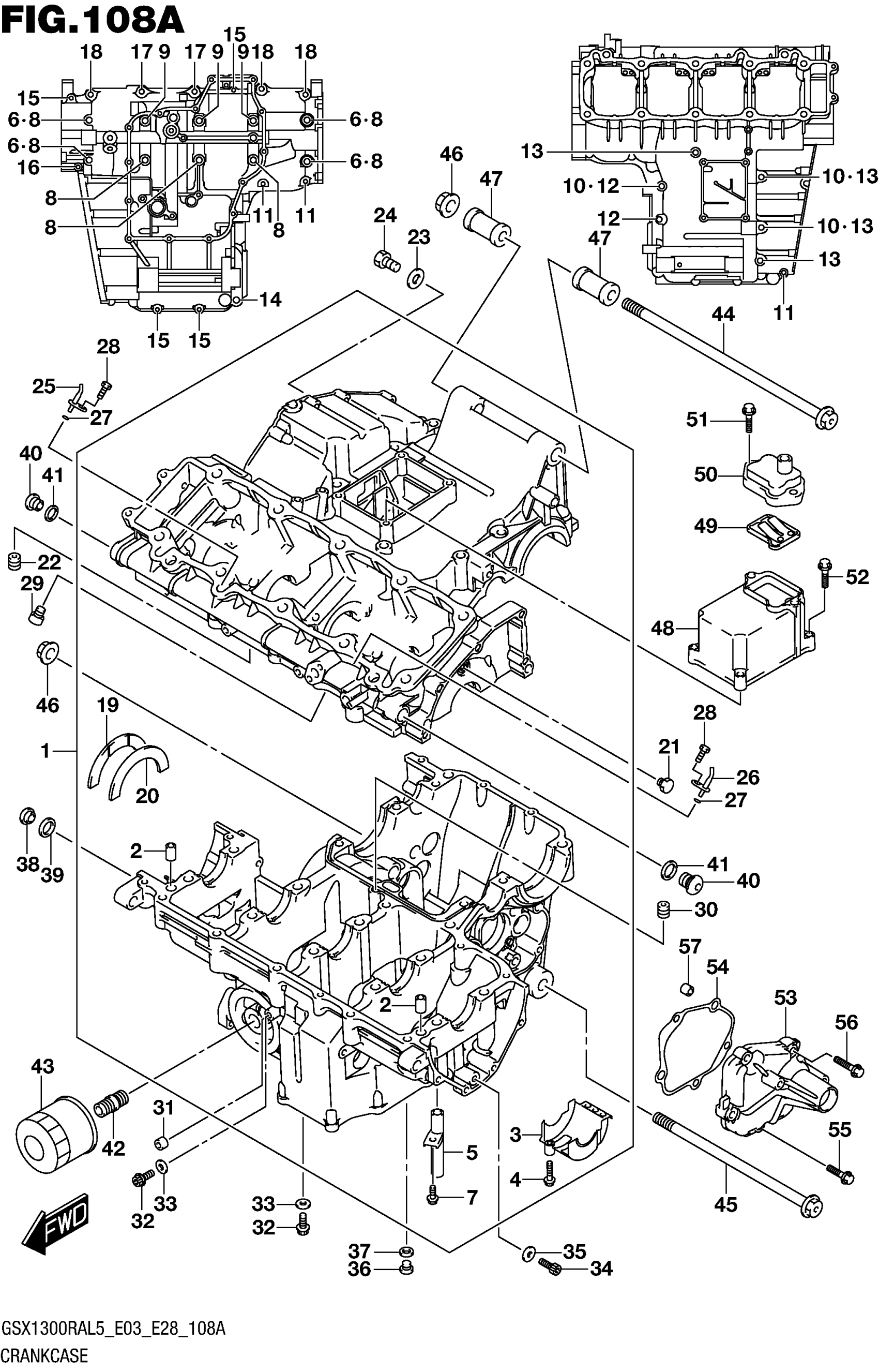

Suzuki GSX1300RAL5 (2015) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-24820

$3,709.40

2

PIN,CRANKCASE

11319-33E50

$5.32

3

SEPARATOR, OIL

11323-24F10

Unavailable

4

BOLT

01547-0625A

$2.01

5

UNION, BREATHER OIL

11328-24F00

$18.67

6

.GASKET (10.2X20X2.3)

09168-10031

$2.03

7

BOLT

01547-0612A

$2.03

8

BOLT (9X95)

09103-09008

$7.59

9

BOLT (9X115)

09103-09010

$9.92

10

GASKET (8.2X14X1)

09168-08016

$1.65

11

BOLT

01547-0650A

$2.46

12

BOLT

01550-0865A

$3.51

13

BOLT

01550-0880A

$3.61

14

BOLT

01550-1060A

$4.58

15

BOLT

01547-0640A

$2.32

16

BOLT

01547-0660A

$2.82

17

BOLT (8X60)

09103-08155

Unavailable

18

BOLT (8X50)

09103-08355

$4.25

19

BEARING, CRANK THRUST (GREEN) | RH

12228-24F00-0D0

$10.81

20

.BEARING,CRANK THRUST,L (RED) | LH

12228-24F00-0A0

$12.80

20

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$12.72

20

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$12.72

20

BEARING, CRANK THRUST (GREEN)

12228-24F00-0D0

$10.81

20

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$13.28

20

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$13.28

21

JET, MAGNETO COOLING

11393-33E01

$13.85

22

JET,AIR (#100)

09493-20012

$19.48

23

GASKET (5.8X13X1.2)

09168-06023

$2.35

24

PLUG

07120-0612B

$3.04

25

JET,PISTON COOLING

11390-34E00

$21.52

26

JET,PISTON COOLING

11390-34E10

$21.52

27

O RING (D:1.2,ID:4)

09280-04004

$1.91

28

BOLT (6X12)

09106-06075

$2.48

29

BOLT (6X10)

09106-06076

$3.29

30

JET, AIR (180)

09493-36006

$16.87

31

JET, OIL GALLERY

11532-46E00

$11.53

32

PLUG

07120-0612B

$3.04

33

GASKET (5.8X13X1.2)

09168-06023

$2.35

34

PLUG

07130-0816B

$4.25

35

GASKET (8.2X14X1)

09168-08016

$1.65

36

PLUG (10X10)

09248-10010

$4.17

37

GASKET (10X14X3.6)

09168-10002

$2.13

38

PLUG (16X8)

09248-16012

$4.64

39

GASKET (16X22X2)

09168-16002

$1.91

40

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

41

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

42

UNION,OIL STAND

16591-06B01

$7.05

43

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10

44

BOLT (12X320)

09103-12120

$33.30

45

BOLT (12X243)

09103-12119

$26.44

46

NUT

09159-12054

$7.44

47

SPACER,ENG MTG (L47)

11611-24F00

$26.75

48

COVER,BREATHER

11331-15H00

$88.70

49

VALVE ASSY,BREATHER REED

13150-01H01

$69.90

50

COVER,BREATHER REED VALVE

11372-21H00

$19.23

51

BOLT

01547-0620A

$2.03

52

BOLT

01547-0630A

$2.32

53

COVER, GEAR SHIFT

11383-15H00

$115.47

54

GASKET

11485-24F00

$6.52

55

BOLT

01547-0625A

$2.01

56

BOLT

01547-0635A

$2.30

57

PIN

04211-09149

$1.65
