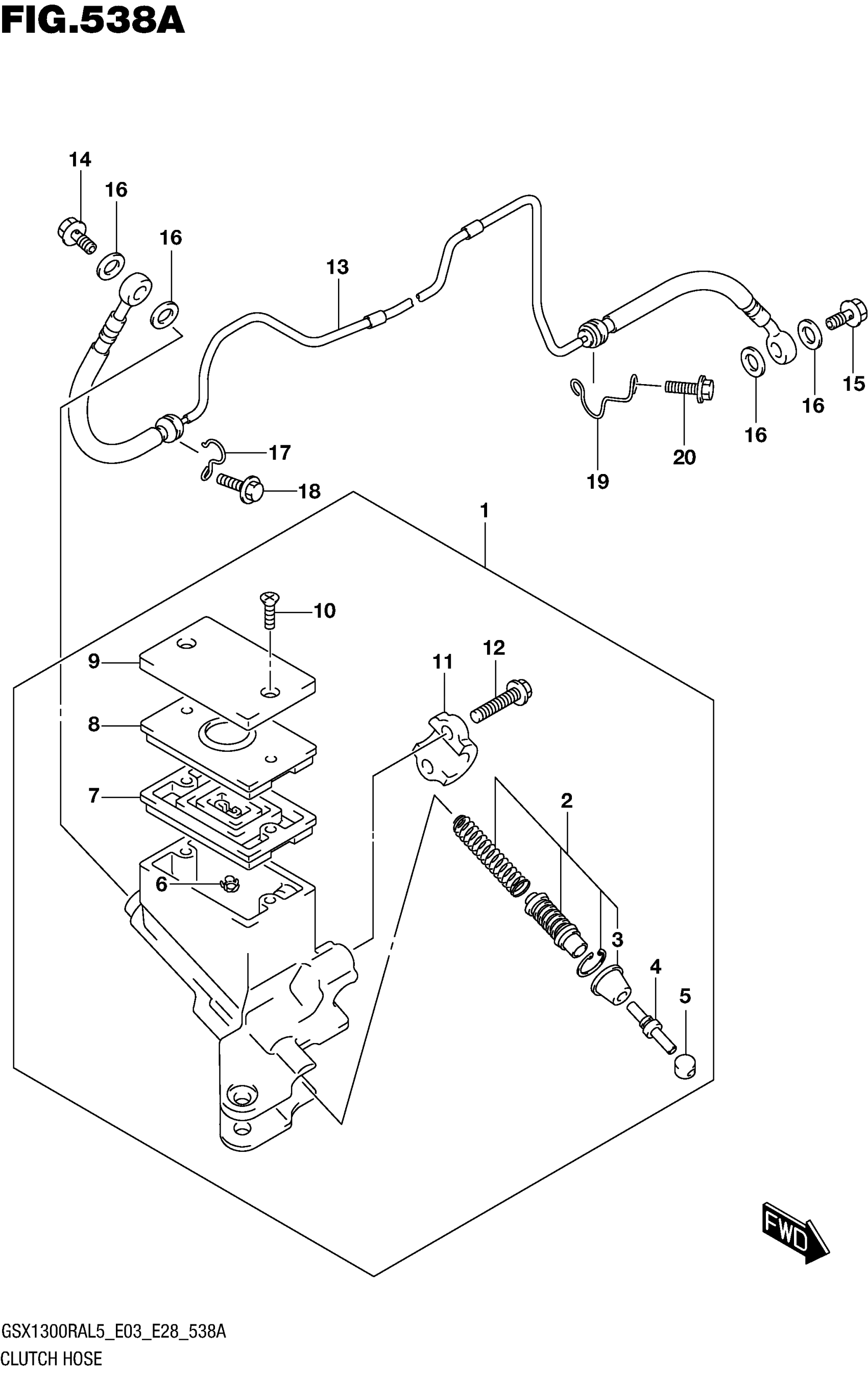

Suzuki GSX1300RAL5 (2015) CLUTCH HOSE Diagram

#

Description
Price

1

CYLINDER ASSY, CLUTCH MASTER

59800-24F30

$326.02

2

PISTON/CUP SET

59800-24810

$39.68

3

BOOT

59866-23H00

$7.97

4

ROD, PUSH

59871-23H00

$9.52

5

BUSH

59892-08A00

$5.05

6

PROTECTOR

59664-48B00

$11.02

7

DIAPHRAGM

59667-49460

$9.78

8

PLATE

59668-41C00

$9.32

9

CAP

59669-10G00

$38.30

10

SCREW

69689-49300

$1.91

11

.HOLDER

59671-36500

$12.21

12

BOLT (6X22)

59675-06F10

$4.65

13

HOSE COMP,CLUTC This part replaces 59910-24F10.

59910-24F11

$262.98

14

UNION

09360-10062

$6.43

15

UNION

09360-10062

$6.43

16

WASHER (10X15X1.5)

09161-10009

$1.84

17

CLAMP, HOSE NO.1

59915-24F00

$11.37

18

BOLT

01550-0616A

$1.97

19

CLAMP,CLUTCH HOSE NO.2

59921-24F00

$12.40

20

BOLT

01550-0616A

$1.97
