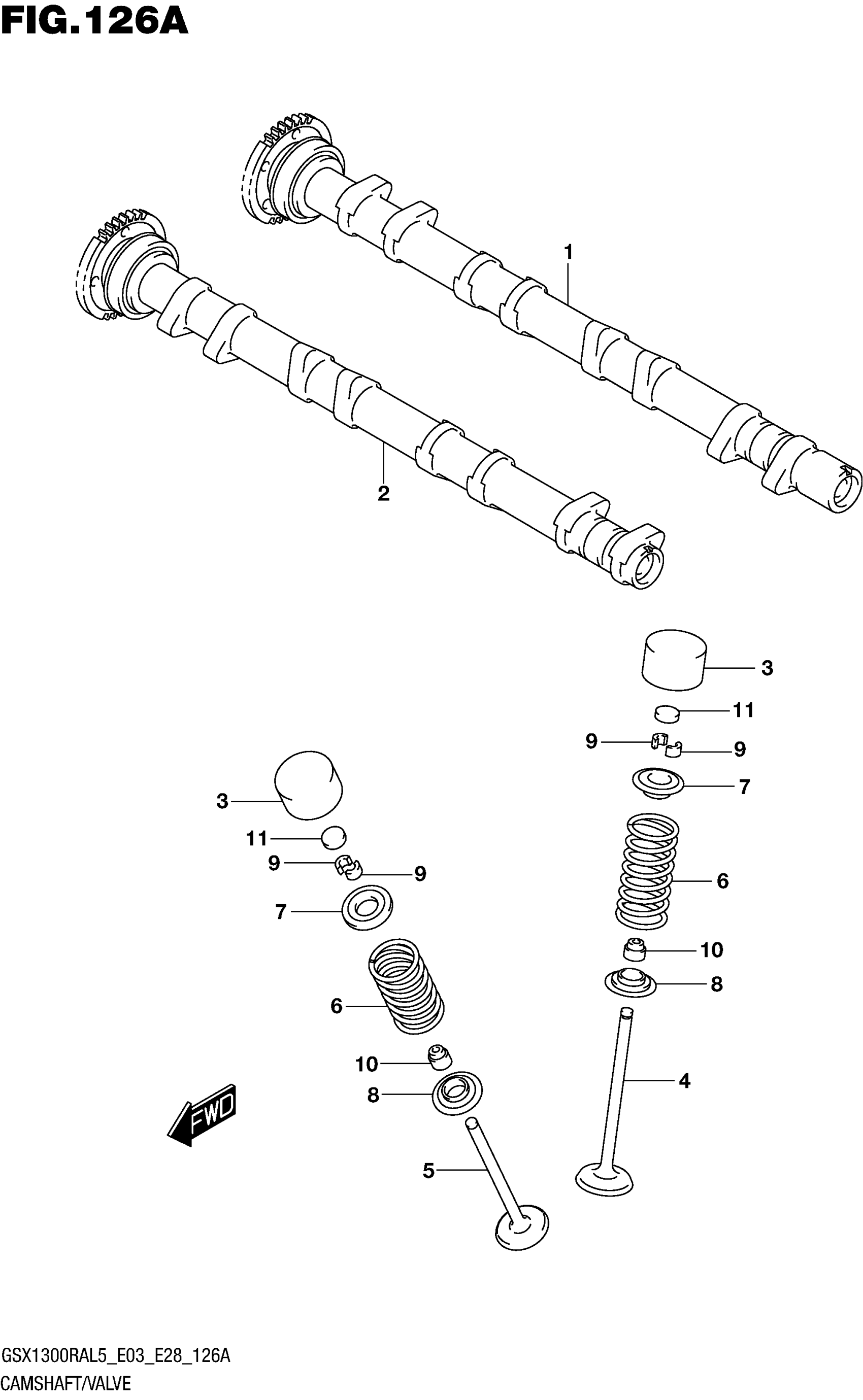

Suzuki GSX1300RAL5 (2015) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-15H00

$545.95

2

CAMSHAFT, EXHAUST

12720-15H00

$425.21

3

TAPPET This part replaces 12891-02F00.

12891-02F10

$48.15

4

VALVE,INTAKE

12911-15H01

$131.13

5

VALVE,EXHAUST

12912-15H00

$188.63

6

SPRING, VALVE

12921-15H00

$19.32

7

RETAINER,VALVE SPRING

12931-02F10

$13.89

8

SEAT,VALVE SPRING

12933-38400

$4.98

9

COTTER, VALVE

12932-24F00

$2.14

10

OIL SEAL (5X10X9.7)

09289-05011

$5.70

11

SHIM, TAPPET (T:2.30)

12892-41C00-230

$12.85

11

SHIM, TAPPET (T:2.35)

12892-41C00-235

$13.35

11

SHIM, TAPPET (T:2.40)

12892-41C00-240

$13.35

11

SHIM, TAPPET (T:2.45)

12892-41C00-245

$13.35

11

SHIM, TAPPET (T:2.50)

12892-41C00-250

$13.35

11

SHIM, TAPPET (T:2.55)

12892-41C00-255

$13.35

11

SHIM, TAPPET (T:2.60)

12892-41C00-260

$12.85

11

SHIM, TAPPET (T:2.65)

12892-41C00-265

$12.85

11

SHIM, TAPPET (T:2.70)

12892-41C00-270

$12.85

11

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.12

11

SHIM, TAPPET (T:2.80)

12892-41C00-280

$12.85

11

SHIM, TAPPET (T:2.85)

12892-41C00-285

$13.35

11

SHIM, TAPPET (T:2.90)

12892-41C00-290

$12.85

11

SHIM, TAPPET (T:2.95)

12892-41C00-295

$13.35

11

SHIM, TAPPET (T:3.00)

12892-41C00-300

$13.10

11

SHIM, TAPPET (T:3.05)

12892-41C00-305

$13.35

11

SHIM, TAPPET (T:3.10)

12892-41C00-310

$12.85

11

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

11

SHIM, TAPPET (T:3.20)

12892-41C00-320

$13.10

11

SHIM, TAPPET (T:3.25)

12892-41C00-325

$13.35

11

SHIM, TAPPET (T:3.30)

12892-41C00-330

$13.35

11

SHIM, TAPPET (T:3.35)

12892-41C00-335

$13.35

11

SHIM, TAPPET (T:3.40)

12892-41C00-340

$13.35

11

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

11

SHIM, TAPPET (T:3.50)

12892-41C00-350

$13.35

12

SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) & CASE | OPT NOT ILLUSTRATED

12800-41810

$1,242.87

13

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

Unavailable
