2015 Suzuki GSX1300RAL5 CAM Chain Diagram

← All diagrams

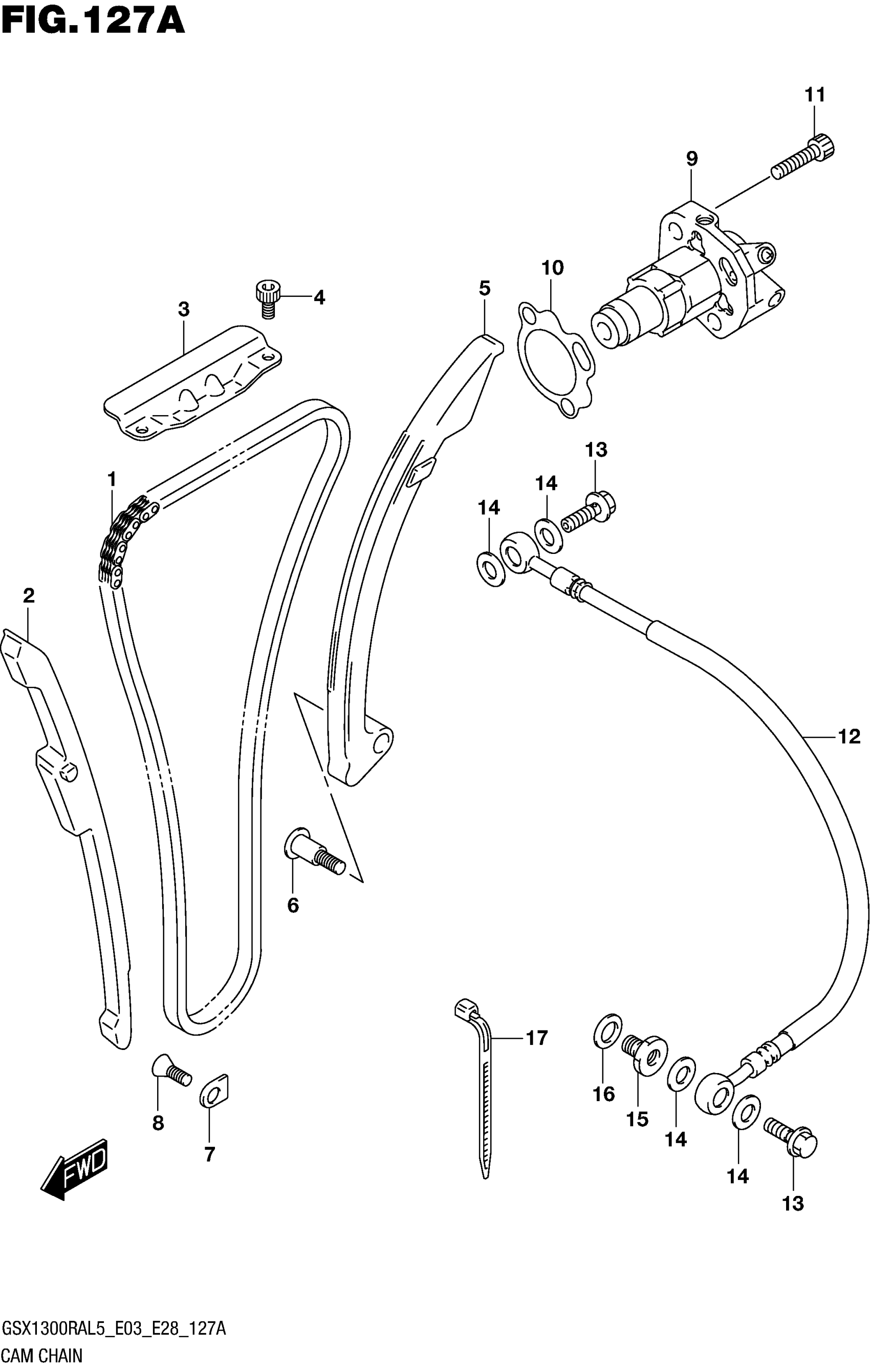

Find the part on the CAM Chain diagram for your 2015 Suzuki GSX1300RAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki GSX1300RAL5 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-24F01

1

$155.77

In stock

3

1

$35.07

In stock

4

BOLT

07130-0612A

2
Out of stock

5

1

$69.60

In stock

6

BOLT

12812-31G00

1

$4.57

In stock

7

1

$4.53

In stock

8

SCREW

02122-0612A

1

$1.49

In stock

10

1

$6.44

In stock

11

BOLT (6X25)

07130-0625A

2

$2.85

In stock

12

1

$141.73

In stock

13

2

$8.77

In stock

14

GASKET (7.8X13.5X1.2)

09168-08034

4

$2.21

In stock

16

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

17

CLAMP (L:165)

09407-18402

1
Out of stock
