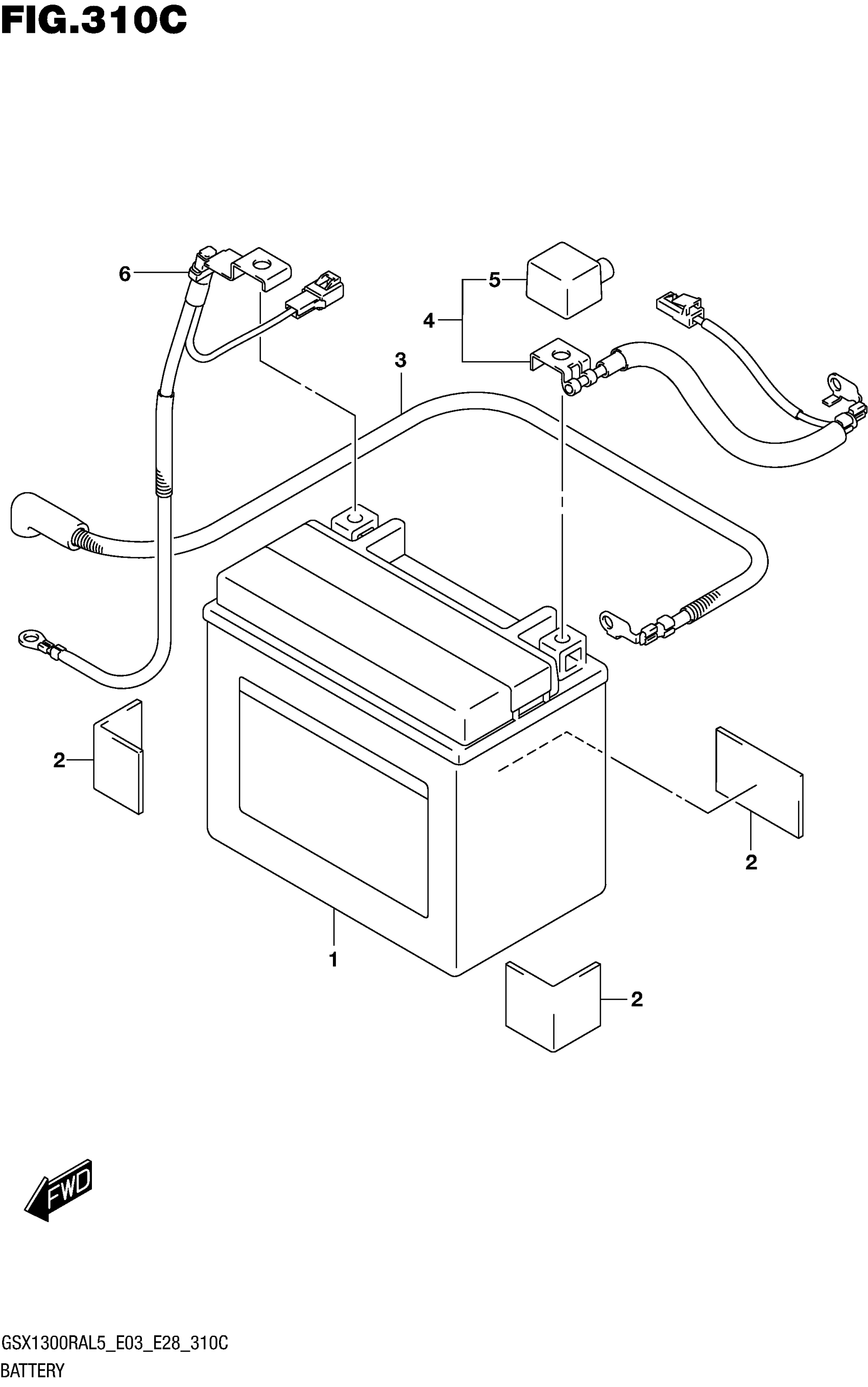

Suzuki GSX1300RAL5 (2015) BATTERY (GSX1300RAL5 E33) Diagram

#

Description

Price

1

BATTERY (FTX12-BS,12V,10AH) This part replaces 33610-17E10.

33610-48E20

$98.67

2

PROTECTOR, BATTERY

33652-36000

$2.30

3

WIRE,STARTER MO This part replaces 33810-15H00.

33810-15H01

$30.28

4

WIRE,BATTERY PL This part replaces 33820-15H10.

33820-15H11

$23.10

5

CAP, BATTERY PLUS

33624-16G00

$5.78

6

WIRE,BATTERY MI This part replaces 33860-15H00.

33860-15H01

$27.17
