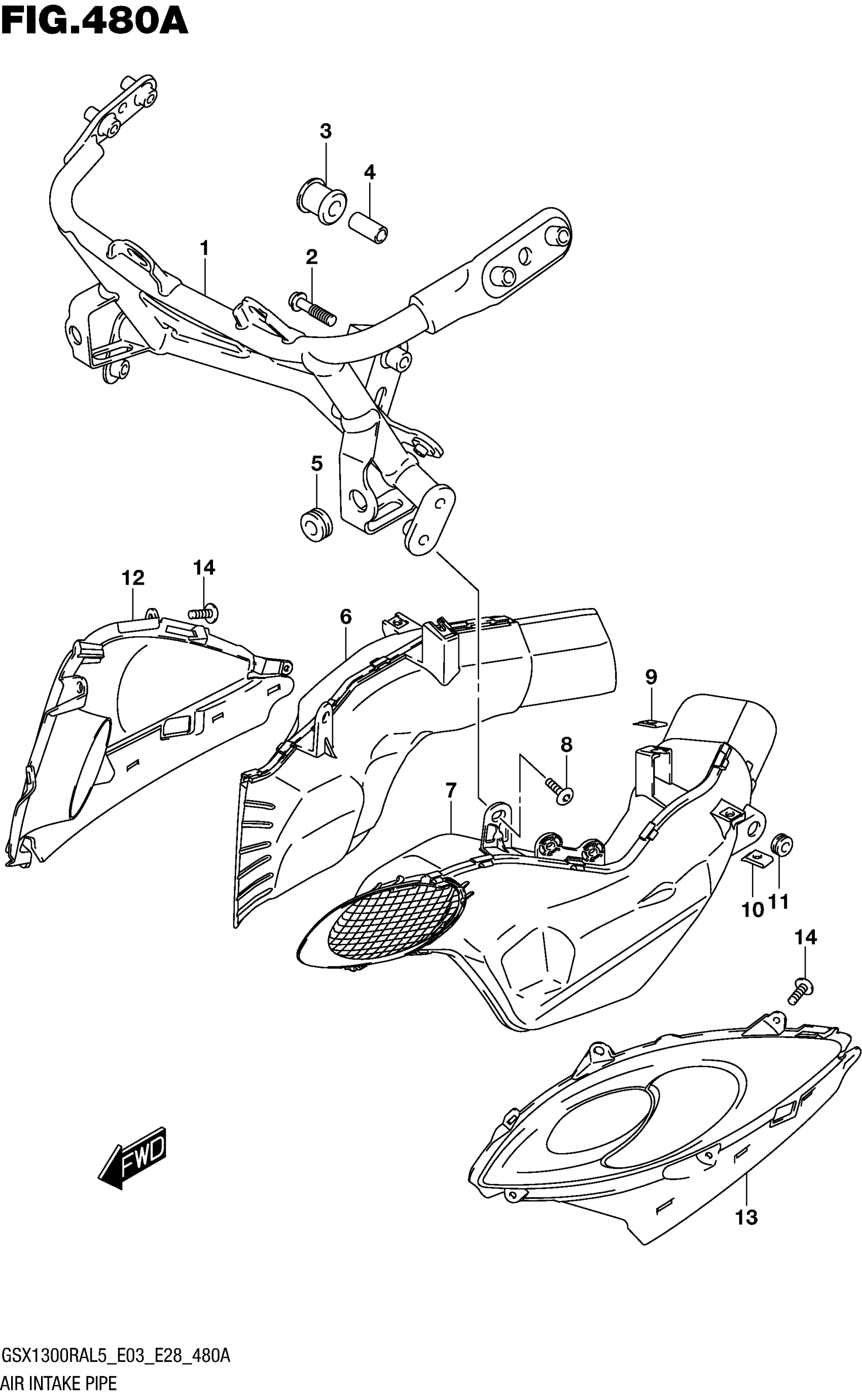

Suzuki GSX1300RAL5 (2015) AIR INTAKE PIPE Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-15H00.

94510-15H01

$443.92

2

BOLT (8X40)

09103-08367

$3.78

3

CUSHION, UPPER

94541-41C00

$5.18

4

SPACER (8.6X12.2X26.5)

09180-08215

$4.19

5

CUSHION

09320-08028

$3.04

6

PIPE, INTAKE RH

94420-15H01

$139.15

7

PIPE, INTAKE LH

94430-15H01

$139.15

8

SCREW

94423-15H00

$4.96

9

NUT COWL

94484-24F00

$4.03

10

NUT

09148-05038

$1.97

11

CUSHION

09320-08028

$3.04

12

COVER, INTAKE RH (WHITE) | FOR AA3

94671-15H00-RB5

Unavailable

12

COVER,INTAKE,R | FOR ARA This part replaces 94671-15H00-YKY.

94671-15H01-YKY

$282.37

12

COVER,INTAKE,R | FOR ASU This part replaces 94671-15H00-YVB.

94671-15H01-YVB

$250.65

13

COVER, INTAKE LH (WHITE) | FOR AA3

94681-15H00-RB5

Unavailable

13

COVER,INTAKE,L | FOR ARA This part replaces 94681-15H00-YKY.

94681-15H01-YKY

$250.65

13

COVER,INTAKE,L | FOR ASU This part replaces 94681-15H00-YVB.

94681-15H01-YVB

$250.65

14

SCREW (5X16)

09132-05053

$2.28
