Description

Price

1

COOLER ASSY, OIL

16600-15H20

$994.25

2

BOLT (6X25)

09118-06097

$2.50

3

SPACER (6.5X10X12)

09180-06290

$2.35

4

CUSHION

09320-10051

$2.99

5

BRACKET, OIL COOLER

16640-24F00

$11.18

6

BOLT

01550-0612A

$1.97

7

HOSE, OIL COOLER RH

16460-15H00

Unavailable

8

HOSE, OIL COOLER LH

16470-15H00

$185.93

9

O RING (D:2.4,ID:16)

09280-15015

$4.90

10

BOLT (6X16)

09106-06073

$2.39

11

GUARD,OIL COOLER This part replaces 16650-15H00.

16650-15H01

$64.25

12

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

13

.HOSE (3X5X600) | L:600->40 This part replaces 09352-30503-600.

09352-30504-600

$4.91

14

NUT

17802-14F00

$3.38

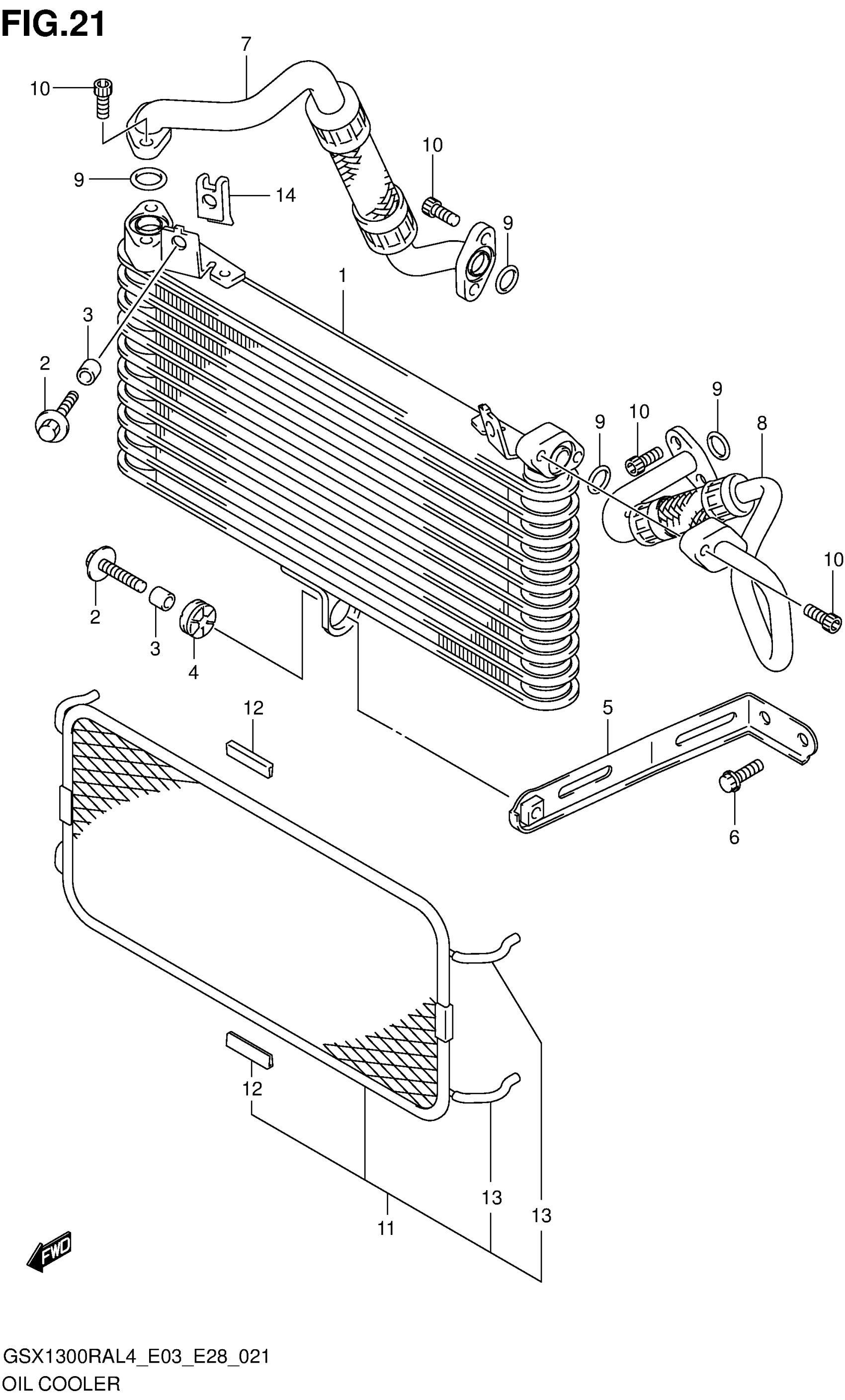

Suzuki GSX1300RAL4 (2014) OIL COOLER Diagram
