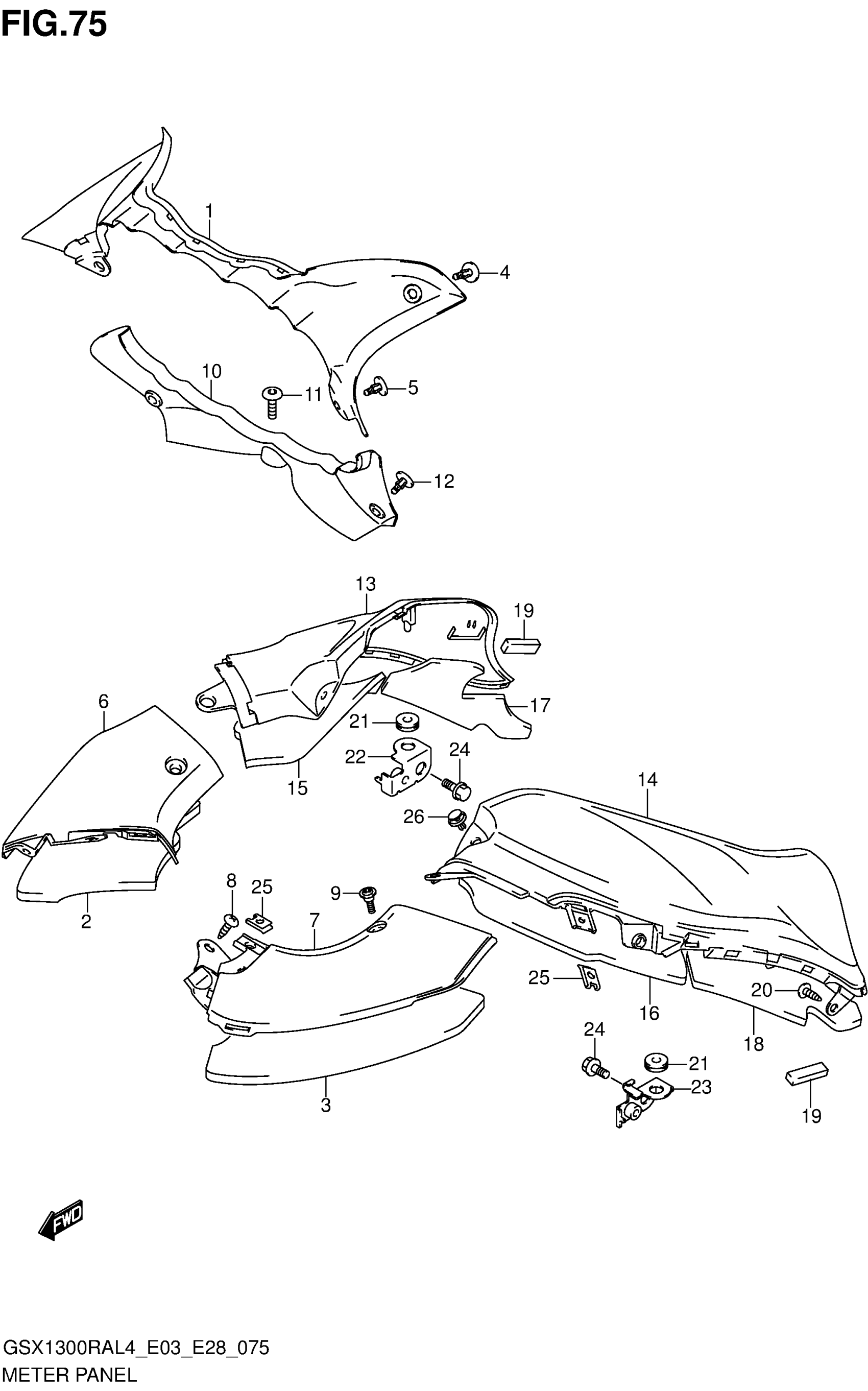

Suzuki GSX1300RAL4 (2014) METER PANEL Diagram

#

Description
Price

1

PANEL, METER UPPER

94424-15H00

$59.92

2

CUSHION, RH This part replaces 94643-15H00.

94643-15H01

$24.00

3

CUSHION, LH This part replaces 94644-15H00.

94644-15H01

$23.53

4

CLIP (BLACK)

09409-06314-5PK

$2.78

5

CLIP

09409-07333

$2.31

6

PANEL, METER RH

94641-15H00

$33.32

7

PANEL, METER LH

94651-15H00

$33.32

8

SCREW

03241-1516B

$2.87

9

SCREW (5X16)

09139-05504

$3.70

10

PANEL, METER REAR

94425-15H00

$61.93

11

SCREW (5X13)

09139-05503

$2.69

12

CLIP

09409-08327

$2.32

13

PANEL, SIDE RH

94621-15H00

$77.73

14

PANEL, SIDE LH

94631-15H00

$77.35

15

CUSHION, FRONT RH This part replaces 94622-15H00.

94622-15H01

$29.92

16

CUSHION, FRONT LH This part replaces 94632-15H00.

94632-15H01

$31.32

17

CUSHION, REAR RH This part replaces 94623-15H00.

94623-15H01

$24.32

18

CUSHION, REAR LH This part replaces 94633-15H00.

94633-15H01

$23.63

19

CUSHION

33652-02H00

$9.55

20

SCREW (5X16)

09132-05053

$2.28

21

CUSHION

47191-06J00

$4.85

22

BRACKET RH This part replaces 94520-24F10.

94520-24F20

$25.52

23

BRACKET LH This part replaces 94530-24F10.

94530-24F20

$32.77

24

BOLT

01550-0620B

$2.39

25

NUT COWL

94484-24F00

$4.03

26

CLIP

09409-07332

$2.50
