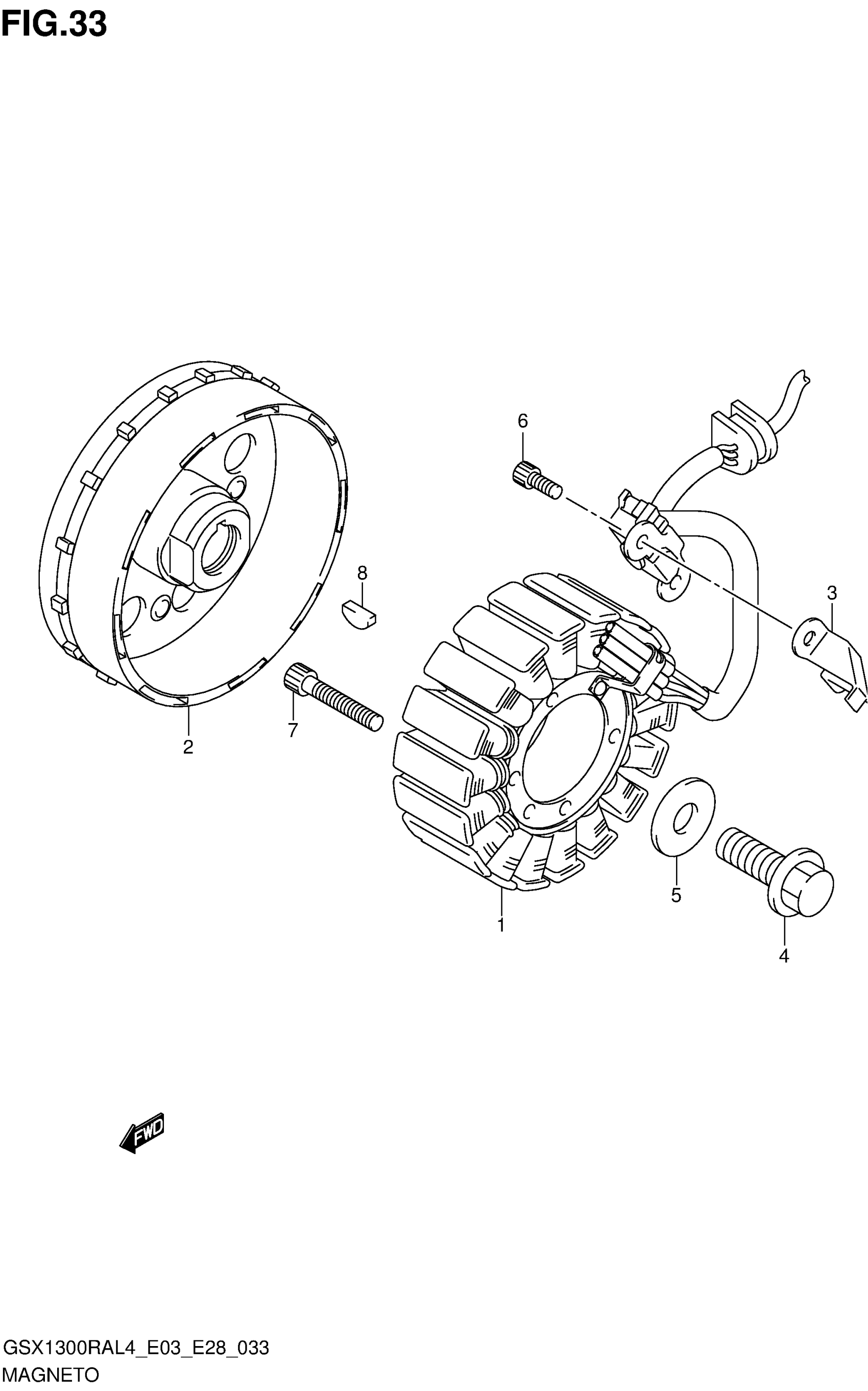

Suzuki GSX1300RAL4 (2014) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY, MAGNETO This part replaces 32101-24F20.

32101-24F30

$423.88

2

ROTOR ASSY, MAGNETO

32102-24F20

$863.83

3

CLAMP, MAGNETO LEAD

32371-24F00

$6.30

4

BOLT (12X30)

09103-12028

$6.70

5

WASHER (12X30X3.0)

09160-12036

$3.93

6

BOLT

07130-0512A

$2.19

7

BOLT

07130-0635A

$3.16

8

KEY

09420-04008

$3.42
