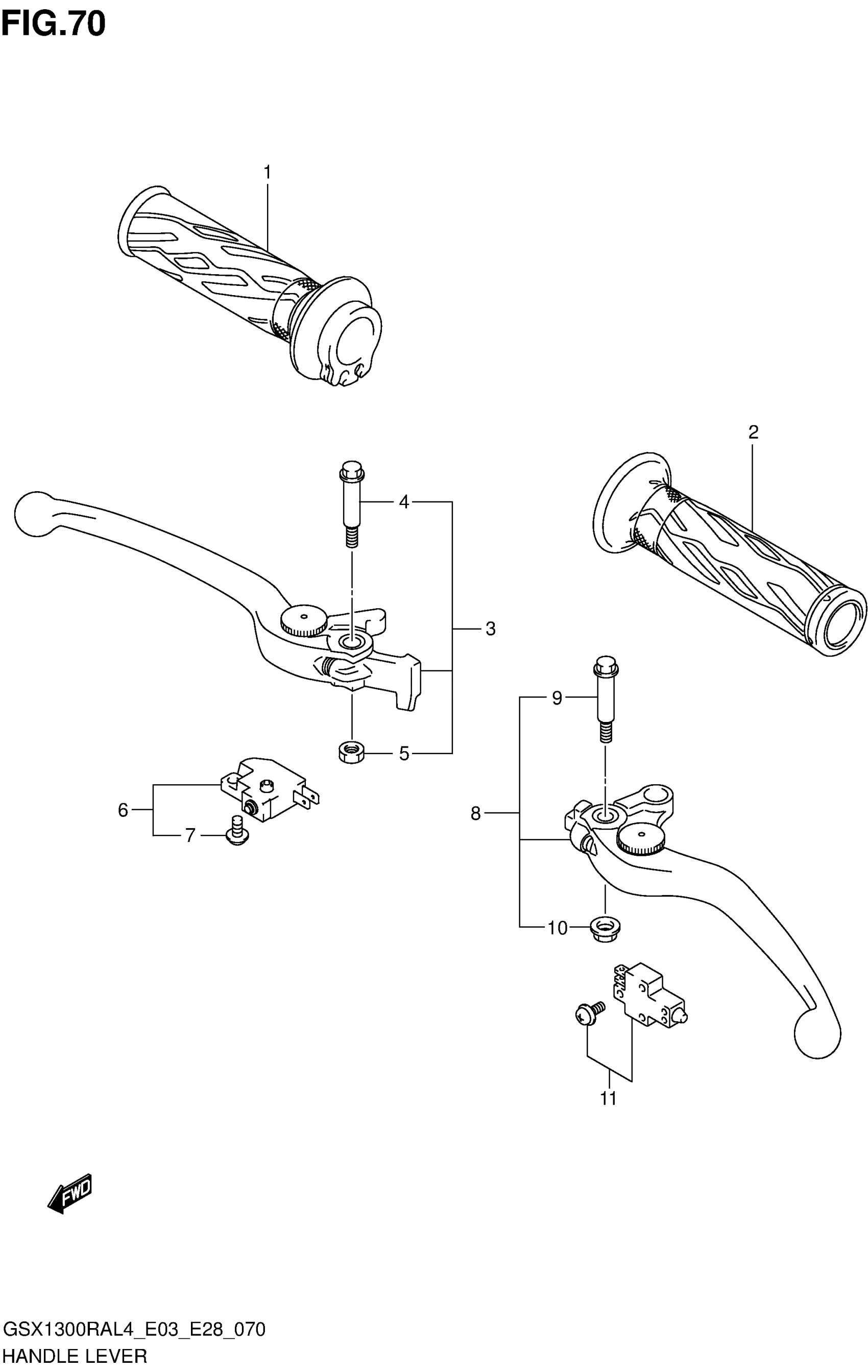

Suzuki GSX1300RAL4 (2014) HANDLE LEVER Diagram

#

Description

Price

1

GRIP,THROTTLE This part replaces 57110-21H01.

57110-21H02

$20.33

2

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$11.13

3

LEVER ASSY, BRAKE

57300-14G22

$78.30

4

BOLT, LEVER PIVOT

57431-17H02

$7.13

5

NUT

08319-2106A

$1.91

6

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

7

SCREW

57465-17C00

$2.19

8

LEVER ASSY, CLUTCH

57500-24F30

$87.23

9

BOLT, LEVER PIVOT

57431-17H02

$7.13

10

NUT

08316-1006B

$2.50

11

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
