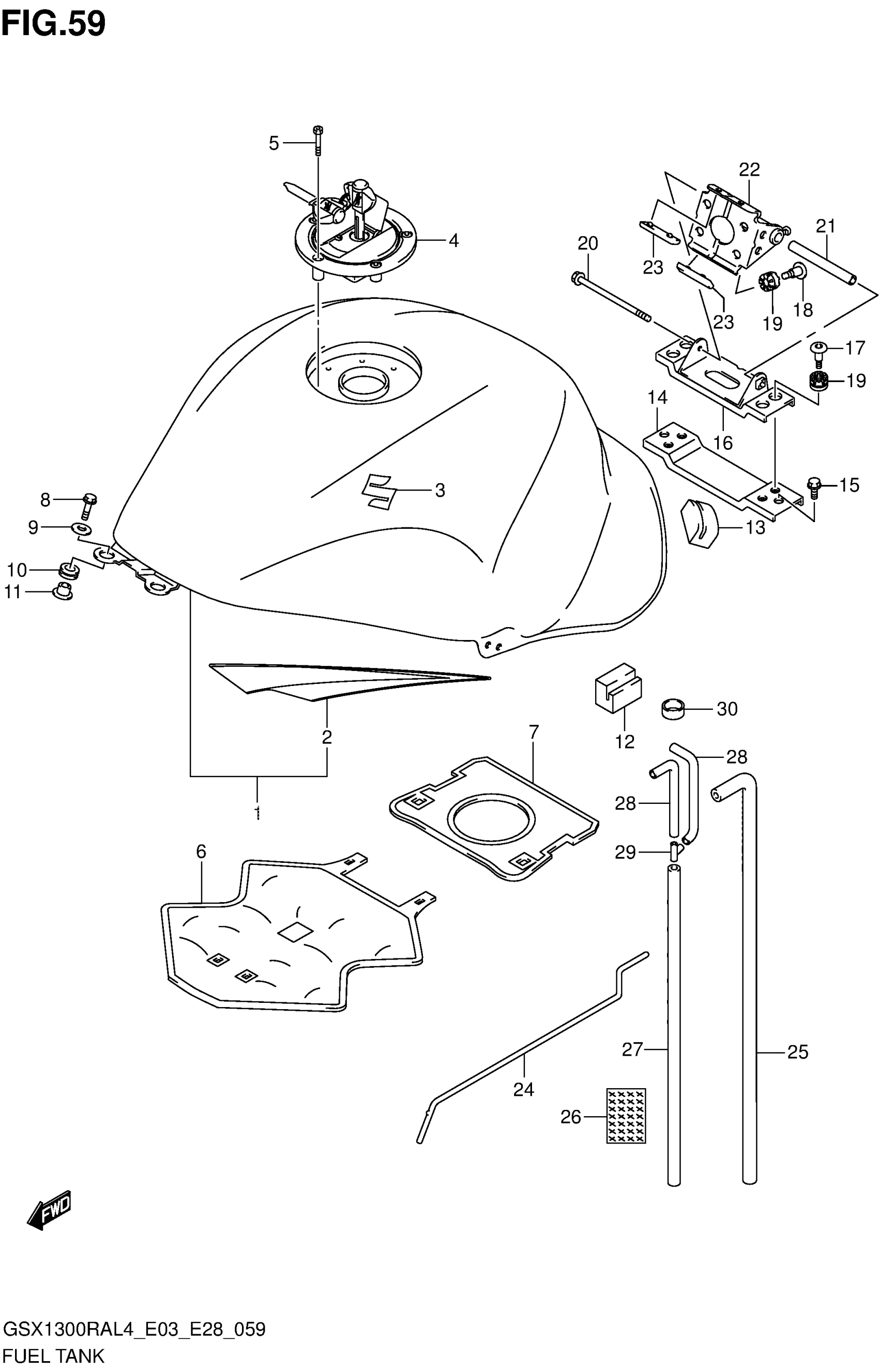

Suzuki GSX1300RAL4 (2014) FUEL TANK (GSX1300RAL4 E03) Diagram

#

Description
Price

1

TANK ASSY, FUEL (YELLOW) | FOR AA3

44100-15H90-6UX

Unavailable

1

TANK ASSY,FUEL( | FOR AGS This part replaces 44100-15H90-YVZ.

44100-15H91-YVZ

$1,574.38

1

TANK ASSY, FUEL (BLACK) | FOR AJP

44100-15H90-YKY

Unavailable

2

TAPE SET | FOR 6UX

68110-15H20-AV8

Unavailable

2

TAPE SET | FOR YVZ

68110-15H20-AV9

Unavailable

2

TAPE SET | FOR YKY

68110-15H20-AWF

Unavailable

3

EMBLEM, "S"

68111-47HA0

$40.44

4

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

5

BOLT (5X20)

09106-05017

$2.83

6

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

$176.77

7

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$74.08

8

SCREW (6X25)

09139-06029

$5.36

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

11

SPACER

44512-16G00

$7.44

12

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

13

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.12

14

BRACKET, FUEL TANK REAR NO.3

44555-15H00

Unavailable

15

BOLT (8X16)

01550-0816A

$2.32

16

BRACKET, FUEL TANK REAR NO.2

44550-15H01

Unavailable

17

SCREW (6X22)

09139-06191

$4.03

18

SCREW (6X22)

09139-06191

$4.03

19

CUSHION

09320-08071

$3.25

20

BOLT

07120-0695B

$4.32

21

SPACER, FUEL TANK REAR

44561-18G00

$16.96

22

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

23

CUSHION, BRACKET

45149-44G00

Unavailable

24

STAY | OPT

44574-35F00

$15.16

25

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$22.32

26

SHIELD, DRAIN HOSE HEAT

44427-15H00

Unavailable

27

HOSE, BREATHER This part replaces 44424-15H00.

44424-15H01

$20.27

28

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

29

3 WAY

09367-06007

$3.46

30

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable
