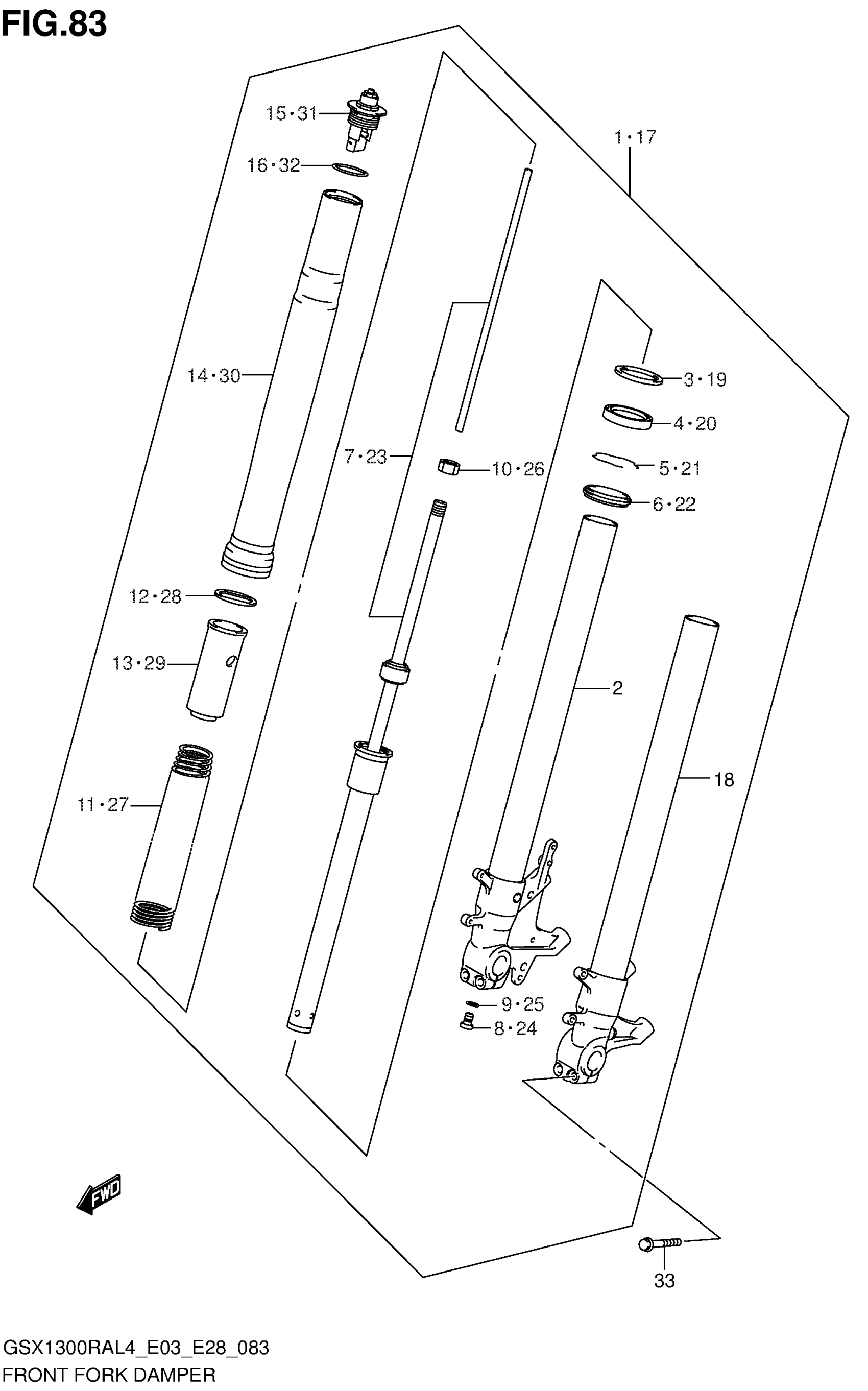

Suzuki GSX1300RAL4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FRO This part replaces 51103-24F71.

51103-24F72

$1,844.32

2

TUBE,INNER,RH This part replaces 51110-24F71.

51110-24F72

$881.45

3

WASHER

51158-14200

$5.05

4

OIL SEAL

51153-41G00

$25.17

5

RING, STOPPER

51156-14200

$5.05

6

SEAL, DUST

51173-41G00

$26.58

7

CYLINDER

51146-24F50

Unavailable

8

BOLT

51147-24F50

$8.73

9

GASKET

51148-41310

$2.26

10

.NUT, ROD

51352-13A60

$3.03

11

SPRING, FRONT

51171-24F50

$126.18

12

GUIDE, SPRING

51158-40F30

$10.42

13

SPACER, SPRING

51176-40F30

$26.38

14

TUBE, OUTER

51130-24F50

Unavailable

15

CAP, FRONT FORK

51351-24F50

Unavailable

16

..O RING

62278-14100

$4.03

17

DAMPER ASSY,FR This part replaces 51104-24F70.

51104-24F71

$1,899.63

18

TUBE,INNER,LH This part replaces 51120-24F70.

51120-24F71

$881.45

19

WASHER

51158-14200

$5.05

20

OIL SEAL

51153-41G00

$25.17

21

RING, STOPPER

51156-14200

$5.05

22

SEAL, DUST

51173-41G00

$26.58

23

CYLINDER

51146-24F50

Unavailable

24

BOLT

51147-24F50

$8.73

25

GASKET

51148-41310

$2.26

26

.NUT, ROD

51352-13A60

$3.03

27

SPRING, FRONT

51171-24F50

$126.18

28

GUIDE, SPRING

51158-40F30

$10.42

29

SPACER, SPRING

51176-40F30

$26.38

30

TUBE, OUTER

51130-24F50

Unavailable

31

CAP, FRONT FORK

51351-24F50

Unavailable

32

..O RING

62278-14100

$4.03

33

BOLT

51166-24F60

$5.58
