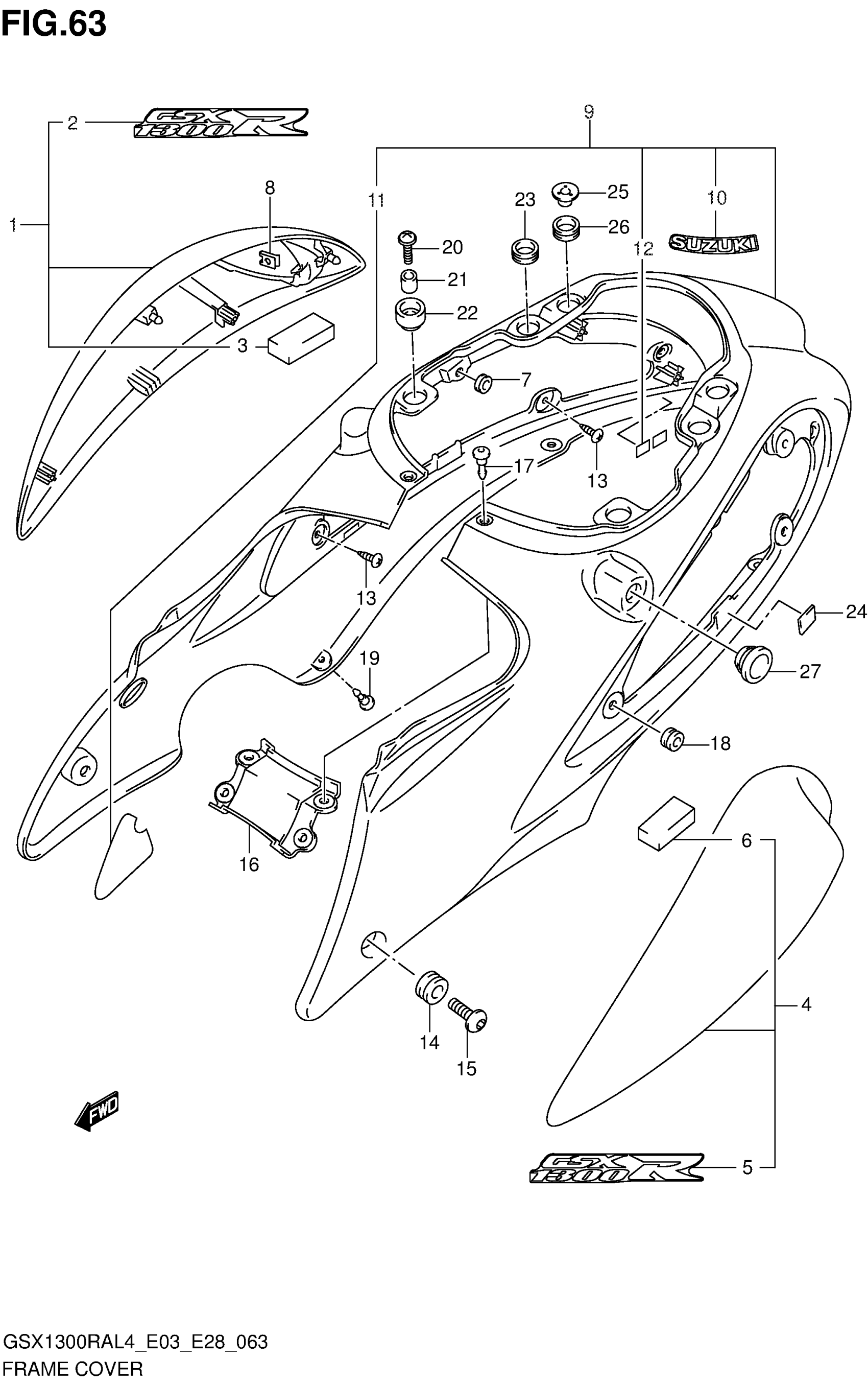

Suzuki GSX1300RAL4 (2014) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR AA3

47110-15H01-6UX

$239.58

1

COVER, FRAME RH (RED) | FOR AGS

47110-15H01-YVZ

$235.15

1

COVER, FRAME RH (BLUE) | FOR AJP

47110-15H01-YKY

Unavailable

2

EMBLEM, FRAME COVER | FOR 6UX

68131-15H00-AWG

$15.93

2

EMBLEM, FRAME COVER | FOR YVZ

68131-15H00-AWH

$15.93

2

EMBLEM, FRAME COVER | FOR YKY

68131-15H00-AWJ

Unavailable

3

CUSHION

47511-15H00

$3.71

4

COVER, FRAME LH (BLACK) | FOR AA3

47210-15H01-6UX

Unavailable

4

COVER, FRAME LH (RED) | FOR AGS

47210-15H01-YVZ

$199.88

4

COVER, FRAME LH (BLUE) | FOR AJP

47210-15H01-YKY

Unavailable

5

EMBLEM, FRAME COVER | FOR 6UX

68131-15H00-AWG

$15.93

5

EMBLEM, FRAME COVER | FOR YVZ

68131-15H00-AWH

$15.93

5

EMBLEM, FRAME COVER | FOR YKY

68131-15H00-AWJ

Unavailable

6

CUSHION

47511-15H00

$3.71

7

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

8

NUT This part replaces 09148-04034.

09148-04015

$2.36

9

COVER,FRAME CTR | FOR AA3 This part replaces 47310-15H20-YVB.

47310-15H21-YVB

$416.47

9

COVER,FRAME CTR | FOR AGS This part replaces 47310-15H20-YVZ.

47310-15H21-YVZ

$445.97

9

COVER, FRAME CENTER (BLUE) | FOR AJP

47310-15H20-YKY

Unavailable

10

EMBLEM,"SUZUKI" | FOR AA3 This part replaces 68641-19F00-17U.

68641-19F01-17U

$9.15

10

.EMBLEM,"SUZUKI" (WHITE) | FOR AGS,AJP This part replaces 68641-19F00-YWW.

68641-19F01-YWW

$9.99

11

TAPE, CENTER

47312-15H00

$18.48

12

CUSHION

45516-01H00

$5.32

13

SCREW (5X15)

09136-05062

$2.19

14

CUSHION

09320-09016

$1.97

15

SCREW (6X20)

09139-06190

$4.17

16

LID, CENTER (BLACK) | FOR AA3

47411-15H00-YVB

Unavailable

16

LID, CENTER (RED) | FOR AGS

47411-15H00-YVZ

Unavailable

16

LID, CENTER (BLUE) | FOR AJP

47411-15H00-YKY

$57.77

17

CLIP (BLACK)

09409-06314-5PK

$2.78

18

CUSHION

09320-09016

$1.97

19

CLIP

09409-06329

$2.79

20

SCREW (6X20)

09136-06105

$1.97

21

SPACER (6.5X10X11)

09180-06288

$2.06

22

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.37

23

CUSHION, UPPER CENTER

47191-24F00

$5.17

24

CUSHION, LOWER

33651-37000

$4.48

25

WASHER,FRAME COVER

47190-24F21

$9.94

26

CUSHION, UPPER REAR

47191-24F30

$5.36

27

SPACER, SIDE CENTER

47191-24F20

$7.22
