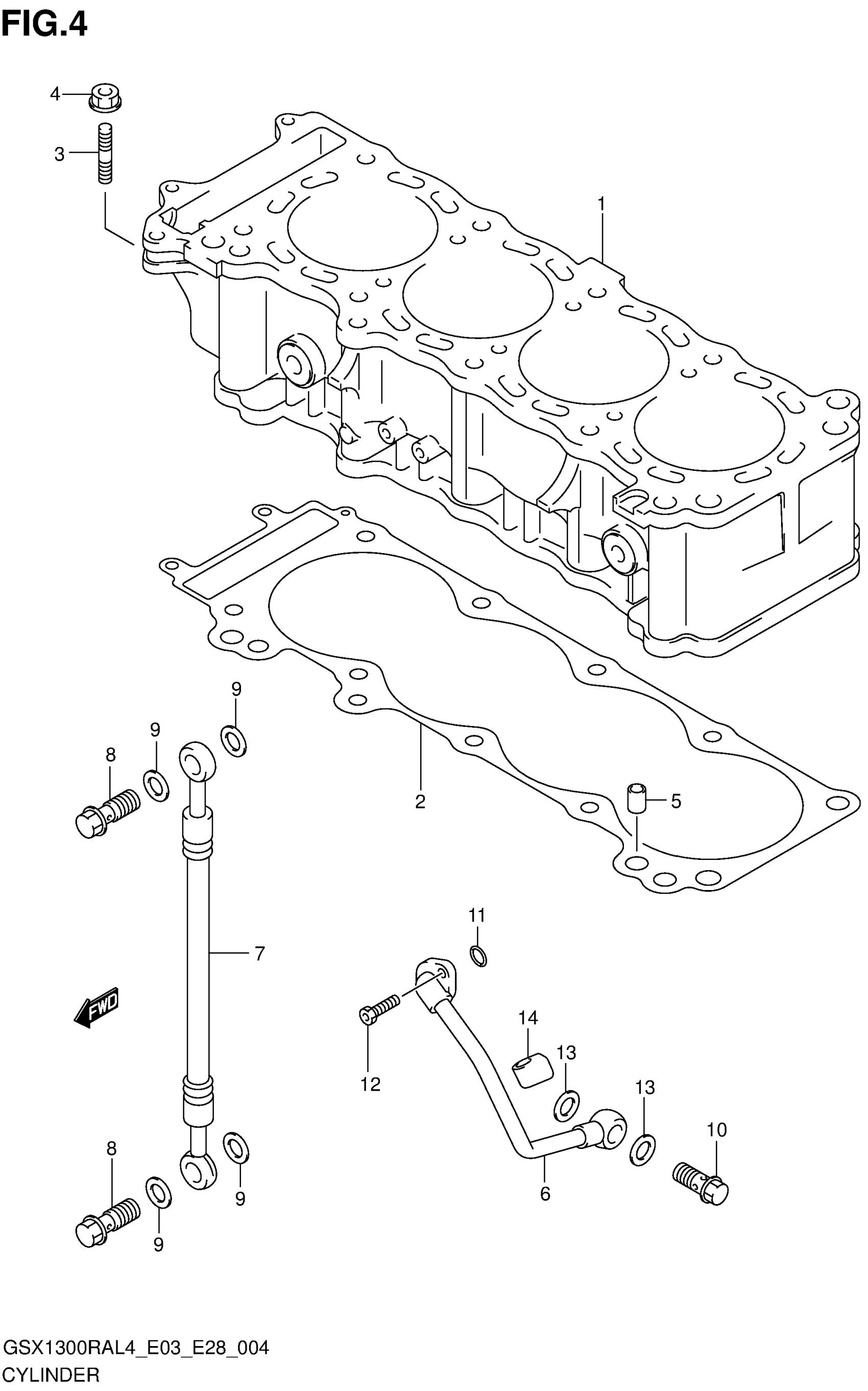

Find the part on the Cylinder diagram for your 2014 Suzuki GSX1300RAL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki GSX1300RAL4 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-15H00-0F0

1

$1,712.95

In stock

2

GASKET

11241-15H00

1

$51.54

In stock

3

BOLT,STUD

01421-0625B

2
Out of stock

4

NUT

08316-1006B

2
Out of stock

5

PIN

04211-11169

2

$1.90

In stock

6

PIPE,CRANKCASE OIL

11280-24F00

1

$81.72

In stock

7

HOSE, OIL

11282-24F00

1

$80.66

In stock

8

UNION

09360-10062

2
Out of stock

9

GASKET (10.1X16X1)

09168-10007

4

$1.83

In stock

10

UNION

09360-14012

1

$10.52

In stock

11

1

$4.50

In stock

12

BOLT (6X16)

09106-06073

2
Out of stock

13

.GASKET (14X20X1.5)

09168-14015

2

$2.18

In stock
