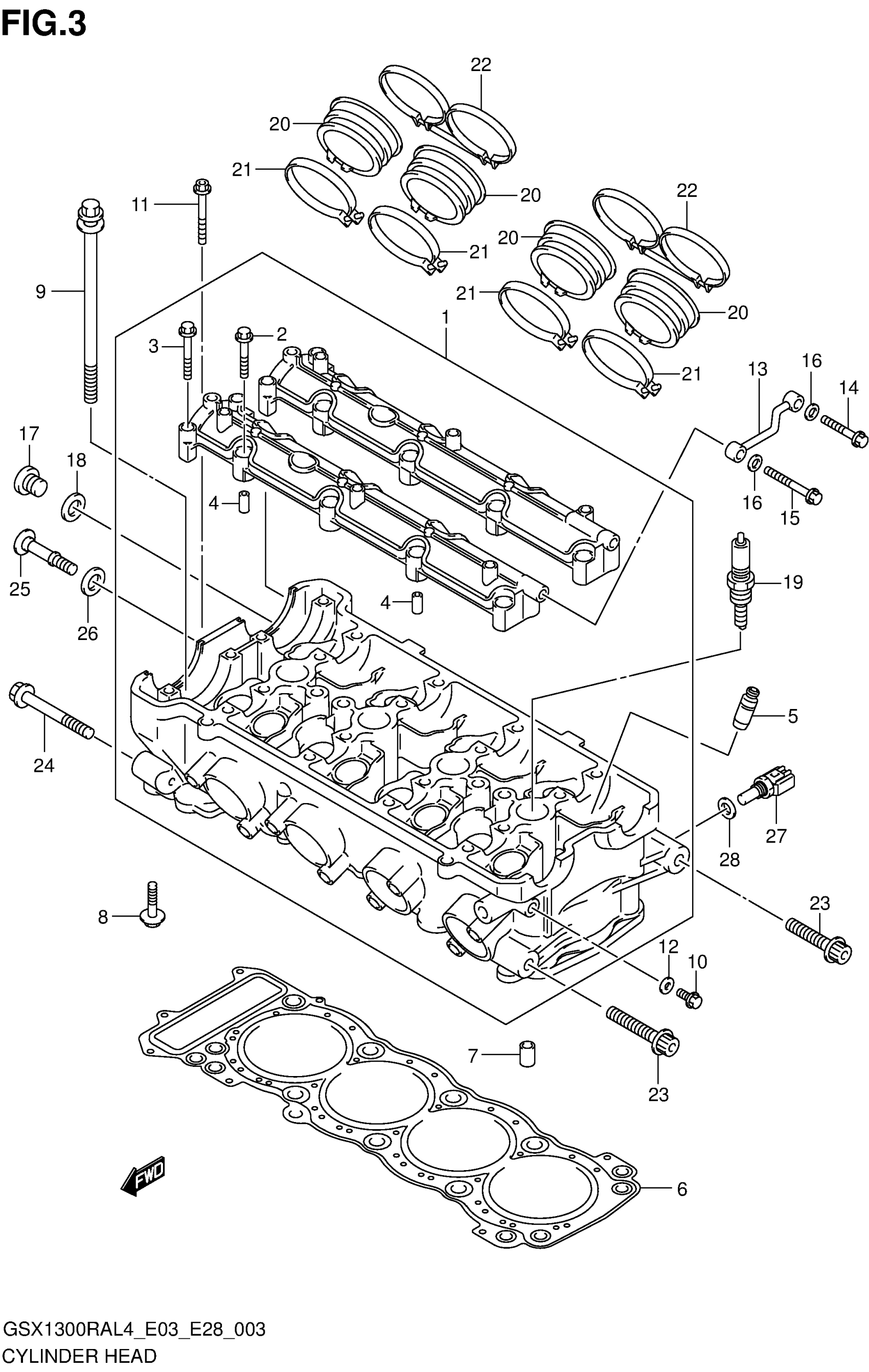

Suzuki GSX1300RAL4 (2014) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLIN This part replaces 11100-15H00.

11100-15H02

$2,223.67

2

BOLT (6X40)

09103-06266

$2.19

3

BOLT (6X45)

09103-06293

$2.64

4

PIN (6.2X8X16)

09206-08007

$2.72

5

GUIDE,VALVE (OS:0.3) | OPT

11115-15H70

$46.98

6

GASKET, CYLINDER HEAD

11141-15H00

$103.68

7

PIN

04211-11169

$1.82

8

BOLT

01550-0630B

$2.80

9

BOLT,CYLINDER HEAD (L180)

11117-15H00

$17.59

10

BOLT (6X12)

09103-06222

$2.35

11

BOLT

07120-0655B

$4.45

12

GASKET (5.8X13X1.2)

09168-06023

$2.09

13

PIPE,OIL

11131-33E01

$52.72

14

BOLT

01550-0635A

$2.38

15

BOLT

01550-0645A

$2.50

16

WASHER

08322-0106A

$1.89

17

PLUG (16X8)

09248-16012

$4.32

18

GASKET (16X22X0.8)

09168-16009

$2.57

19

SPARK PLUG (NGK,CR9EIA-9)

09482-00558

$11.12

19

SPARK PLUG (DENSO,IU27D)

09482-00557

$15.78

19

SPARK PLUG (NGK,CR8EIA-9) | OPT

09482-00556

$9.94

19

SPARK PLUG (NGK,CR10EIA-9) | OPT

09482-00560

$10.31

19

SPARK PLUG (DENSO,IU24D) | OPT

09482-00555

$17.06

19

SPARK PLUG (DENSO,IU31D) | OPT

09482-00559

$21.92

20

PIPE,INTAKE This part replaces 13111-15H00.

13111-15H01

$20.30

21

..CLAMP

09402-60208

$4.75

22

CLAMP

13170-15H10

$26.66

23

BOLT (10X45)

09106-10069

$3.93

24

BOLT (10X60)

09106-10084

$7.03

25

BOLT, CYL HEAD SIDE FACE

11161-33E00

$9.75

26

WASHER

11191-13E00

$4.34

27

SENSOR, WATER TEMPERATURE

13650-49X00

$86.27

28

GASKET (12X17X1)

09168-12017

$2.01
