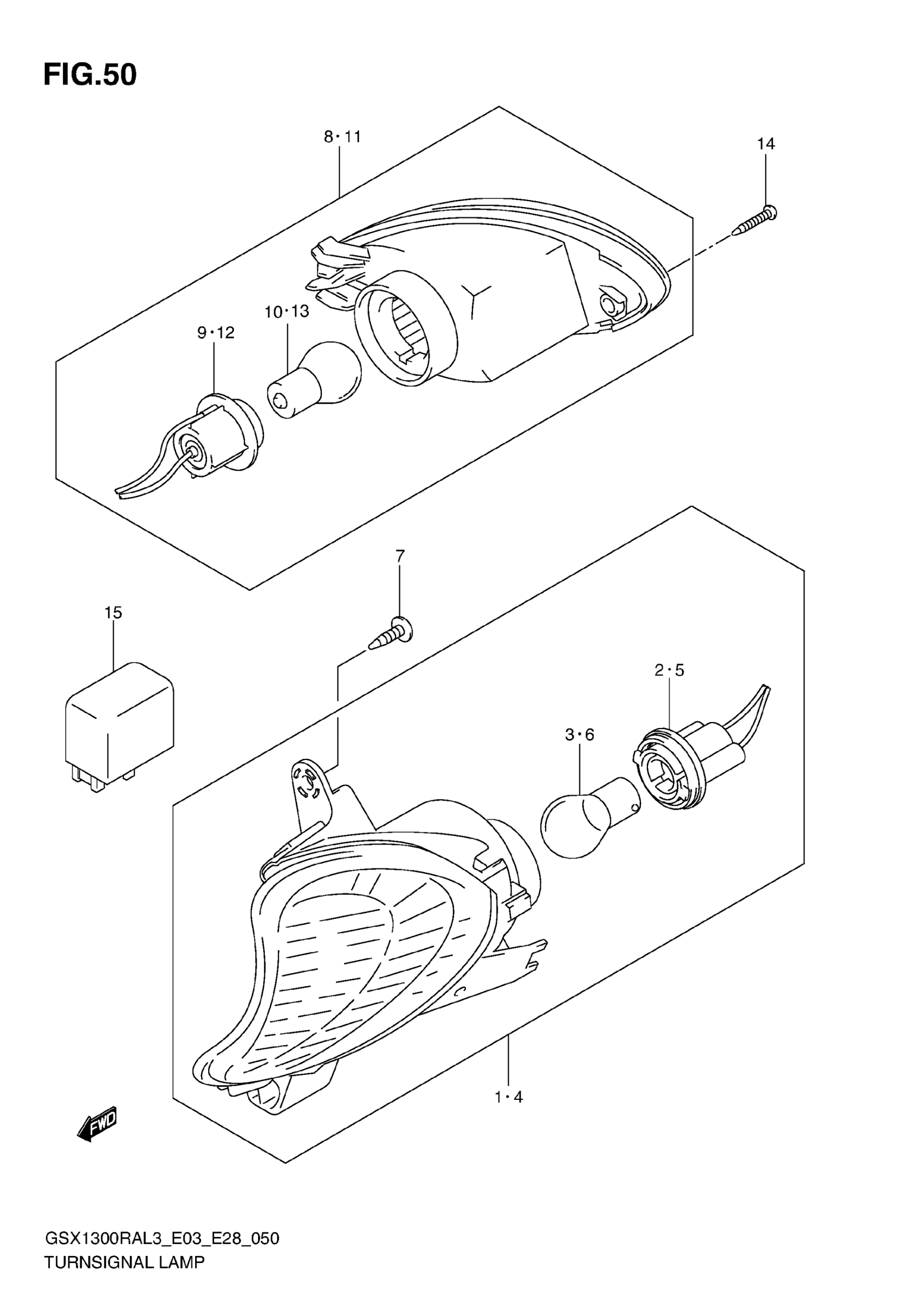

Suzuki GSX1300RAL3 (2013) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN, RH

35601-15H01

$133.53

2

SOCKET & CORD, RH

35618-15H00

$32.85

3

BULB (12V,21W)

09471-12186

$16.18

4

LAMP ASSY, FRONT TURN, LH

35602-15H01

$136.10

5

SOCKET & CORD, LH

35638-15H00

$32.85

6

BULB (12V,21W)

09471-12186

$16.18

7

SCREW

03541-0516B

$1.77

8

LAMP ASSY, REAR TURN, RH

35603-15H01

$109.83

9

SOCKET & CORD, RH

35658-15H00

$32.85

10

BULB (12V,21W)

09471-12186

$16.18

11

LAMP ASSY, REAR TURN, LH

35604-15H01

$109.83

12

SOCKET & CORD, LH

35678-15H00

$32.85

13

BULB (12V,21W)

09471-12186

$16.18

14

SCREW (4X20)

09132-04032

$1.98

15

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
