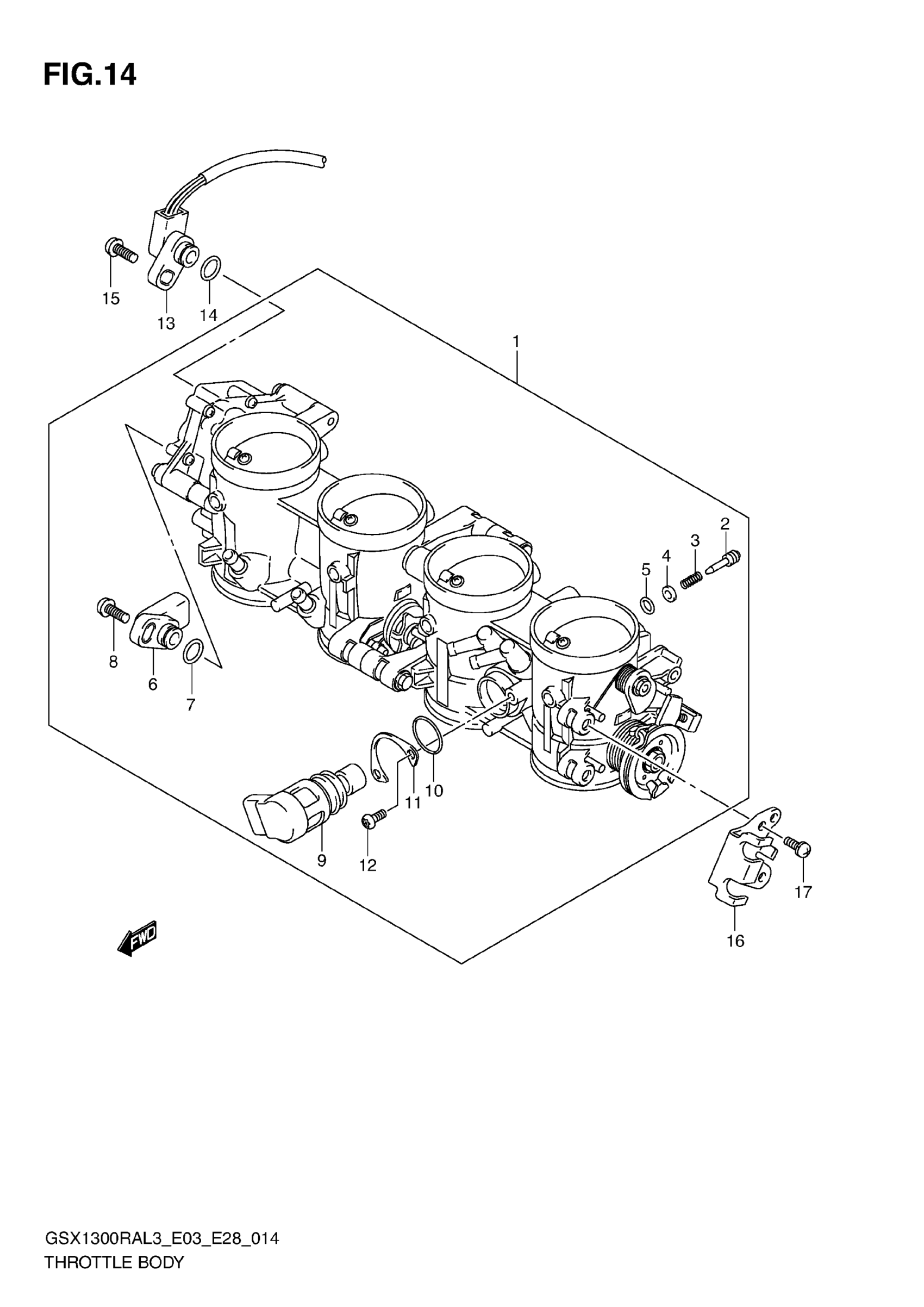

Suzuki GSX1300RAL3 (2013) THROTTLE BODY (GSX1300RAL3 E28) Diagram

#

Description
Price

1

THROTTLE BODY

13406-15H20

$2,684.82

2

SCREW, AIR ADJUST

13269-18G00

$13.35

3

SPRING, AIR SCREW

13271-43E00

Unavailable

4

WASHER

13291-26E00

$2.80

5

O RING

13295-26E00

$3.97

6

SENSOR ASSY, THROTTLE MAIN

13580-18G00

$191.97

7

O RING

13575-40F00

$3.85

8

SCREW

13605-40F00

$3.50

9

VALVE ASSY, ISC

18117-26J00

$416.73

10

O RING

18119-05H00

$4.47

11

PLATE, ISC VALVE

13428-15H00

Unavailable

12

SCREW

13605-15H00

$8.03

13

SENSOR ASSY, THROTTLE SUB

13580-40F31

$197.79

14

O RING

13575-40F00

$3.85

15

SCREW

13605-40F00

$3.50

16

PLATE, STAY

13565-15H00

Unavailable

17

SCREW

13601-21H00

Unavailable
