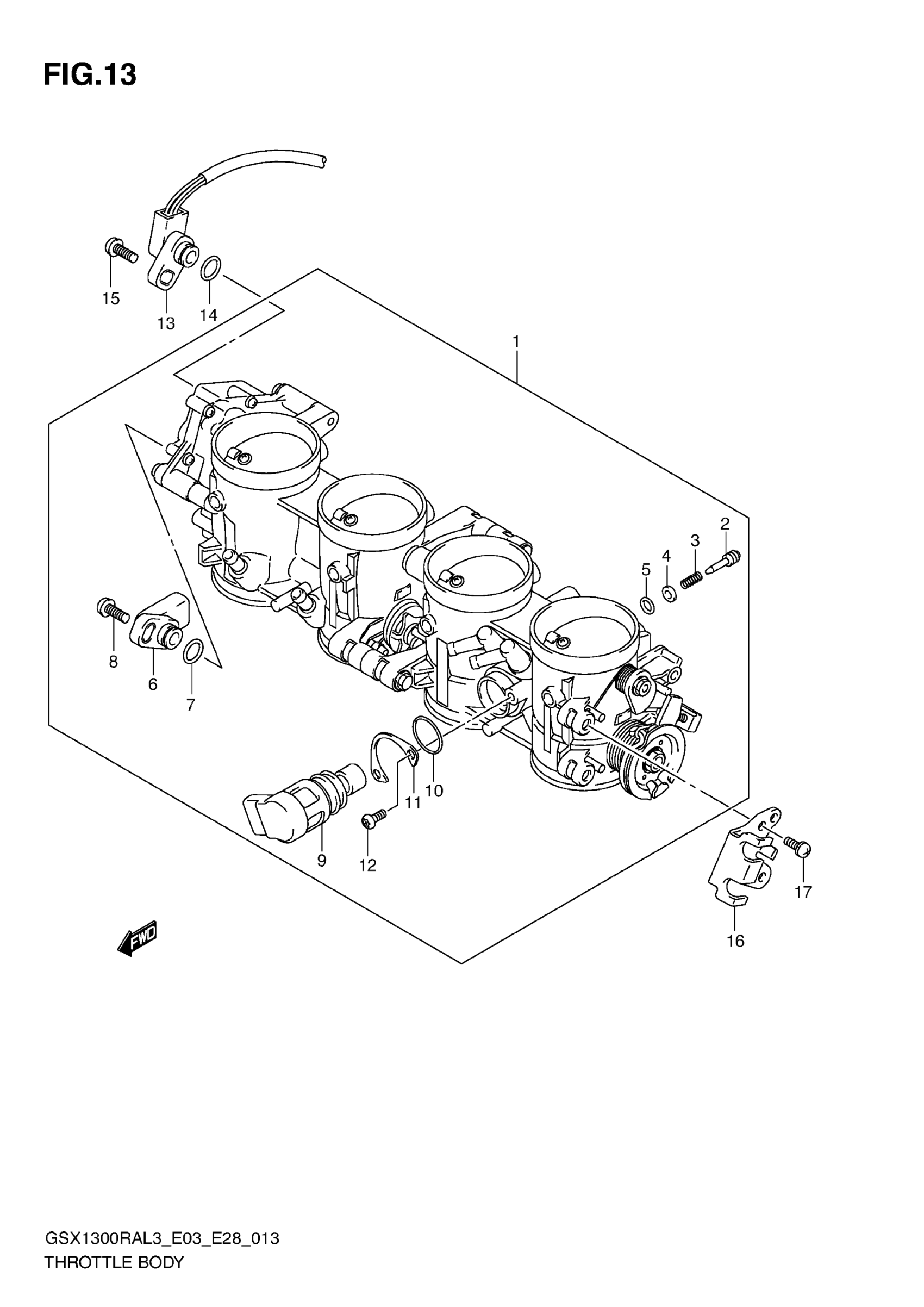

Suzuki GSX1300RAL3 (2013) THROTTLE BODY (GSX1300RAL3 E03) Diagram

#

Description
Price

1

THROTTLE BODY

13406-15H20

$2,459.07

2

SCREW, AIR ADJUST

13269-18G00

$11.83

3

SPRING, AIR SCREW

13271-43E00

Unavailable

4

WASHER

13291-26E00

$2.93

5

O RING

13295-26E00

$4.34

6

SENSOR ASSY, THROTTLE MAIN

13580-18G00

$205.80

7

O RING

13575-40F00

$4.09

8

SCREW

13605-40F00

$3.71

9

VALVE ASSY, ISC

18117-26J00

$374.48

10

O RING

18119-05H00

$3.95

11

PLATE, ISC VALVE

13428-15H00

Unavailable

12

SCREW

13605-15H00

$7.12

13

SENSOR ASSY, THROTTLE SUB

13580-40F31

$212.03

14

O RING

13575-40F00

$4.09

15

SCREW

13605-40F00

$3.71

16

PLATE, STAY

13565-15H00

Unavailable

17

SCREW

13601-21H00

Unavailable
