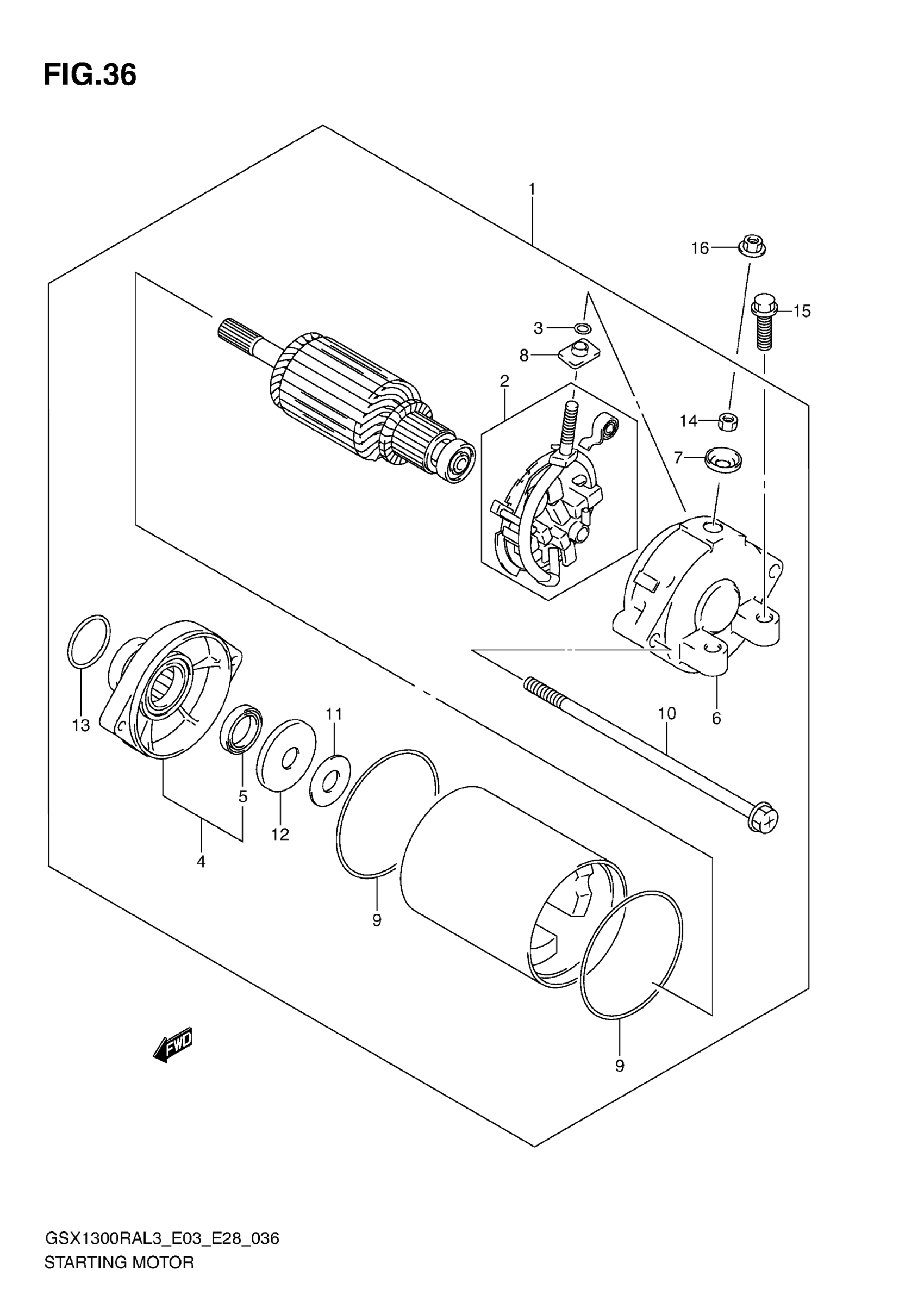

Suzuki GSX1300RAL3 (2013) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING This part replaces 31100-15H20.

31100-15H21

$578.17

2

HOLDER SET, BRUSH

31132-45C00

$71.38

3

O RING

31143-38300

$5.10

4

HOUSING ASSY, STARTER

31150-15H20

Unavailable

5

OIL SEAL

31153-49210

$24.20

6

FRAME, STARTER END

31171-24F00

Unavailable

7

BUSHING

31172-38300

$6.55

8

BUSHING

31173-88C00

Unavailable

9

O RING

31264-44110

$11.87

10

BOLT

31281-24F00

Unavailable

11

SHIM

31361-38300

Unavailable

12

.SHIM SET This part replaces 31361-43400.

31170-43400

Unavailable

13

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

14

.NUT

08310-00067

$2.13

15

BOLT (6X25)

09103-06212

$2.47

16

NUT

08361-3506A

$1.80
