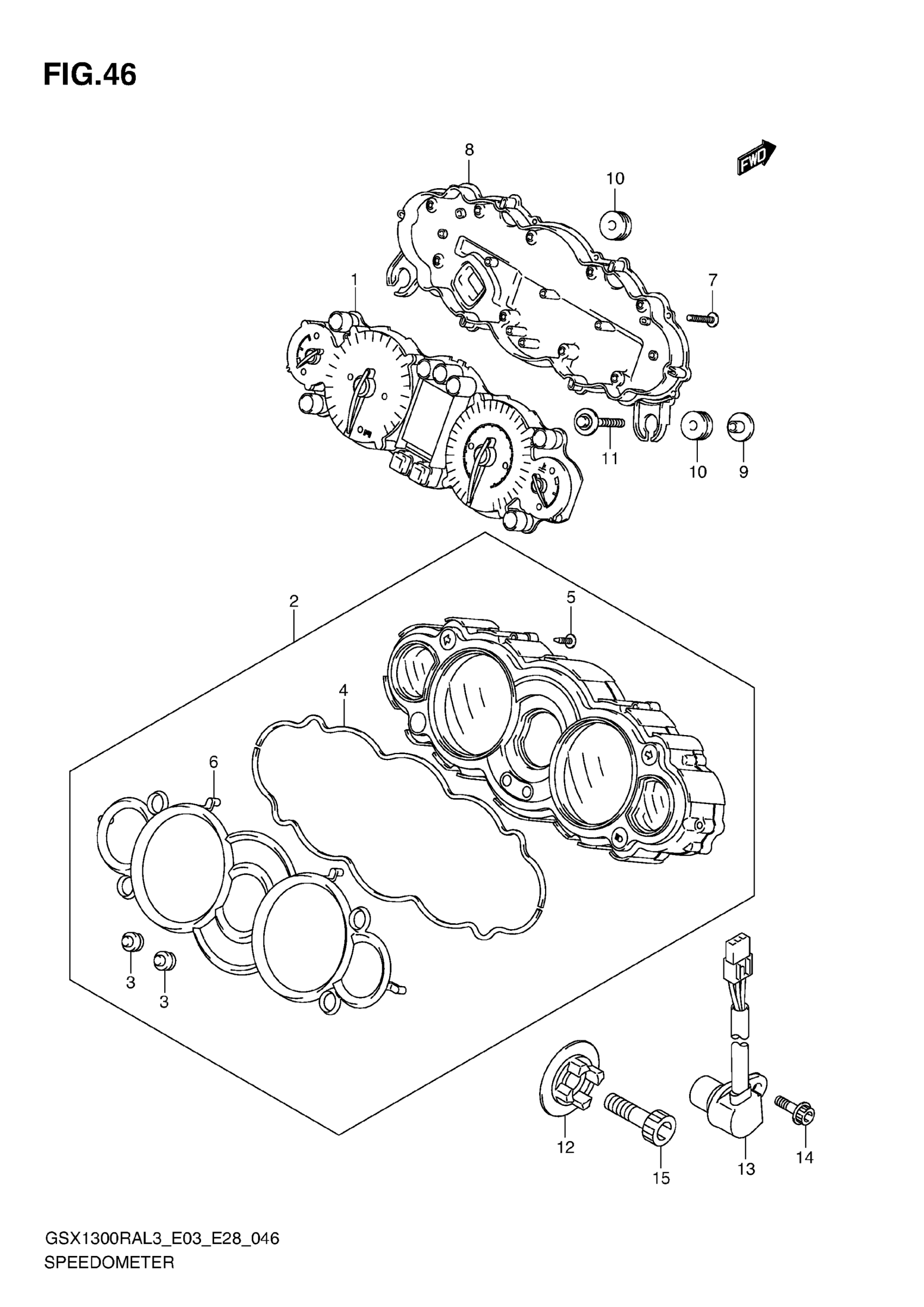

Suzuki GSX1300RAL3 (2013) SPEEDOMETER (GSX1300RAL3 E33) Diagram

#

Description
Price

1

COMBINATION METER

34120-15H30

$1,243.33

2

UPPER CASE ASSY

34150-15H00

$523.65

3

SWITCH RUBBER

34124-39G00

$8.42

4

PACKING

34153-15H00

Unavailable

5

SCREW (2.3X8)

34183-31F10

$3.58

6

RING

34193-15H00

Unavailable

7

SCREW (3X16)

09132-03008

$1.53

8

LOWER CASE ASSY This part replaces 34111-15H00.

34111-15H01

$248.27

9

WASHER, SPEEDOMETER

34187-24F00

$7.57

10

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

11

BOLT (6X25)

09116-06186

$2.61

12

ROTOR, SPEED

34981-47H01

$25.18

13

SENSOR, SPEED

34990-35F00

$127.72

14

BOLT

07120-0512B

$2.61

15

BOLT

07130-0825B

$3.37
