Description

Price

1

CALIPER ASSY,REAR

69100-15H31-999

$496.12

2

PISTON SET

69100-44890

$74.95

3

SEAL SET, PISTON

69102-05880

$17.83

4

BOOT, AXLE

59112-44B00

$8.15

5

SPRING, PAD

69115-44G00

$19.85

6

PIN, PAD

59141-40F00

$35.26

7

PIN, BOLT

69105-44G00

$13.26

8

RETAINER

69116-44G00

$10.01

9

BLEEDER

59121-18410

$7.99

10

CAP, BLEEDER PLUG

55156-66310

$4.73

11

BRACKET

69150-15H31

$184.48

12

BOLT

69182-44G00

$11.40

13

SLEEVE

69185-44G00

$24.37

14

BOOT, SLEEVE

69186-44G00

$12.45

15

PAD SET

69100-15850

$86.03

16

INSULATOR

69132-44G10

$16.74

17

SHIM

69133-44G00

$11.18

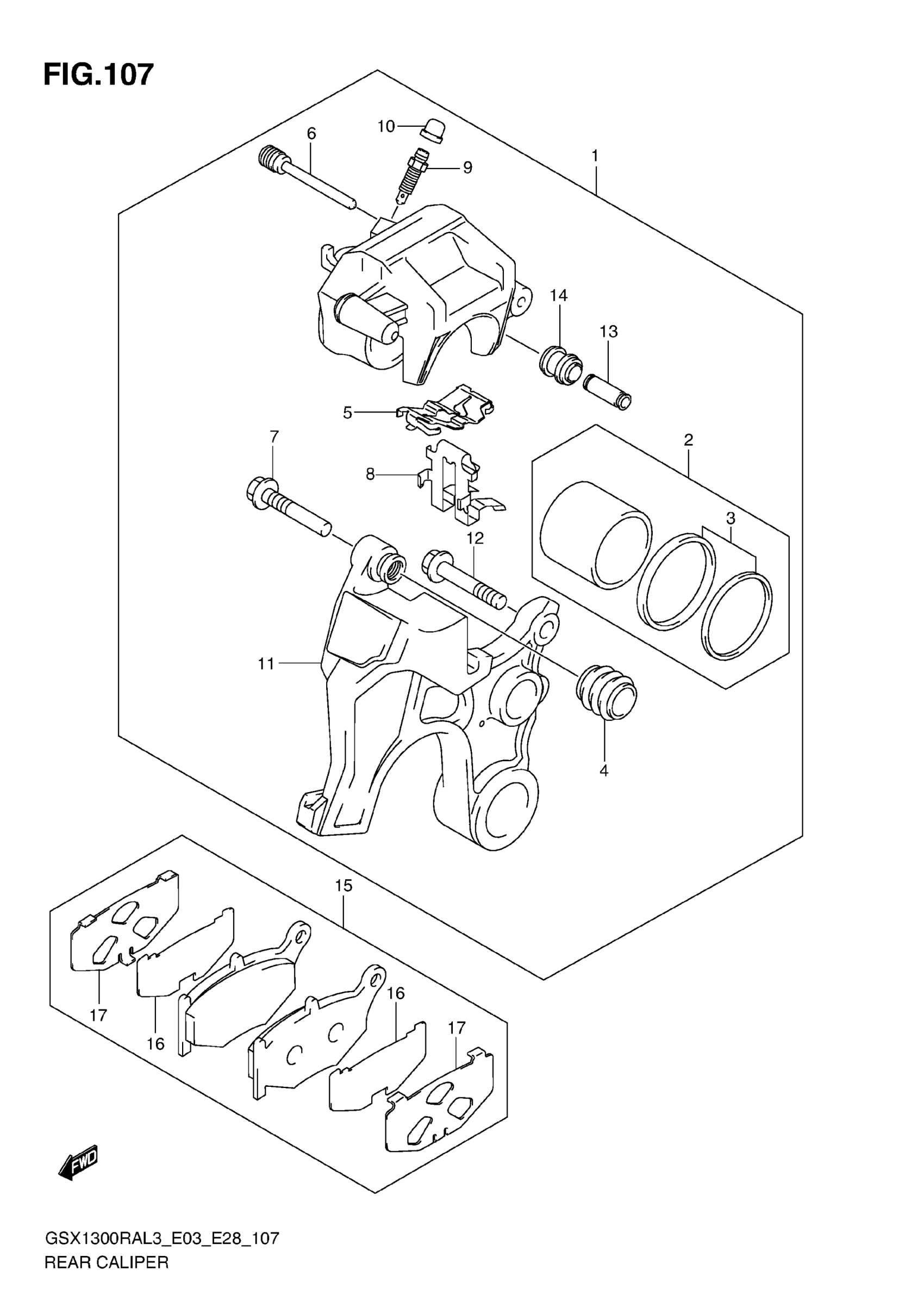

Suzuki GSX1300RAL3 (2013) REAR CALIPER Diagram
