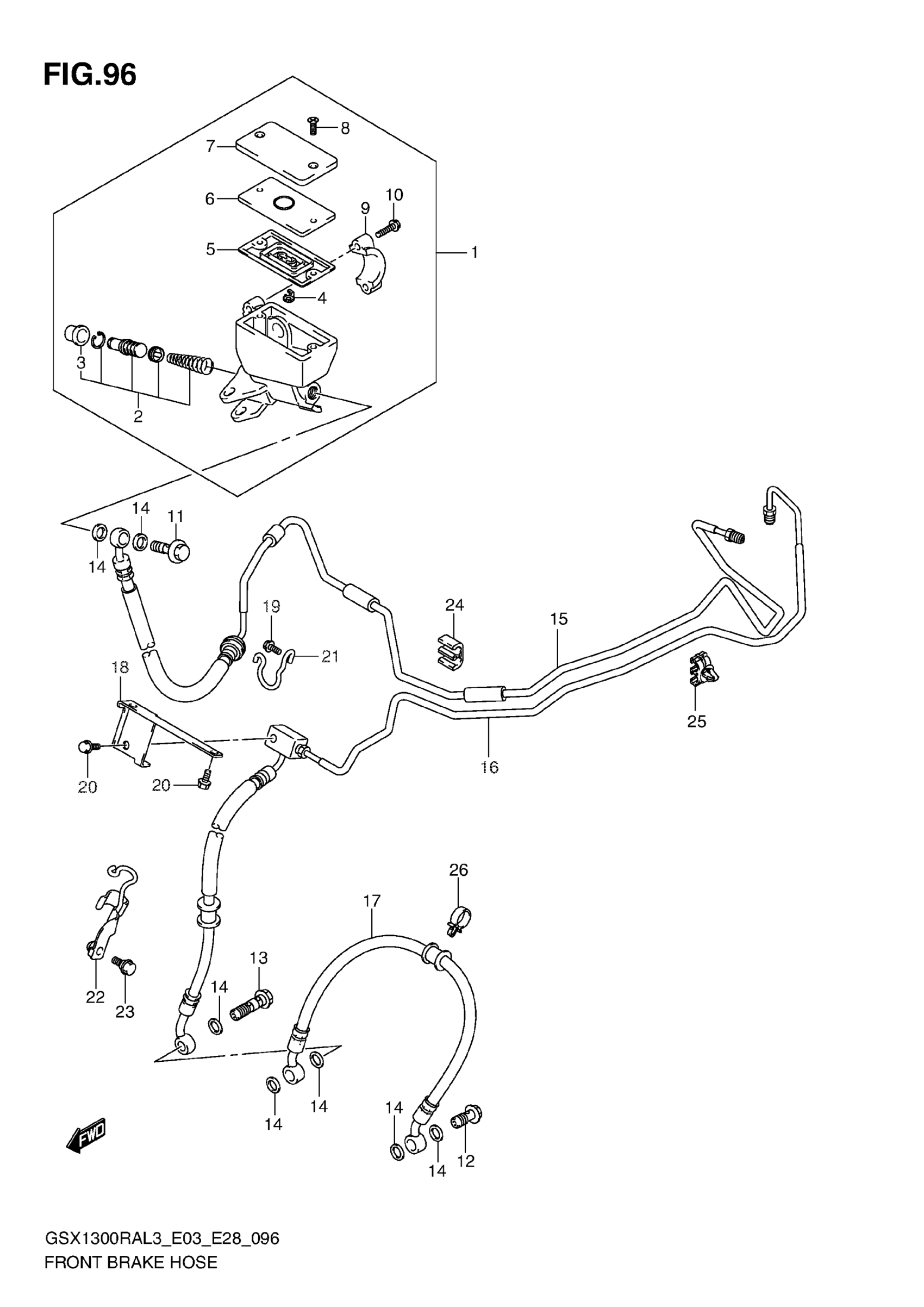

Suzuki GSX1300RAL3 (2013) FRONT BRAKE HOSE (GSX1300RAL3 E03) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-24F10

$346.28

2

PISTON/CUP SET

59600-24810

$54.45

3

BOOT

59666-44300

$5.30

4

PROTECTOR

59664-48B00

$12.43

5

DIAPHRAGM

59667-49460

$8.95

6

PLATE

59668-41C00

$8.54

7

CAP

59669-10G00

$43.22

8

SCREW

69689-49300

$1.81

9

.HOLDER

59671-36500

$11.50

10

BOLT (6X22)

59675-02FA0

$3.49

11

UNION

09360-10062

$5.81

12

UNION | LH

09360-10062

$5.81

13

UNION | RH

09360-10064

$5.81

14

WASHER (10X15X1.5)

09161-10009

$1.83

15

HOSE ASSY,FR BR This part replaces 59200-15H00.

59200-15H01

$117.80

16

HOSE ASSY,FR BR This part replaces 59400-15H00.

59400-15H01

$124.60

17

HOSE, FRONT BRAKE NO.2

59240-15H10

$86.21

18

BRACKET, BRAKE HOSE

59243-15H00

$8.13

19

BOLT

01547-0612A

$2.01

20

BOLT

01547-0616A

$2.01

21

CLAMP, BRAKE HOSE

59245-15H00

$7.67

22

CLAMP, BRAKE HOSE

59270-15H10

$19.68

23

BOLT (6X12)

09111-06107

$2.66

24

CLAMP

09403-06324

Unavailable

25

CLAMP

09403-07334

Unavailable

26

CLAMP

09403-16412

$3.08
