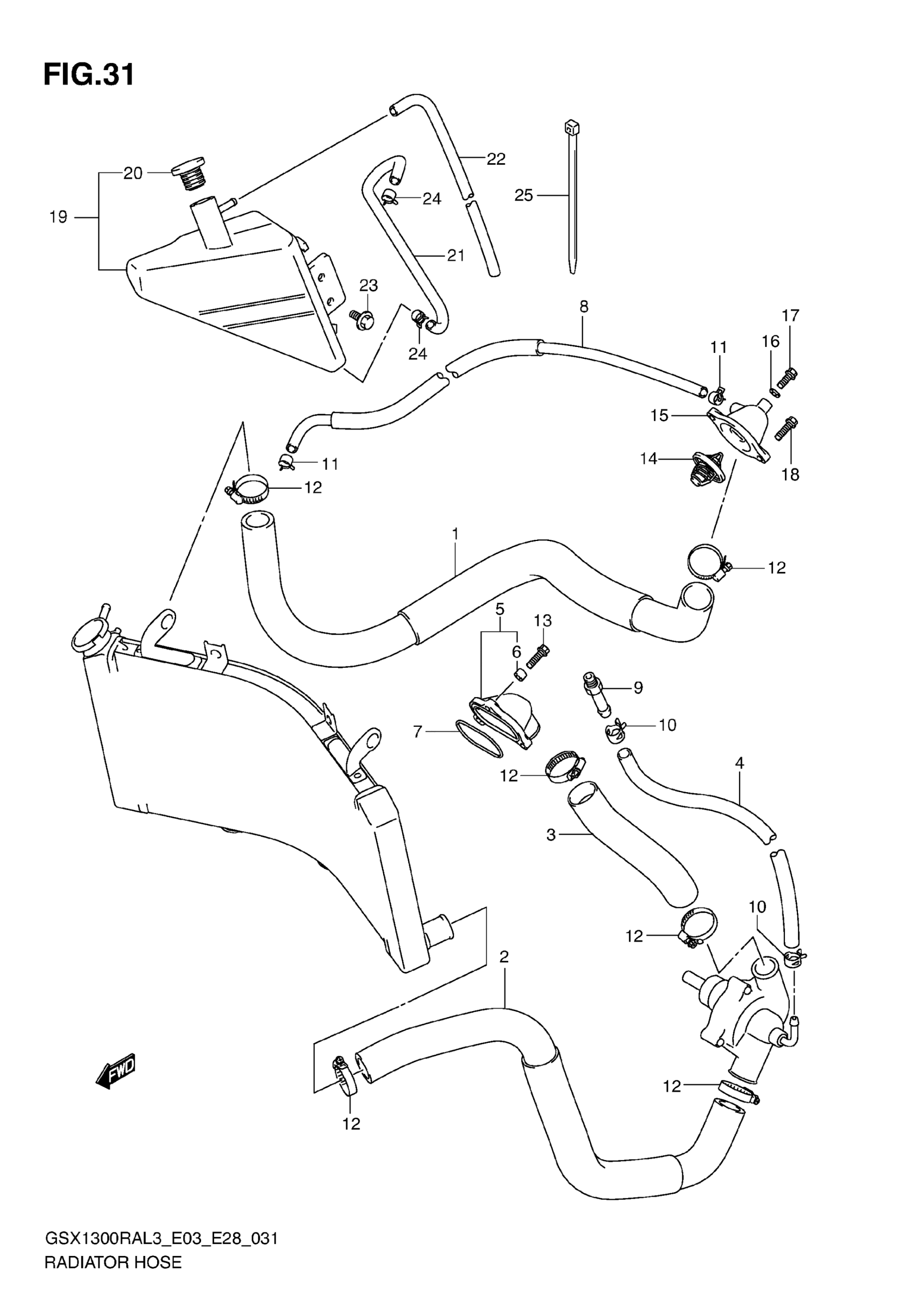

Suzuki GSX1300RAL3 (2013) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-15H00

$68.10

2

HOSE, RADIATOR OUTLET

17852-15H00

$57.67

3

HOSE, CYLINDER INLET

17853-24F00

$20.25

4

HOSE, WATER BYPASS

17854-24F00

$22.92

5

CONNECTOR

17861-33E20

$22.56

6

SPACER (6.5X9X8)

09180-06261

$1.91

7

O-RING

17863-33E00

$4.03

8

HOSE, WATER AIR BLEED

17855-15H00

$33.73

9

UNION

09362-09011

$8.28

10

CLIP This part replaces 09401-12409.

09401-12414

$3.26

11

CLIP (ID:10.5,H:8)

09401-10409

$2.26

12

CLAMP

09402-35501

$7.29

13

BOLT

01547-0620A

$2.03

14

THERMOSTAT,WATER

17670-15H00

$36.79

15

COVER, THERMOSTAT

17661-35F00

$43.10

16

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

17

UNION, AIR VENT

17568-50F00

$4.76

18

BOLT

01547-0620A

$2.03

19

TANK ASSY, RESERVOIR

17910-15H00

$65.01

20

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

21

HOSE, RESERVER TANK INLET

17981-15H00

$16.57

22

HOSE, RESERVER TANK OVERFLOW

17982-22H00

Unavailable

23

BOLT (6X12)

09111-06085

$4.54

24

CLIP

09401-08411

$1.78

25

CLAMP (L:145)

09407-14407

$3.57
