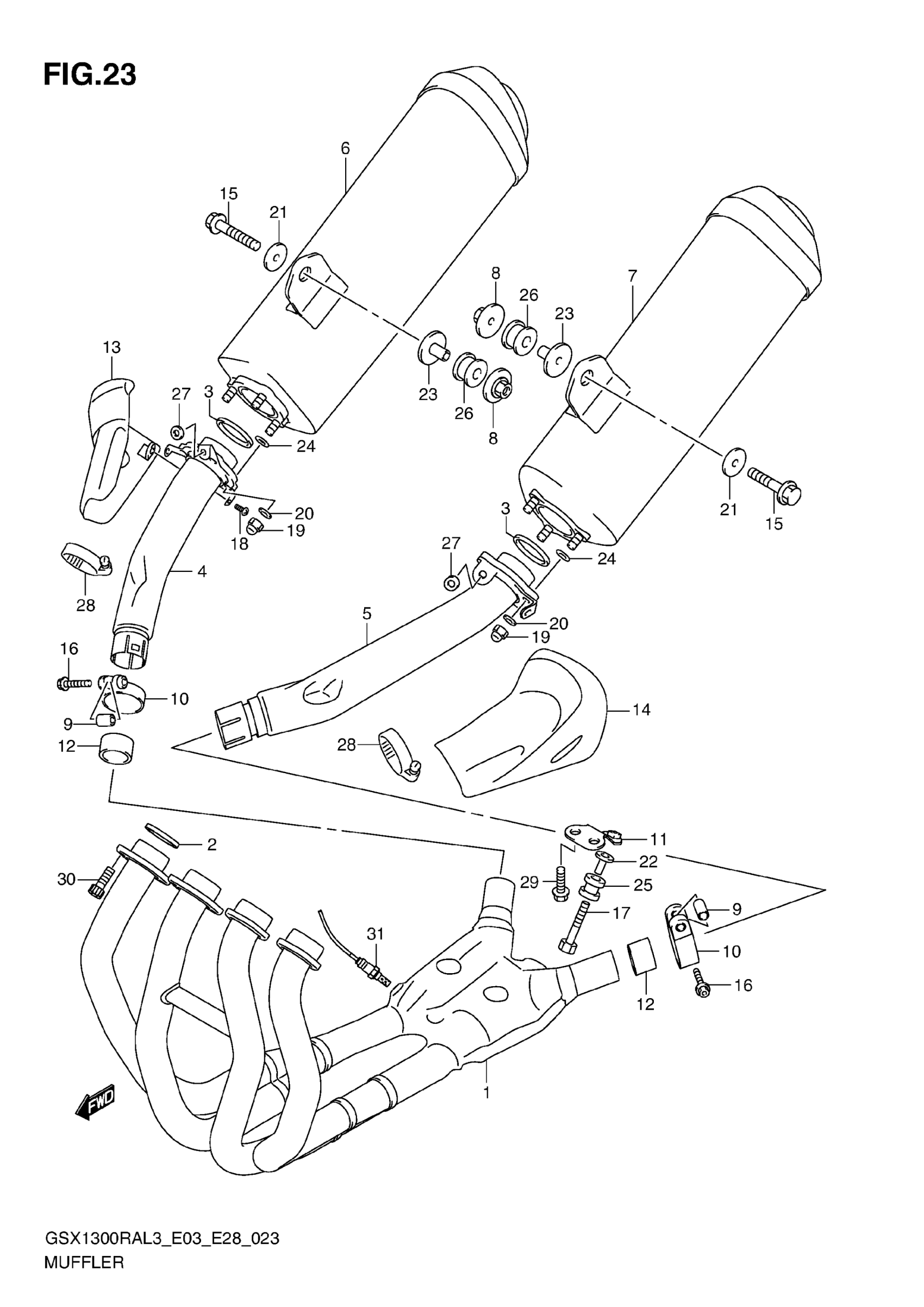

Suzuki GSX1300RAL3 (2013) MUFFLER (GSX1300RAL3 E28) Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-15H02

$2,737.95

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

GASKET, JOINT

14181-33E00

$8.17

4

PIPE, JOINT RH

14230-15H00

Unavailable

5

PIPE, JOINT LH

14240-15H00

Unavailable

6

BODY, MUFFLER RH This part replaces 14310-15H02-H01.

14310-15H03-H01

$2,002.53

7

BODY, MUFFLER LH This part replaces 14340-15H02-H01.

14340-15H03-H01

$2,040.32

8

NUT

14414-15H00

$6.58

9

SPACER

14458-45G10

$8.18

10

CLAMP

14459-15H00

$21.83

11

BRACKET

14770-15H00

$74.80

12

CONNECTOR

14771-15H00

$30.72

13

COVER, FRONT RH

14780-15H00

$206.73

14

COVER, FRONT LH

14790-15H00

$206.73

15

BOLT (8X45)

09103-08358

$3.42

16

BOLT (8X40)

09103-08392

$3.62

17

BOLT (8X45)

09118-08152-A05

$5.24

18

SCREW (6X12)

09139-06027

$2.16

19

NUT

09159-08116

$9.00

20

WASHER (8.5X18X1.6)

09160-08059

$1.68

21

WASHER (8.5X28X1.5)

09160-08142

$2.76

22

SPACER (8.6X12X24.2)

09180-08152

$5.83

23

SPACER (8.6X12X25)

09180-08216

$8.43

24

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

25

CUSHION

09320-12048

$5.11

26

CUSHION

09320-12049

$10.68

27

CUSHION

09321-10018

$5.45

28

CLAMP

09402-70503

$18.42

29

BOLT

01550-0820A

$2.23

30

BOLT

07130-0825A

$3.04

31

SENSOR, OXYGEN

18213-15H10

$399.52
