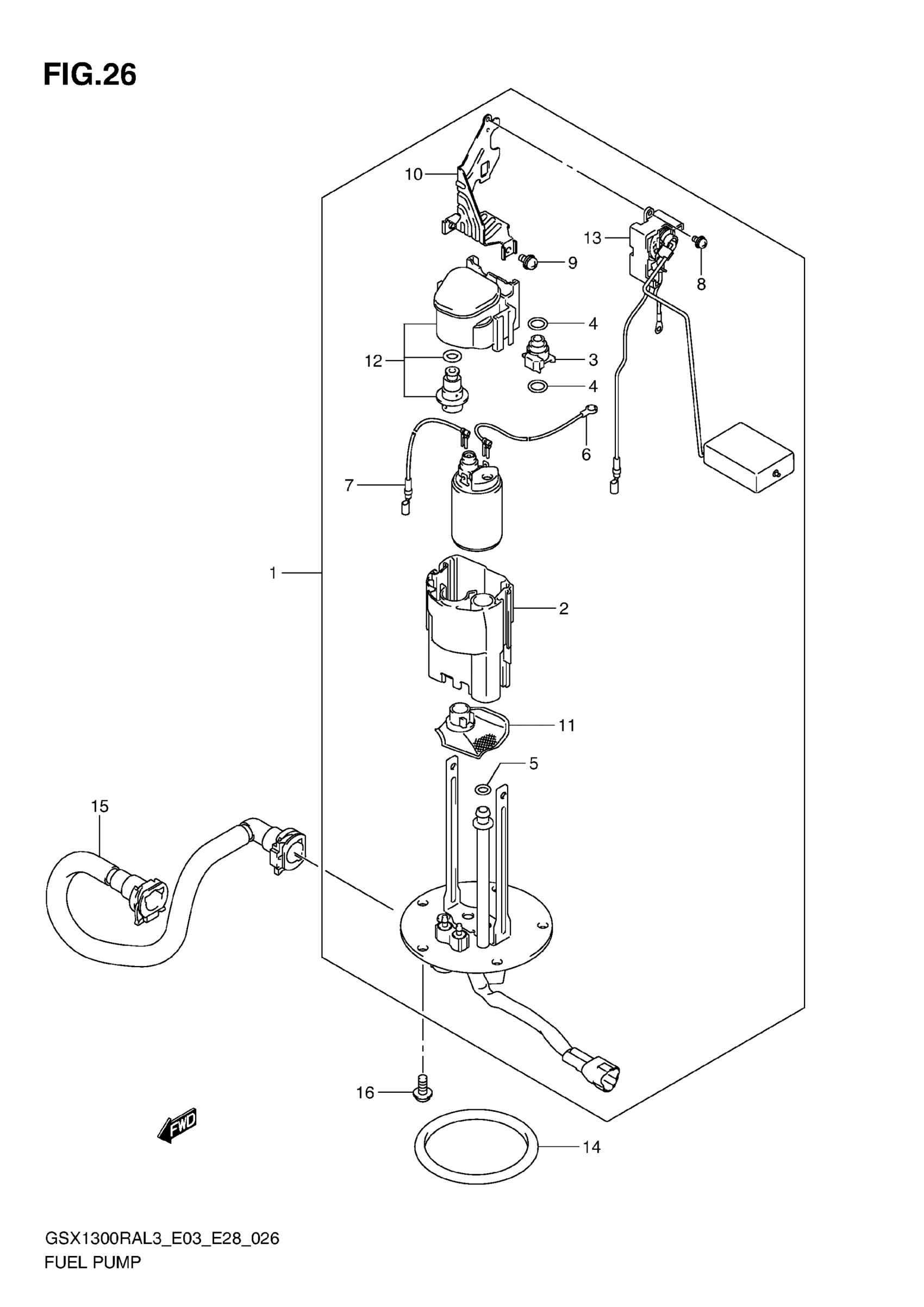

Suzuki GSX1300RAL3 (2013) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL This part replaces 15100-15H10.

15100-15H11

$628.78

2

CUP, RESERVOIR

15111-27G00

$42.43

3

JOINT

15112-05H00

$28.12

4

O RING

15113-05H00

$19.98

5

O RING

15113-35F00

$8.91

6

WIRE, EARTH

15114-14J00

Unavailable

7

.WIRE,LEAD

15115-08J00

Unavailable

8

SCREW

15116-10F10

Unavailable

9

SCREW

15116-10F00

$5.58

10

BRACKET, GAUGE

15181-15H10

Unavailable

11

STRAINER

15420-05H00

$41.17

12

REGULATOR

15610-14J00

$171.30

13

GAUGE ASSY, FUEL LEVEL

34810-15H10

$209.25

14

O-RING

15201-35F00

$27.60

15

HOSE, FUEL

15810-15H10

$71.28

16

BOLT

07120-0612A

$2.50
