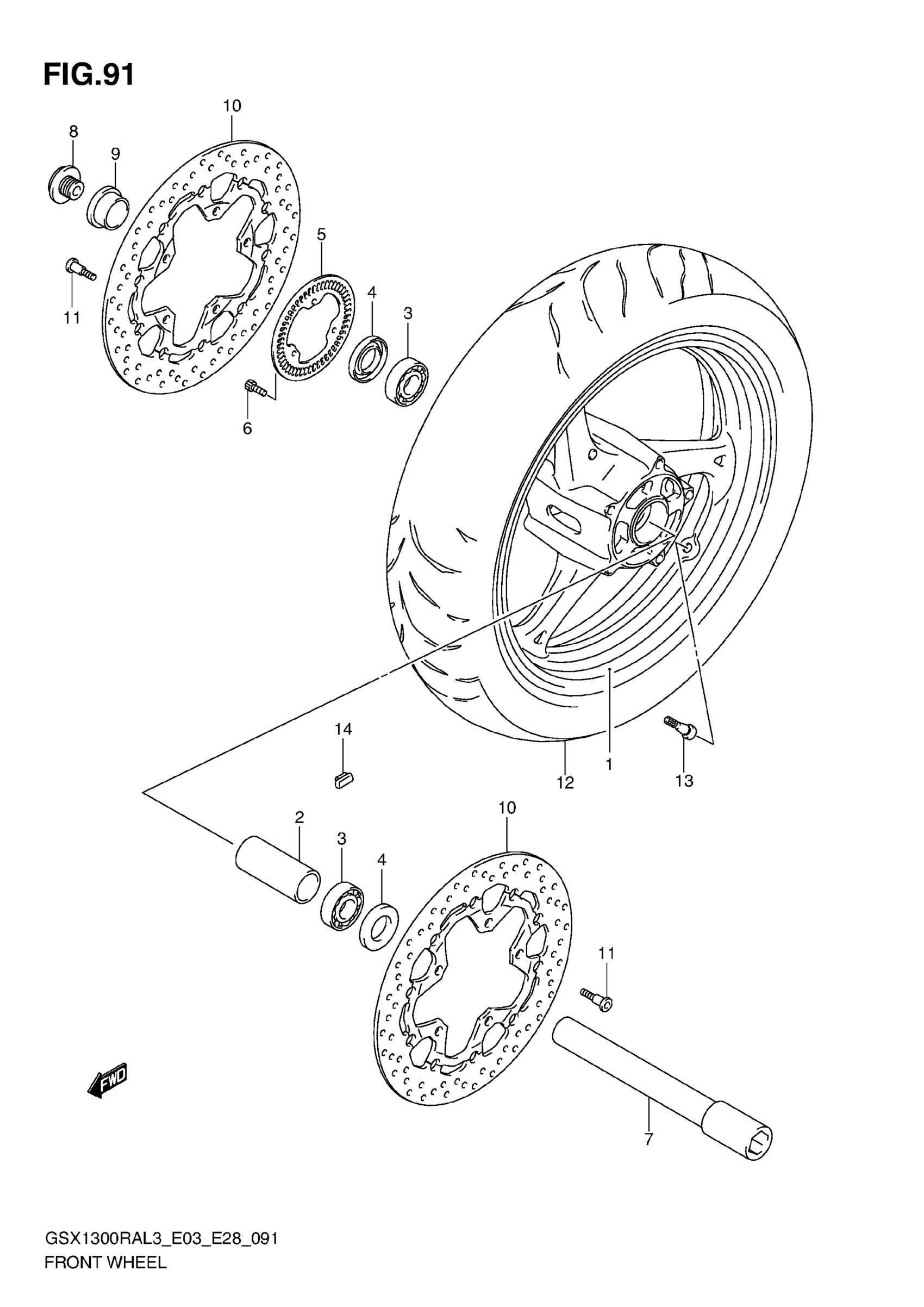

Suzuki GSX1300RAL3 (2013) FRONT WHEEL (GSX1300RAL3 E03) Diagram

WHEEL, FRONT (17M/CXMT3.50) | FOR YVB,YHL This part replaces 54111-15H10-019.

54111-15H11-019

$813.12

SPACER, HUB BEARING

54731-33E20

$49.02

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$24.28

.SEAL,OIL (32X52X7)

09285-32004

$7.98

RING, SPEED SENSOR FR (50T)

54162-27G00

$140.15

BOLT

07130-0512A

$2.19

AXLE, FRONT

54711-15H00

$164.72

BOLT, FRONT AXLE

54712-41G10

$16.19

SPACER, FRONT AXLE, RH

54751-41G10

$19.66

DISC, FRONT BRAKE

59210-15H10

$280.90

BOLT (8X21)

09106-08160

$3.57

TIRE, FRONT This part replaces 55110-24F60.

55110-24F70

$377.18

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER, WHEEL NO.1 (10G)

55411-22H00

$8.60

BALANCER, WHEEL NO.2 (20G)

55412-22H00

$10.07

BALANCER, WHEEL NO.3 (30G)

55413-22H00

$11.47
