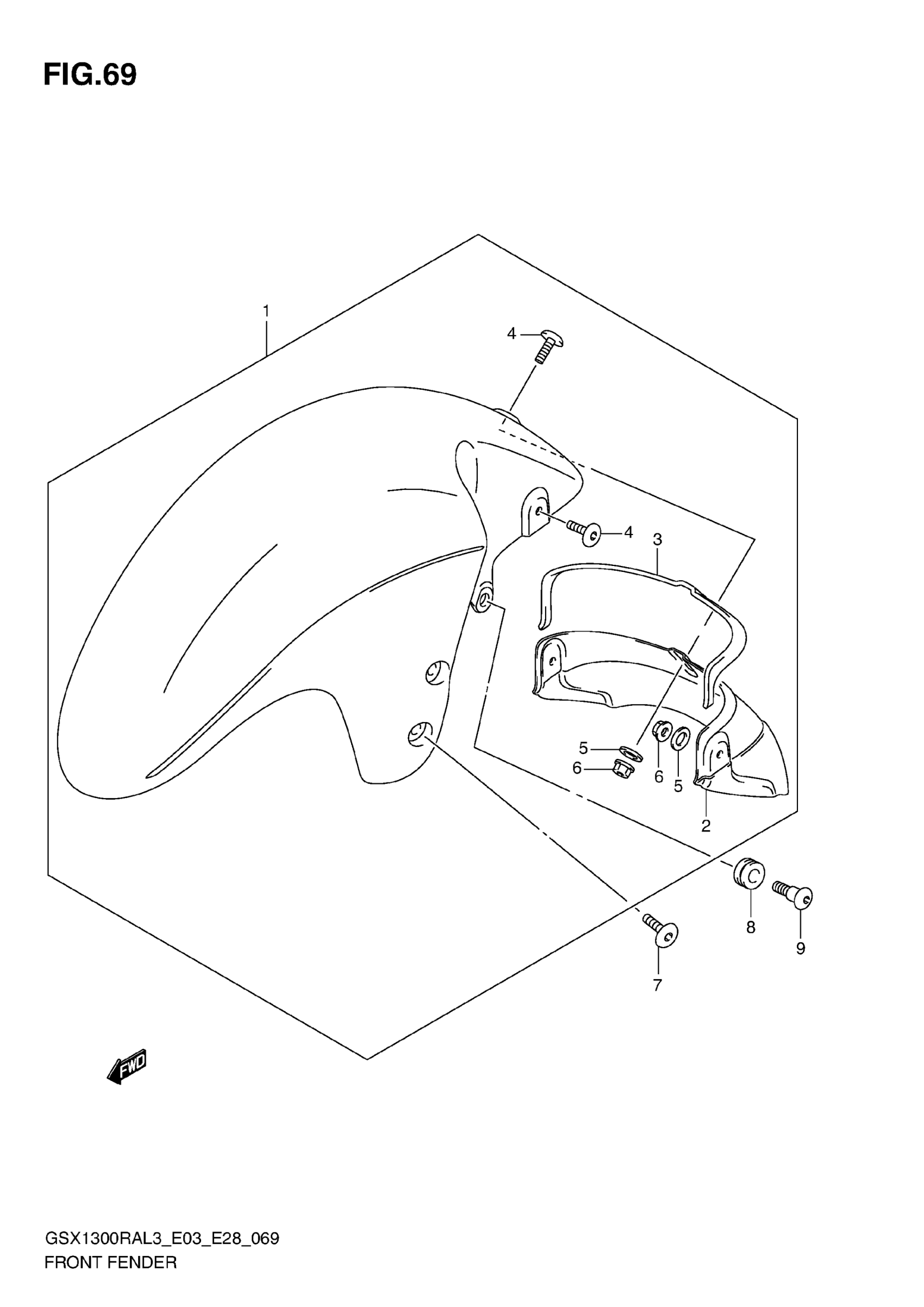

Suzuki GSX1300RAL3 (2013) FRONT FENDER (GSX1300RAL3 E28) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW) | FOR KGK

53100-15H00-YMF

$357.10

1

FENDER, FRONT (WHITE) | FOR AJN

53100-15H00-YWW

$353.82

1

FENDER, FRONT (BLACK) | FOR AJM

53100-15H00-YVB

$347.27

2

MUDGUARD, FRONT FENDER

53331-15H00

$34.07

3

CUSHION

94424-05H00

$5.88

4

SCREW (6X16)

09139-06129

$3.16

5

WASHER (6.5X16X1)

09160-06129

$2.30

6

NUT

08319-3106A

$2.03

7

SCREW (6X16)

09139-06131

$2.93

8

CUSHION

09320-09016

$1.97

9

SCREW (6X16)

09139-06146

$2.95
