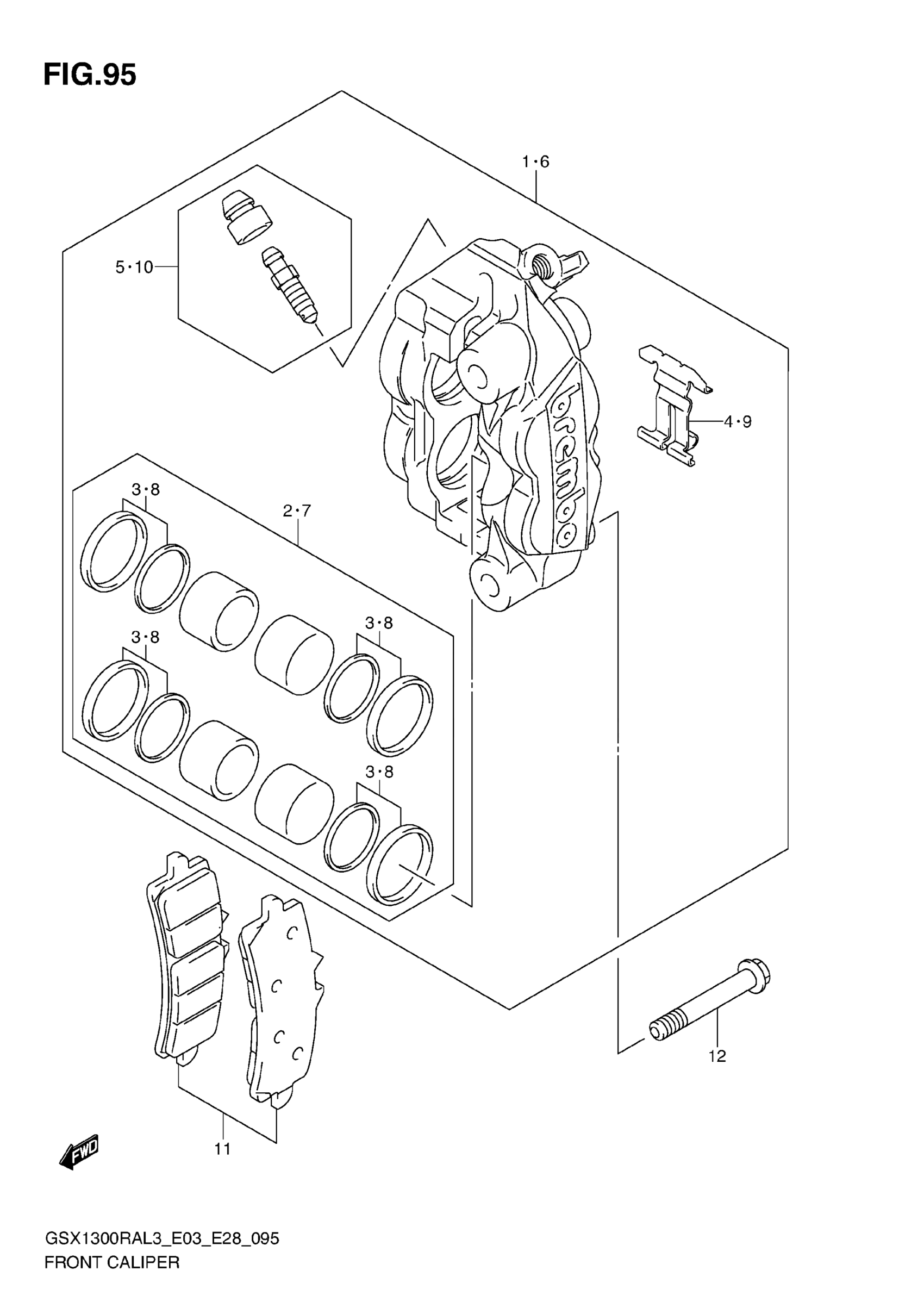

Suzuki GSX1300RAL3 (2013) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, FRONT RH This part replaces 59100-14J20-999.

59100-14J10-999

$707.55

2

PISTON SET

59100-14810

$101.95

3

SEAL SET, PISTON

59100-14820

$63.34

4

SPRING, PAD

59151-14J00

$23.43

5

BLEEDER SET

59100-14840

$25.21

6

CALIPER ASSY, FRONT LH This part replaces 59300-14J20-999.

59300-14J10-999

$707.55

7

PISTON SET

59100-14810

$101.95

8

SEAL SET, PISTON

59100-14820

$63.34

9

SPRING, PAD

59151-14J00

$23.43

10

BLEEDER SET

59100-14840

$25.21

11

PAD SET (T:4.0)

59100-14860

$149.78

12

BOLT (10X70)

09103-10450

$4.90
