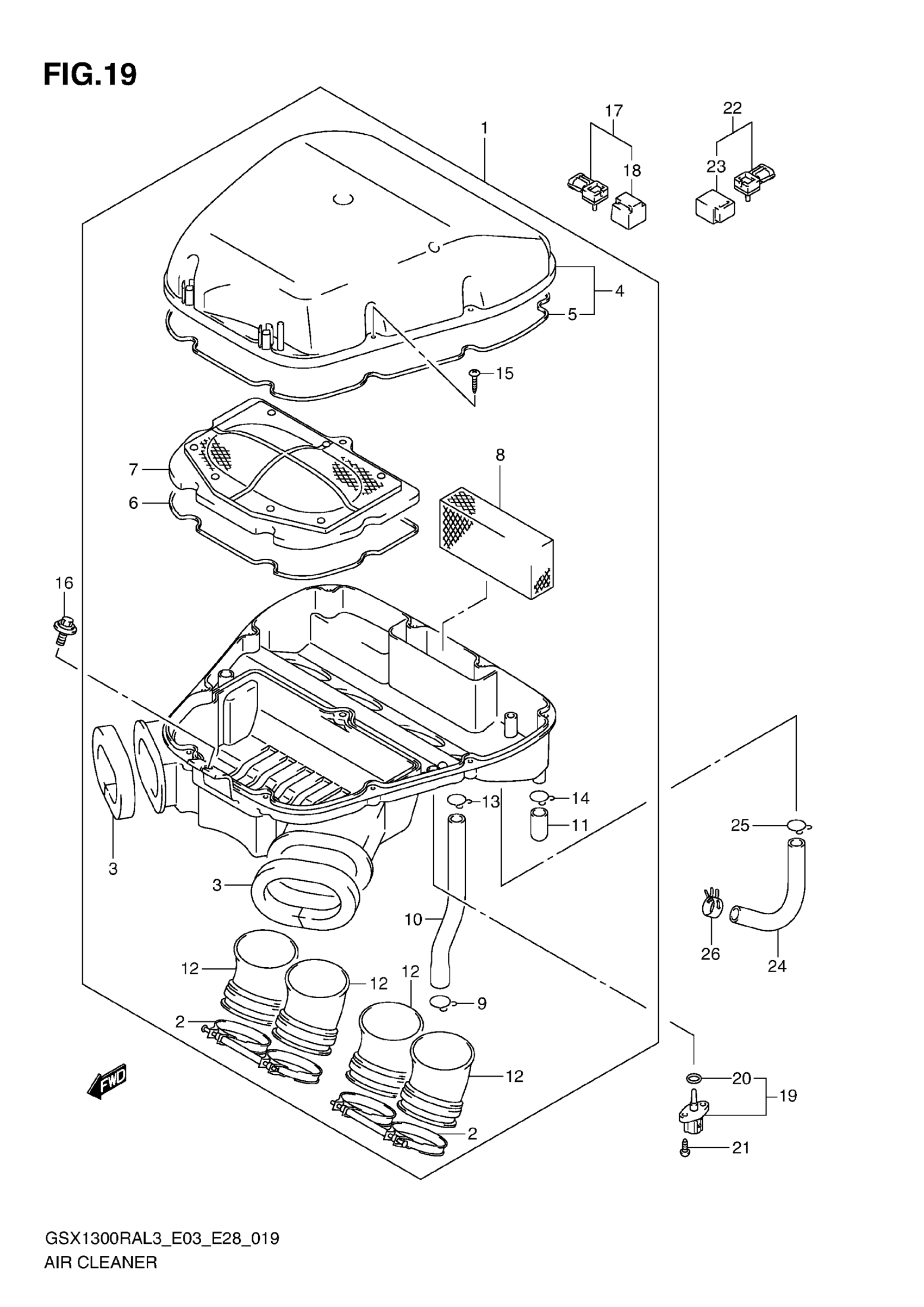

Suzuki GSX1300RAL3 (2013) AIR CLEANER (GSX1300RAL3 E03) Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-15H01

$461.53

2

CLAMP

13170-15H10

$27.09

3

CUSHION, DUCT

13736-15H01

$9.83

4

CAP, AIR CLEANER

13740-15H00

$95.10

5

GASKET, CAP

13746-15H00

$11.83

6

GASKET, CASE

13756-15H00

$8.60

7

FILTER ASSY

13780-15H00

$46.45

8

FILTER, BREATHER

13788-15H00

$5.02

9

CLIP

09401-16401

$3.14

10

TUBE,BREATHER This part replaces 13853-15H00.

13853-15H01

$10.45

11

.PLUG

13859-41B10

$7.38

12

TUBE,OUTLET B This part replaces 13882-41G00.

13882-41G01

$24.25

13

CLIP

09401-14301

$2.35

14

CLIP

09401-14301

$2.35

15

SCREW

03541-0525B

$2.32

16

BOLT (6X16)

09116-06130

$2.28

17

SENSOR,BOOST

15630-29G40

$307.68

18

COVER

15625-29G40

Unavailable

19

SENSOR, AIR TEMPERATURE

13650-14G10

$52.06

20

O RING

13655-14G10

$9.90

21

SCREW

03511-0516A

$1.86

22

SENSOR, AIR PRESSURE

15630-29G30

$307.68

23

COVER

15625-29G30

Unavailable

24

HOSE, ISC VALVE

13697-15H00

Unavailable

25

CLIP

09401-15101

$2.26

26

CLIP

09401-16403

$2.83
