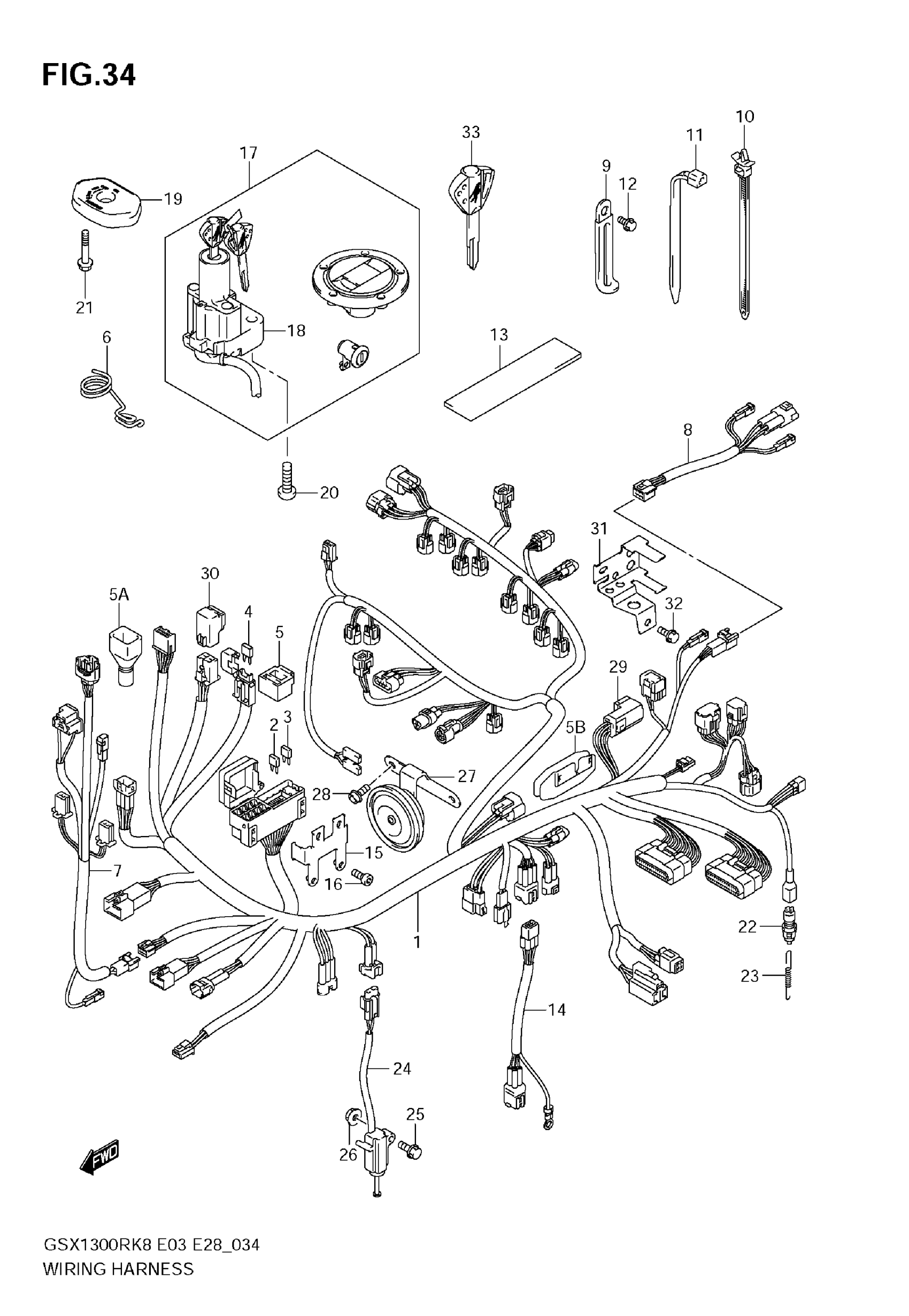

Suzuki GSX1300R (2009) WIRING HARNESS Diagram

HARNESS,WIRING This part replaces 36610-15H30.

36610-15H31

$978.87

HARNESS, WIRING | E33; Includes Item(s) 2 - 5B

36610-15H40

Unavailable

FUSE (10A)

09481-10501

$2.06

FUSE (15A)

09481-15501

$2.02

FUSE (15A)

09481-15101

$2.53

HOLDER

36742-39D00

$19.15

BOOT, METER

36618-33E00

$8.77

PROTECTOR

36611-24F00

Unavailable

GUIDE, WIRING HARNESS

36619-15H00

Unavailable

HARNESS,WIRING This part replaces 36620-15H00.

36620-15H01

$134.07

WIRE,RR COMB This part replaces 36857-15H00.

36857-15H01

$33.51

CLAMP (L:45)

09404-06429

$1.83

CLAMP (L:135)

09404-06435

$3.68

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

CLAMP (L:125)

09407-14403

$2.26

CLAMP (L:165)

09407-18402

$2.19

BOLT, WIRING HARNESS

01550-0610A

$1.97

PROTECTOR, WIRING HARNESS | 20X50X2.0

36920-45G00

$3.03

WIRE, O2 SENSOR

36855-15H00

$70.30

BRACKET, FUSE BOX

36744-24F00

Unavailable

BOLT, FUSE BOX

07120-0510B

$3.05

LOCK SET This part replaces 37000-15880.

37000-15881

Unavailable

LOCK SET | E33; Includes Item(s) 18 This part replaces 37000-15890.

37000-15891

$344.87

LOCK ASSY,STEER This part replaces 37100-15H30.

37100-15H31

Unavailable

COVER,STEERING LOCK This part replaces 37180-15H00.

37180-15HA0

$23.74

SCREW, STEERING LOCK (8X20)

09139-08016

$3.37

BOLT, IMMOBILIZER

01547-0530A

$2.12

SWITCH ASSY, STOP LAMP

37740-19F00

$31.28

SPRING

09443-06012

$3.16

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$58.63

BOLT (8X35)

09103-08357

$4.17

NUT, SIDE STAND

08316-1008B

$2.66

HORN ASSY

38500-24F00

$87.70

BOLT, HORN

01550-0612B

$2.39

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

BRACKET, FUEL PUMP RLY

38741-24F00

$8.77

BOLT, FUEL PUMP RLY

01550-0612B

$2.39

KEY, BLANK | OPT

37146-15H00

$51.62
